627859x43B - Yard King 27" Snow Thrower (2004) Wheels Parts Diagram

27" Snow Thrower

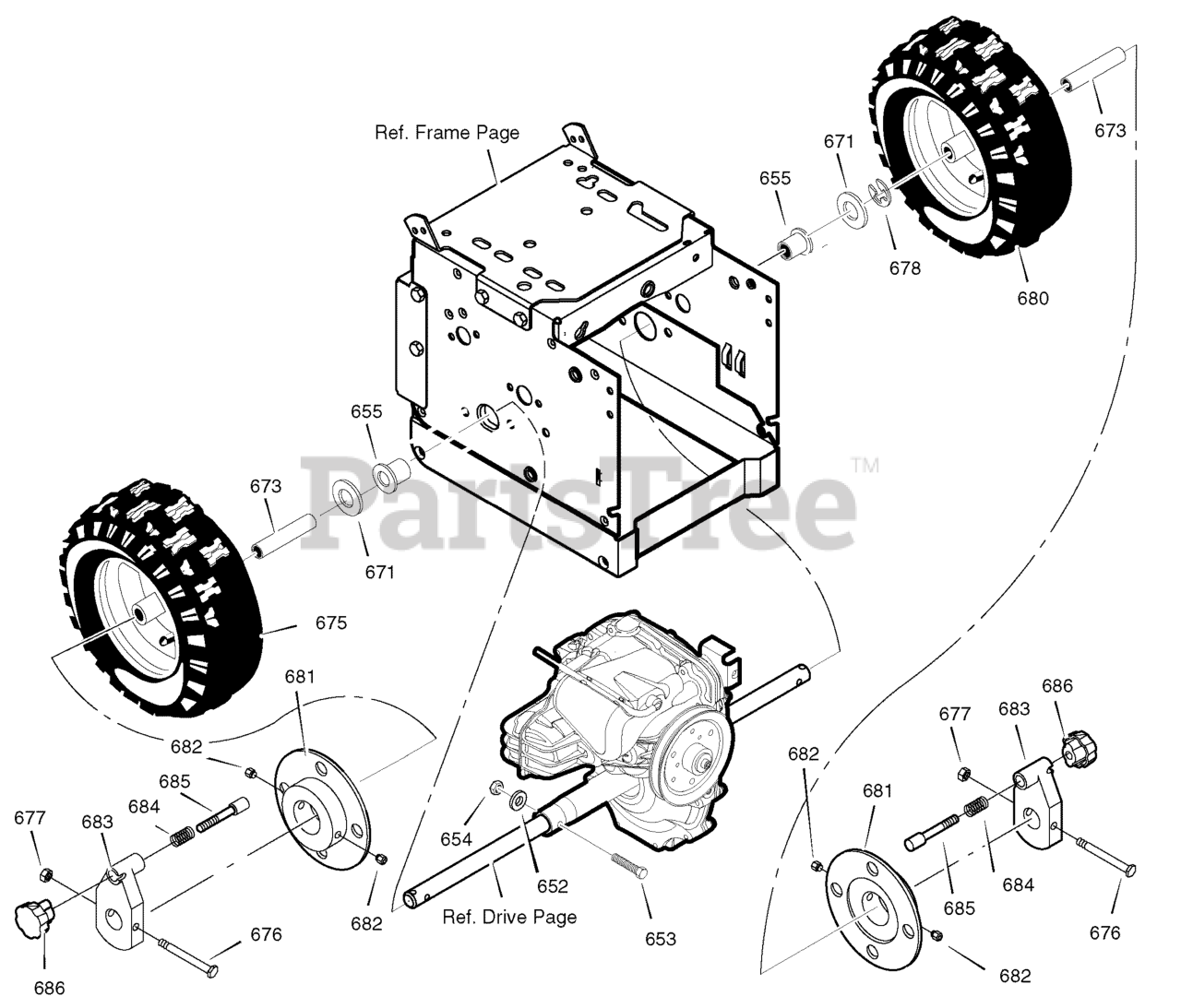

Wheels Parts Diagram

  • Title

652

Murray 3943

SPACER
(Superseded to 703058)

$7.49

$

In Stock, Qty 16

0

653

Murray 01X193

SCREW, 1/4-20X1.75
(Superseded to 704212)

$5.49

$

In Stock, Qty 9

0

654

Murray 15X145

NUT, 1/4-20

$4.49

$

In Stock, Qty 20+

0

655

Murray 1501114

BEARING, AXLE
(Superseded to 1501114MA)

$11.99

$

In Stock, only 2 left!

0

671

Murray 712120

FLATWASHER

$142.99

$

Usually ships in 2-12 days

0

673

Murray 1501138

BUSHING, WHEEL
(Superseded to 1501138MA)

$

$

Not available

675

Murray 1501836

TIRE & RIM, RIGHT

$

$

Not available

676

Murray 73839

SCREW, 1/4-20X2.25
(Superseded to 73839MA)

$5.49

$

In Stock, Qty 9

0

677

Murray 15X145

NUT, 1/4-20

$4.49

$

In Stock, Qty 20+

0

678

Murray 239

RING, RET
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

680

Murray 1501837

TIRE & RIM, LEFT

$

$

Not available

681

Murray 1501032E

DISC, WHEEL

$32.99

$

Usually ships in 2-12 days

0

682

Murray 2001066

SCREW
(Superseded to 2001066MA)

$5.49

$

In Stock, only 2 left!

0

683

Murray 1501930

HUB, WHEEL LOCK

$97.99

$

Usually ships in 2-12 days

0

684

Murray 164X34

Spring *
(Superseded to 164X34MA)

$5.99

$

In Stock, only 2 left!

0

685

Murray 1501856

YZ PIN, LOCK

Note: (Included with Ref. No. 683)

$

$

Currently unavailable

686

Murray 1501855

KNOB *
(Superseded to 1501855MA)

$13.99

$

In Stock, only 1 left!

0
