62902 - Lawn-Boy 31cc Gas Blower Vacuum (SN: 790000001 - 799999999) (1997) BLOWER ASSEMBLY Parts Diagram

31cc Gas Blower Vacuum

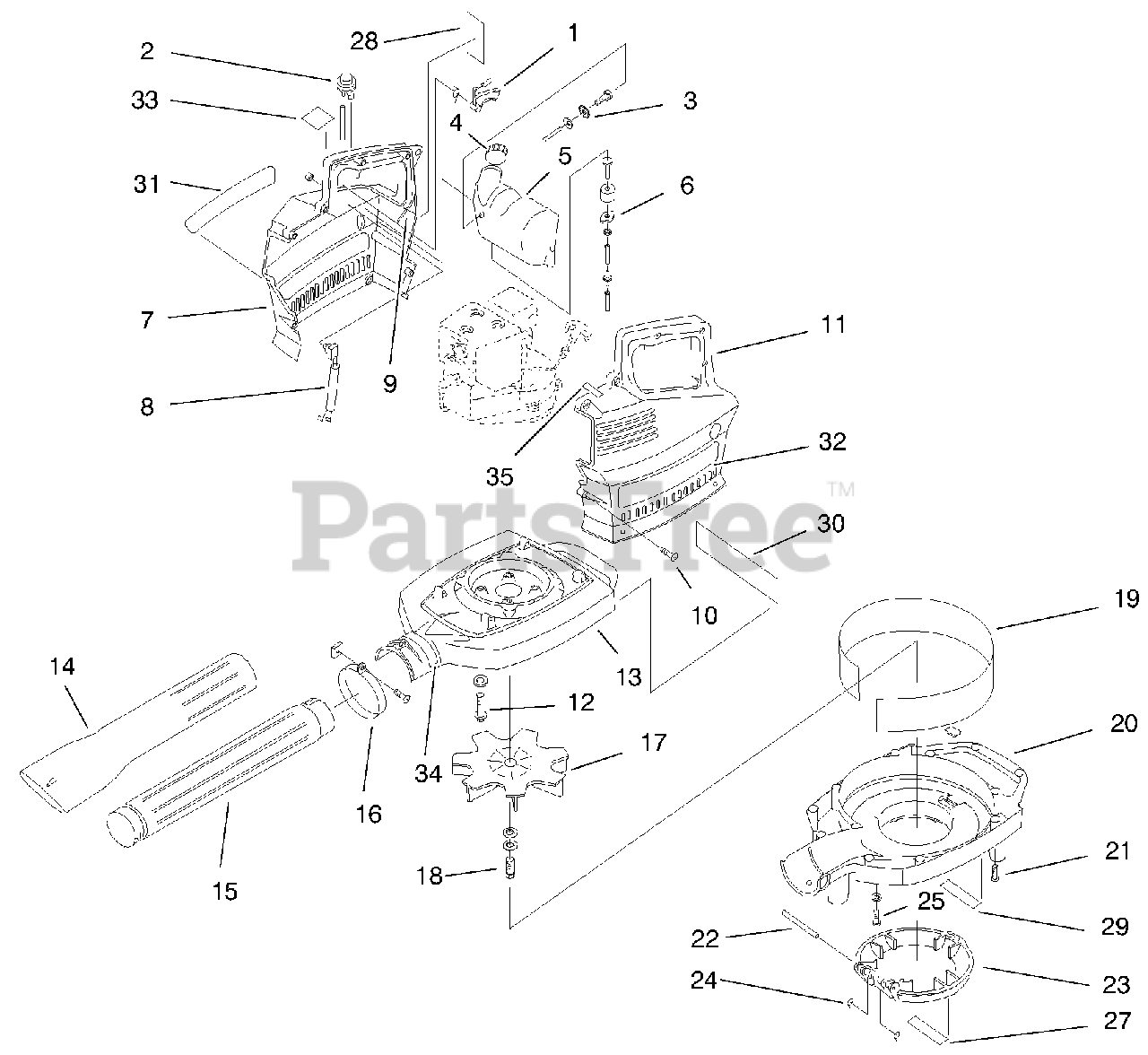

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 683400

Trigger Asm.

$

$

Not available

2

Lawn-Boy 147351

Primer Bulb and Hose Asm.

$

$

Not available

3

Lawn-Boy 181168

Return Line Asm.

$12.99

$

In Stock, only 3 left!

0

4

Lawn-Boy 180000

Fuel Cap Asm.

$

$

Not available

5

Lawn-Boy 147350

Complete Fuel Tank Asm. (Incl. Ref. #3, 4 and 6)

$76.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 183398

Fuel Line Asm.
(Superseded to 683398)

$

$

Not available

7

Lawn-Boy 181508

R.H. Engine Cover

$

$

Not available

8

Lawn-Boy 180450

Switch and Lead Asm.

$

$

Not available

9

Lawn-Boy 181513

Throttle Wire & Housing Asm.

$

$

Not available

10

Lawn-Boy 181345

Mounting Screw

$

$

Not available

11

Lawn-Boy 181509

L.H. Engine Cover

$

$

Not available

12

Lawn-Boy 180058

Mounting Screw Asm.

$12.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 180478

Upper Blower Housing

$102.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 180469

Blower Tube W/Nozzle

$42.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 180480

Blower Tube

$

$

Not available

16

Lawn-Boy 180481

Clamp Asm.

$

$

Not available

17

Lawn-Boy 147353

Impeller

$

$

Not available

18

Lawn-Boy 181514

Mounting Bolt Asm.

$

$

Not available

19

Lawn-Boy 181586

Impact Shield

$

$

Not available

20

Lawn-Boy 180487

Lower Blower Housing

$

$

Not available

21

Lawn-Boy 181345

Mounting Screw

$

$

Not available

22

Lawn-Boy 181516

Hinge Shaft

$

$

Not available

23

Lawn-Boy 181523

Intake Cover

$

$

Not available

24

Lawn-Boy 147051

Spring Set

$

$

Not available

25

Lawn-Boy 181515

Mounting Screw Asm.

$

$

Not available

27

Lawn-Boy 5825

Decal-Warning

$

$

Not available

28

Lawn-Boy 4474

Decal-69 DBA ANSI
(Superseded to 92-3330)

$

$

Not available

29

Lawn-Boy 5828

Decal-Push Tab

$

$

Not available

30

Lawn-Boy 92-3334

Decal-Fuel & Oil Mix
(Superseded to 95-5082)

$

$

Not available

31

Lawn-Boy 6404

Decal-Toro R.H.

$

$

Not available

32

Lawn-Boy 6406

Decal-Toro L.H.
(Superseded to 92-3348)

$

$

Not available

33

Lawn-Boy 92-3331

Decal-Prime

$

$

Not available

34

Lawn-Boy 92-3328

Decal-Safety Symbol
(Superseded to 95-5297)

$

$

Not available

35

Lawn-Boy 92-3332

Decal-Warning
(Superseded to 95-5084)

$

$

Not available

Lawn-Boy 682075

Shoulder Strap

Note: Not Illustrated

$

$

Not available
