62902 - Lawn-Boy 31cc Gas Blower Vacuum (SN: 790000001 - 799999999) (1997) ENGINE ASSEMBLY Parts Diagram

31cc Gas Blower Vacuum

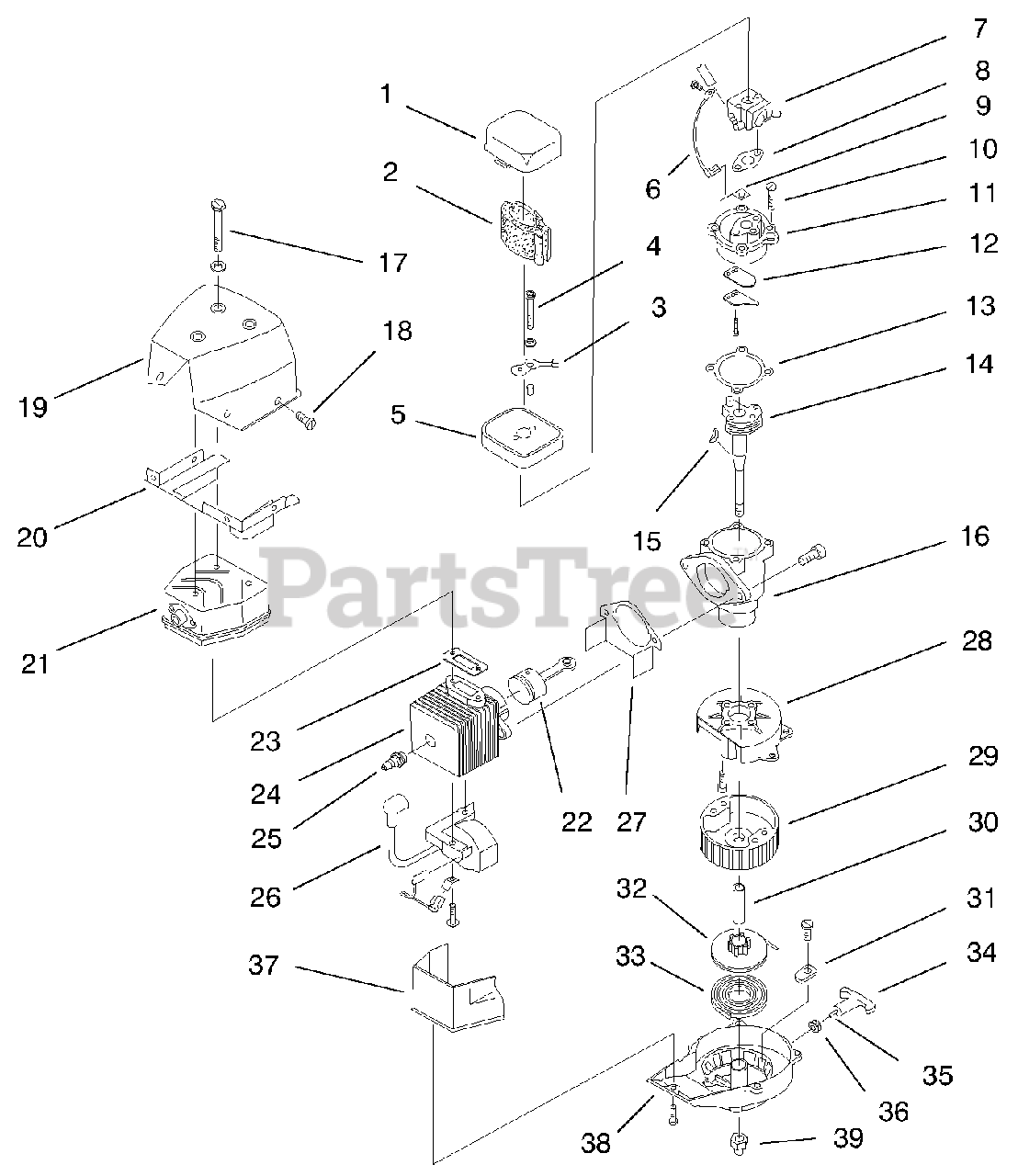

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 683378

Air Cleaner Cover Asm.

$

$

Not available

2

Lawn-Boy 612111

Air Cleaner Filter

$

$

Not available

3

Lawn-Boy 683380

Choke Lever Asm.

$

$

Not available

4

Lawn-Boy 180351

Mounting Bolt Asm.

$

$

Not available

5

Lawn-Boy 181512

Air Cleaner Base

$

$

Not available

6

Lawn-Boy 180360

Wire Lead

$

$

Not available

7

Lawn-Boy 180527

Carburetor
(Superseded to 181621)

$

$

Not available

8

Lawn-Boy 610675

Carburetor Gasket

$6.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 611063

Ground Tab

$

$

Not available

10

Lawn-Boy 683384

Reed Plate Mounting Screw

$

$

Not available

11

Lawn-Boy 684757

Complete Reed Plate Asm.

$

$

Not available

12

Lawn-Boy 147611

Reed Asm.

$

$

Currently unavailable

13

Lawn-Boy 612115

Reed Plate Gasket

$

$

Not available

14

Lawn-Boy 181510

Crank Shaft Asm.

$

$

Not available

15

Lawn-Boy 610676

Flywheel Key

$

$

Not available

16

Lawn-Boy 181511

Crankcase Service Asm. (Incl. Ref. #10, 13-16)

$

$

Not available

17

Lawn-Boy 147575

Muffler Mounting Bolt

$

$

Not available

18

Lawn-Boy 181517

Mounting Screw Asm.

$

$

Not available

19

Lawn-Boy 181522

Upper Heat Shield

$

$

Not available

20

Lawn-Boy 181518

Lower Heat Shield

$

$

Not available

21

Lawn-Boy 181521

Muffler Asm.

$

$

Not available

22

Lawn-Boy 684449

Piston and Rod Asm.
(Superseded to 753-04367)

$192.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 610672

Exhaust Gasket
(Superseded to 180980)

$7.49

$

In Stock, only 1 left!

0

24

Lawn-Boy 180063

Cylinder Asm.
(Superseded to 181622)

$

$

Not available

25

Lawn-Boy 610311

Spark Plug

$3.49

$

In Stock, only 1 left!

0

26

Lawn-Boy 683390

Module Asm.
(Superseded to 181937)

$157.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 181519

Cylinder Gasket

$

$

Not available

28

Lawn-Boy 153520

Shroud Asm.

$

$

Not available

29

Lawn-Boy 180929

Flywheel Asm.

$

$

Not available

30

Lawn-Boy 181525

Spacer

$

$

Not available

31

Lawn-Boy 682546

Pulley Retainer Asm.
(Superseded to 153644)

$

$

Not available

32

Lawn-Boy 683856

Recoil Pulley Asm.

$

$

Not available

33

Lawn-Boy 613102

Recoil Spring

$20.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 610300

Pull Handle
(Superseded to 181079)

$14.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 613103

Rope

$

$

Not available

36

Lawn-Boy 611061

Rope Guide

$

$

Not available

37

Lawn-Boy 181585

Shroud Extension

$

$

Not available

38

Lawn-Boy 683600

Starter Housing Asm.
(Superseded to 181931)

$

$

Not available

39

Lawn-Boy 181524

Crankshaft Extension

$

$

Not available

Lawn-Boy 180530

Piston Ring

Note: Not Illustrated

$

$

Not available

Lawn-Boy 181520

Engine Gasket Kit

Note: Not Illustrated

$

$

Not available

Lawn-Boy 153308

Carb. Repair Kit (Walbro)
(Superseded to 180602)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180090

Carb. Repair Kit (Zama)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 181069

Gasket Repair Kit (Walbro)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180091

Gasket Repair Kit (Zama)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 682048

Throttle Adj. Asm. (Walbro)

Note: Not Illustrated

$10.99

$

Usually ships in 3-6 days

0

Lawn-Boy 180092

Throttle Adj. Asm. (Zama)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180986

Carb. Limiter Set (Walbro)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 181562

Carb. Limiter Set (Zama)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 610309

Crankcase Seal

Note: Not Illustrated

$

$

Not available
