63713 - Lawn-Boy 38" Grass Catcher (SN: J00000001 - J99999999) (1990) 38" GRASS CATCHER PARTS LIST Parts Diagram

38" Grass Catcher

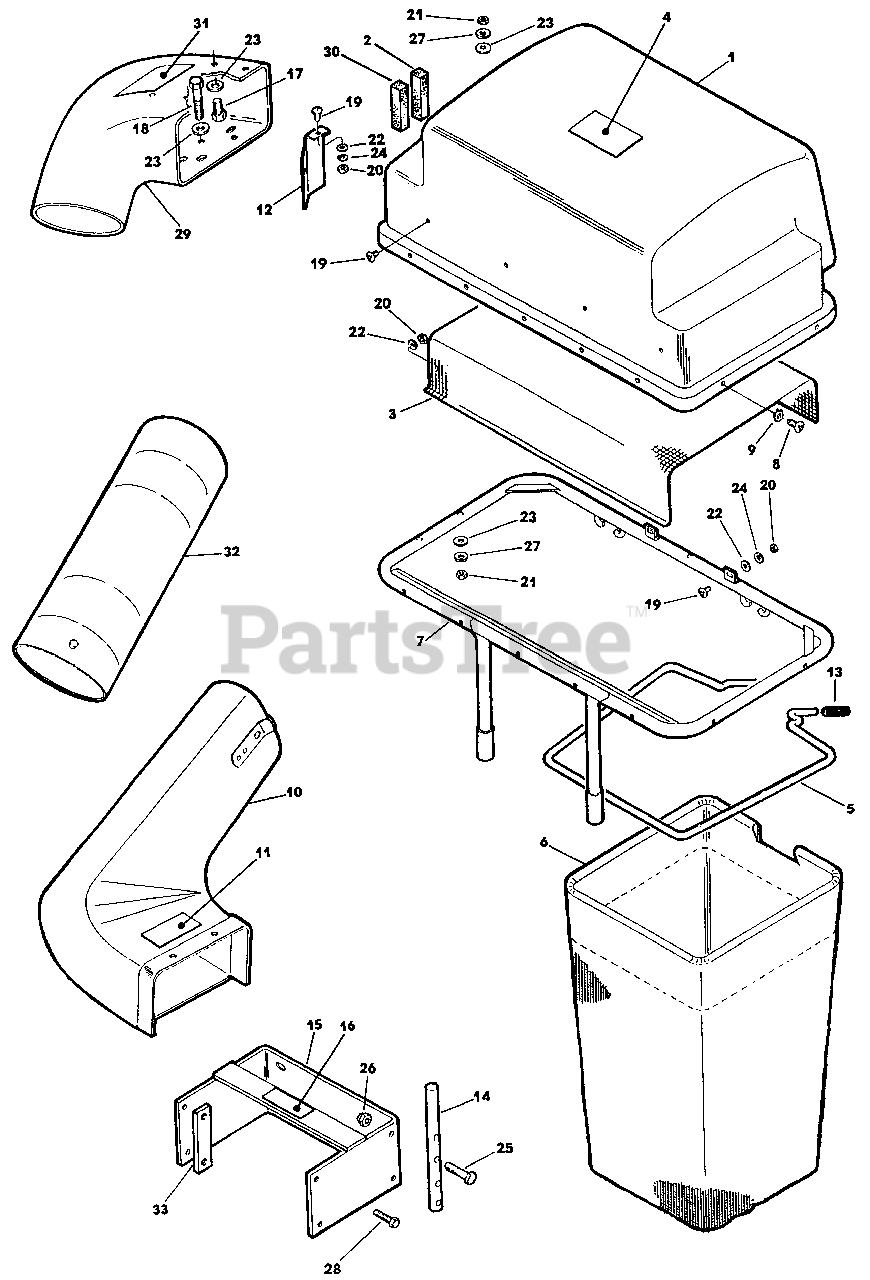

38" GRASS CATCHER PARTS LIST Parts Diagram

  • Title

1

Lawn-Boy 740877

Cover Ass'y. w/Decal (Includes Cover, Decal, Screen And One Foam Pad)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 702340

Foam Pad

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

3

Lawn-Boy 702341

Screen

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. To replace screen, substitute #10-24x5/8 (Ref. No. 19), #10-24 Hex Nuts (Ref. No. 20), and flat washers (Ref. No 22) for rivets securing original screen to cover. Parts shown with bullet included with assembly above.

$

$

Not available

4

Lawn-Boy 702326

Decal-Warning

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

5

Lawn-Boy 702346

Grass Bag Frame

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$188.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 740800

Grass Bag

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$274.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 740797

Hanger Assembly

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 702331

Screw, Self Tapping

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 702332

Lock Washer, External Tooth

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 740878

Adaptor Assembly w/Decal

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 146468

Decal-Danger

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

12

Lawn-Boy 702477

Shield

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 702328

Grip

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 702479

Mounting Bar

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 740888

Mounting Bracket w/Decal

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 700797

Decal-Warning

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

17

Lawn-Boy 146249

Cap Screw, Hex Hd
(Superseded to 321-4)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 146261

Cap Screw, Hex Hd

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 702330

Machine Screw, #10-24 x 5/8"

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 146510

Nut, #10-24 Hex

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 146254

Nut, Hex

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 146502

Washer, Flat
(Superseded to 607875)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 146251

Washer, Flat

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 146276

Washer, Spring Lock

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 146504

Cap Screw, Hex Hd

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 700032

Nut, Hex Cone Lock

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 146252

Washer, Lock
(Superseded to 3253-3)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 701243

Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 740882

Chute Extension w/Decal

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 702340

Foam Pad

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

31

Lawn-Boy 146468

Decal-Danger

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

32

Lawn-Boy 702486

Tube

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 702481

Spacer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
