66220 T - Toro Revolution 60V Hedge Trimmer (SN: 323000001 - 323999999) (2023) Revolution 60V Hedge Trimmer Assembly Parts Diagram

Revolution 60V Hedge Trimmer

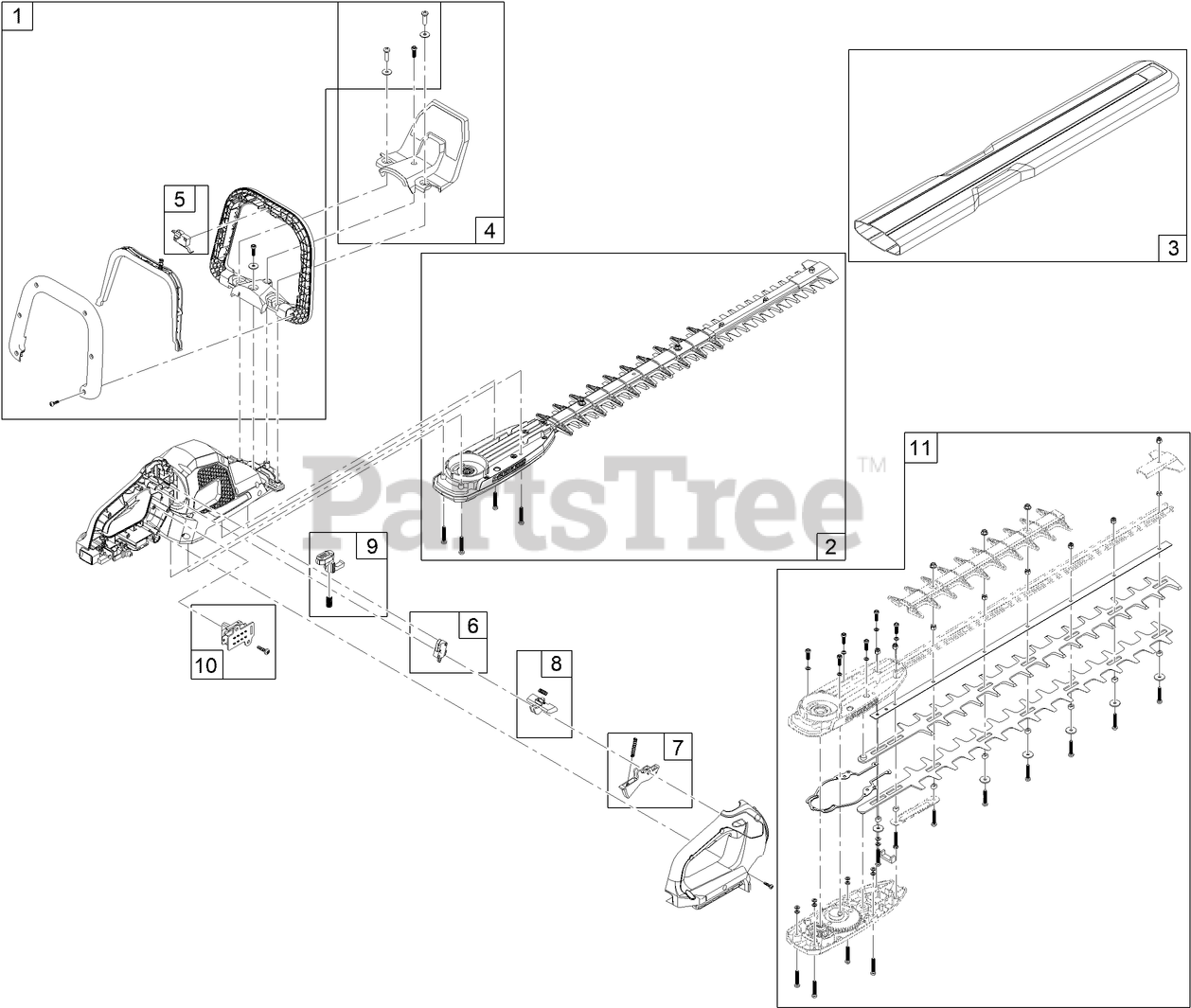

Revolution 60V Hedge Trimmer Assembly Parts Diagram

  • Title

1

Toro 147-1844

ASSIST HANDLE ASM

$18.99

$

0

2

Toro 147-1845

BAR, BLADES AND GEAR CASE ASM

$385.99

$

0

3

Toro 147-1846

COVER-BAR

$14.99

$

0

4

Toro 147-1847

GUARD ASM

$9.99

$

0

5

Toro 147-1848

SWITCH-ASSIST HANDLE

$10.99

$

0

6

Toro 147-1851

SWITCH-MOTOR

$10.99

$

0

7

Toro 147-1852

TRIGGER-SPRING ASM

$7.49

$

0

8

Toro 147-1853

TRIGGER-SLIDE LOCK ASM

$7.49

$

0

9

Toro 147-1854

BUTTON-HANDLE ROTATION ASM

$

$

Currently unavailable

10

Toro 147-1875

SWITCH-SPEED CONTROL ASM

$15.99

$

0

11

Toro 147-1884

HEDGE TRIMMER BLADES KIT

$

$

Currently unavailable
