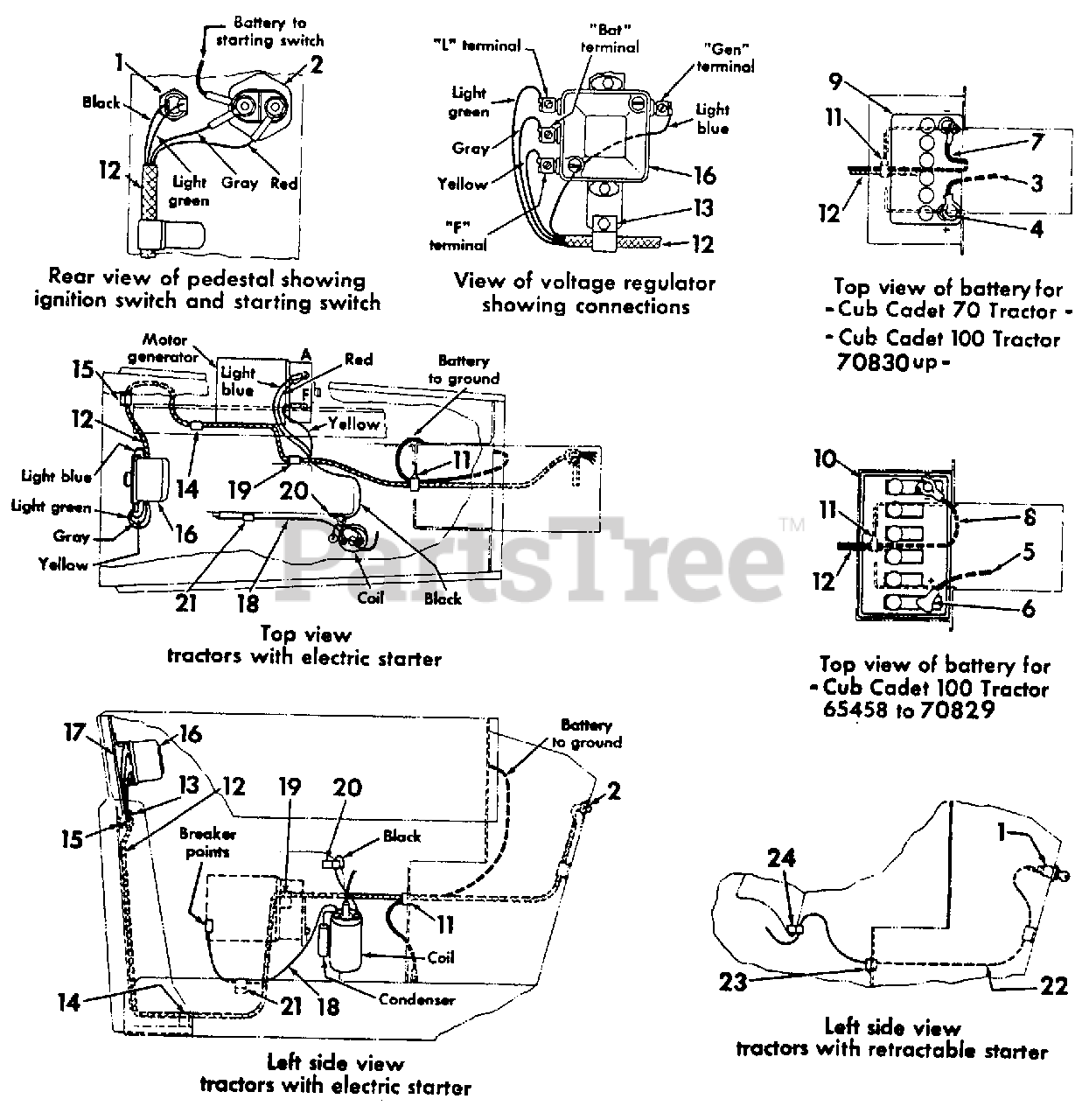

70 - Cub Cadet Garden Tractor Ignition & Starting Parts Diagram

Garden Tractor

Ignition & Starting Parts Diagram

  • Title

1

Cub Cadet IH-403562-R2

Switch Assy, Ignition (Unit A)
(Superseded to IH-403562-R3)

$

$

Not available

Cub Cadet IH-379593-R92

Switch Assy, Ignition (Unit B)

$

$

Currently unavailable

Cub Cadet IH-365502-R1

Nut, Switch Mounting

$10.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-375431-R1

Washer, Switch Mounting

$11.99

$

In Stock, only 1 left!

0

2

Cub Cadet IH-376295-R91

Switch Assy, Starting (Unit A)

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.49

$

In Stock, Qty 20+

0

Nut, 5/16-24 C-Z Hex Jam

$

$

Not available

y

Screw, 1/4-20 X 3/4 C-Z Slt Pan Hd Mach

$

$

Not available

Cub Cadet 736-0329

Washer, 1/4 C-Z Med Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet 736-3020

Washer, 17/64 X 5/8 X .049 C-Z

$6.49

$

In Stock, Qty 9

0

Cub Cadet 736-0119

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet IH-376287-R92

Cable Assy, Battery to Starting Switch (Unit A)
(Superseded to IH-376287-R93)

$

$

Not available

Cub Cadet 710-0451

Bolt, 5/16-18 X 3/4 C-Z Crg

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-0267

Nut, 5/16-18 C-Z Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet IH-364910-1

Cover, Battery Terminal (Unit A)

$

$

Currently unavailable

5

~NLA

Cable w/Bolt and Cover, Battery to Starting Switch (Unit A)

$

$

Not available

Cub Cadet IH-120512-HX

Bolt Assy, Battery Terminal (Unit A)

$

$

Currently unavailable

6

Cub Cadet IH-383618-R1

Cover, Battery Terminal (Unit A)

$

$

Not available

7

Cub Cadet IH-384924-R91

Cable Assy, Battery to Ground (Unit A)

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-3015

Screw, 1/4-20 X 3/4 C-Z Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0329

Washer, 1/4 C-Z Med Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet 736-3020

Washer, 17/64 X 5/8 X .049 C-Z

$6.49

$

In Stock, Qty 9

0

8

Cub Cadet IH-384924-R91

Cable w/Bolt Assy, Battery to Ground (Unit A)

$

$

Not available

Cub Cadet IH-120512-HX

Bolt Assy, Battery Terminal

$

$

Currently unavailable

9

Cub Cadet IH-PRLU

Battery, Prestolite 9948X, 12 Volt
(Superseded to 925-1707D)

Note: (Cub Cadet 100)

$

$

Not available

10

Cub Cadet IH-PRLU

Battery, Prestolite 2481X, 12 Volt
(Superseded to 925-1707D)

Note: (Cub Cadet 100)(Serial No. 65458 to 70829)(Unit A)

$

$

Not available

11

Cub Cadet IH-363660-R1

Clip, Cable Harness (Unit A)

$

$

Currently unavailable

Nut, 3/8-16 Hex

$

$

Not available

Screw, 3/8-16 X 3/4 Hex Hd Cap

$

$

Not available

Washer, 3/8 Med Lock

$

$

Not available

12

Cub Cadet IH-384923-R91

Harness Assy, Cable (Unit A)

$

$

Not available

13

Cub Cadet 726-3015

Clip, Cable Harness (Unit A)
(Superseded to 726-3008)

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet IH-370383-R1

Clip, Cable Harness (Unit A)

$

$

Not available

15

Cub Cadet IH-370821-R1

Clip, Cable Harness (Unit A)

$

$

Currently unavailable

16

Cub Cadet IH-121577-C1

Regulator Assy, Voltage (Unit A)
(Superseded to IH-121577-C2)

$203.99

$

Usually ships in 3-6 days

0

Cub Cadet 712-3006

Nut, 1/4-20 C-Z

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-3013

Screw, 1/4-20 X 1/2 C-Z Hex Hd Cap

$4.49

$

In Stock, only 2 left!

0

Cub Cadet 736-0329

Washer, 1/4 C-Z Med Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

17

Cub Cadet IH-384885-R1

Strap, Voltage Regulator Mounting (Unit A) Screw

Note: 1/4-20 X 1/2 Hex Hd Cap

$

$

Currently unavailable

18

Cable, Ignition Coil Negative Terminal to Braker Points

Note: (Furnished with engine) (Unit A)

$

$

Not available

19

Clip, Cable Harness

Note: (Furnished with engine) (Unit A)

$

$

Not available

20

Clip, Cable

Note: (Furnished with engine) (Unit A)

$

$

Not available

21

Clip, Cable

Note: (Furnished with engine) Unit A)

$

$

Not available

22

Cable, Ignition Switch to Magneto (Unit B)

$

$

Not available

23

Cub Cadet IH-363660-R1

Clip, Cable (Unit B)

$

$

Currently unavailable

Cub Cadet 712-0798

Nut, 3/8-16 Cd or Zn Pltd Hex

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3000

Screw, 3/8-16 X 3/4 Cd or Zn Pltd Hex Hd Cap
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

Cub Cadet 736-0169

Washer, 3/8 Cd or Zn Pltd Med Lock

$3.49

$

In Stock, Qty 20+

0

24

Clip, Cable

Note: (On LH lower fuel tank support bolt); (Furnished with engine) (Unit B)

$

$

Not available
