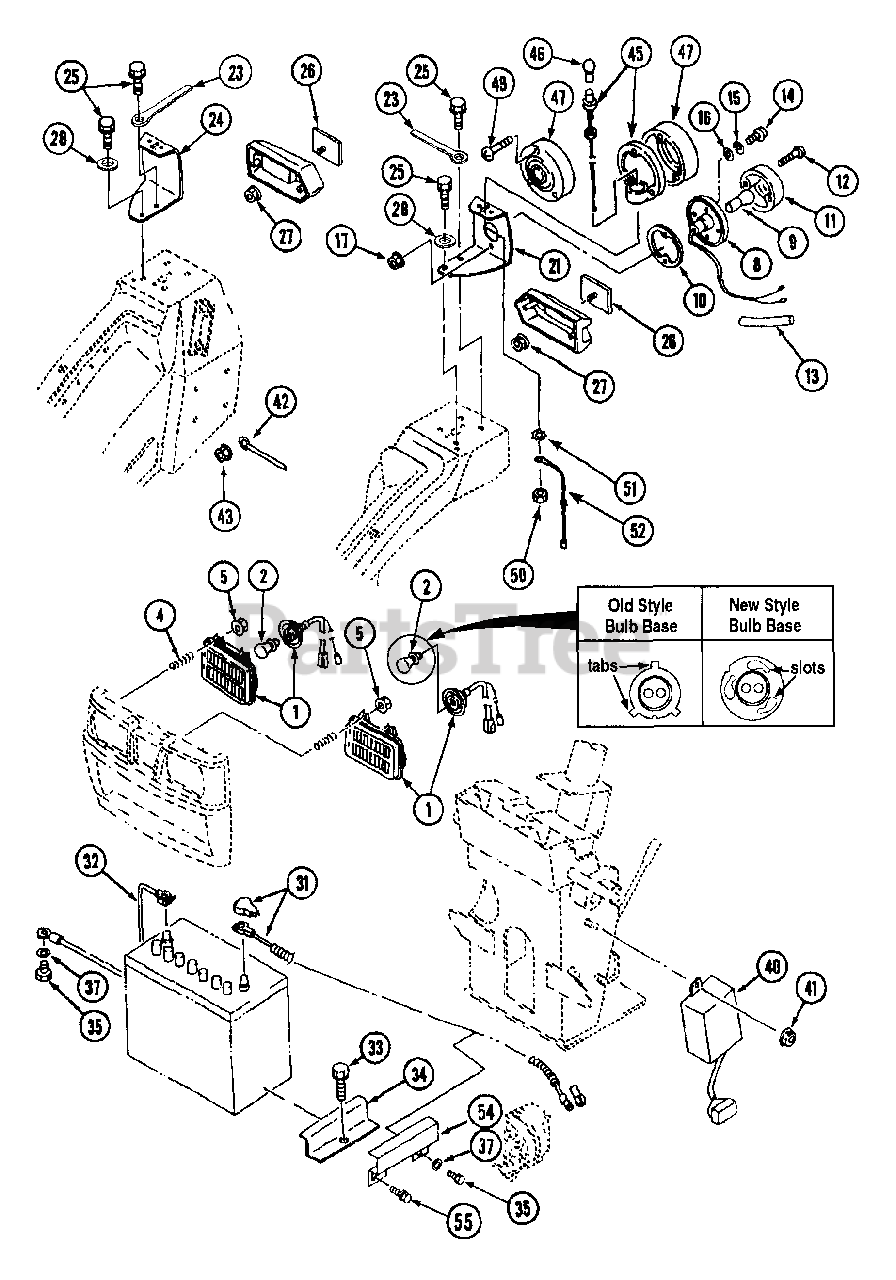

7000 (54A-413D100) - Cub Cadet Compact Tractor Electric System II Parts Diagram

Compact Tractor

Electric System II Parts Diagram

  • Title

1

Cub Cadet MA-10362811001

Lamp, Head

Note: Includes 2

$139.99

$

Usually ships in 3-6 days

0

2

Cub Cadet MA-67404-01720

Bulb

$

$

Not available

Cub Cadet MA-09808123509

Bulb

$20.99

$

In Stock, only 3 left!

0

4

Cub Cadet MA-10192849001

Spring

$

$

Not available

5

Cub Cadet MA-F3000105001

Nut, Flange

$

$

Not available

Cub Cadet MA-19822828000

Lamp, Tail Ass'y.

Note: Includes 8-16

$

$

Not available

8

Cub Cadet MA-19822822110

Socket
(Superseded to MA-19822828000)

$

$

Not available

9

Cub Cadet MA-19822822120

Bulb

$

$

Not available

10

Cub Cadet MA-19822822130

Gasket

$

$

Not available

11

Cub Cadet MA-19822822140

Lens

$

$

Not available

12

Cub Cadet MA-A2320103030

Screw

$

$

Not available

13

Cub Cadet MA-19831744000

Tube

$

$

Not available

14

Cub Cadet MA-A2420105012

Screw

$

$

Not available

15

Cub Cadet MA-A3600100502

Washer, Spring

$

$

Not available

16

Cub Cadet MA-03500120512

Washer

$

$

Not available

17

Cub Cadet MA-F3000105001

Nut

$

$

Not available

21

Cub Cadet MA-19632935AG1

Bracket, Lamp L.H.

$

$

Not available

23

Cub Cadet MA-00502113086

Clamp

$

$

Not available

24

Cub Cadet MA-19632936AG1

Bracket, Lamp R.H.

$

$

Not available

25

Cub Cadet MA-F1540108012

Bolt

$

$

Not available

26

Cub Cadet MA-10192279000

Reflector

$

$

Not available

27

Cub Cadet MA-F3000106001

Nut, Flange

$2.49

$

In Stock, only 2 left!

0

28

Cub Cadet MA-03500140818

Washer

$

$

Not available

31

Cub Cadet MA-19082987000

Cord Ass'y.

$

$

Not available

32

Cub Cadet MA-19042983000

Cord, Battery

$

$

Not available

33

Cub Cadet MA-F1540108016

Bolt

$

$

Not available

34

Cub Cadet MA-19632955AG0

Clamp, Battery

$

$

Not available

35

Cub Cadet MA-11792963000

FT Bolt

$

$

Not available

37

Cub Cadet MA-A3600100802

Washer

$

$

Not available

40

Cub Cadet MA-19672944000

Unit, Hazard

$

$

Not available

41

Cub Cadet MA-F3000106000

Nut

$

$

Not available

42

Cub Cadet MA-00502110083

Clamp

$

$

Not available

43

Cub Cadet MA-F3010108001

Nut

$

$

Not available

Cub Cadet MA-19672942000

Lamp, Signal

Note: Includes 45-51

$74.99

$

Usually ships in 3-6 days

0

45

Body Ass'y.

$

$

Not available

46

Cub Cadet MA-10356281200

Bulb
(Superseded to MA-35550901300)

$

$

Not available

47

Cub Cadet MA-19672942200

Lens

$

$

Not available

49

Cub Cadet MA-04322104025

Screw

$

$

Not available

50

Cub Cadet MA-A3030112003

Nut

$

$

Not available

51

Cub Cadet MA-03700112000

Washer, Tooth

$

$

Not available

52

Cub Cadet MA-19672943000

Lead, Wire

$

$

Not available

54

Cub Cadet MA-19672947AG0

Cover

$

$

Not available

55

Cub Cadet MA-H1540108020

Bolt

$3.49

$

Usually ships in 3-6 days

0

Cub Cadet 725-3240

Battery 410 CCA
(Superseded to 925-3255)

Note: (Not Shown)

$

$

Not available
