7000 (54A-413D100) - Cub Cadet Compact Tractor Front Axle MFD (Part 2) Parts Diagram

Compact Tractor

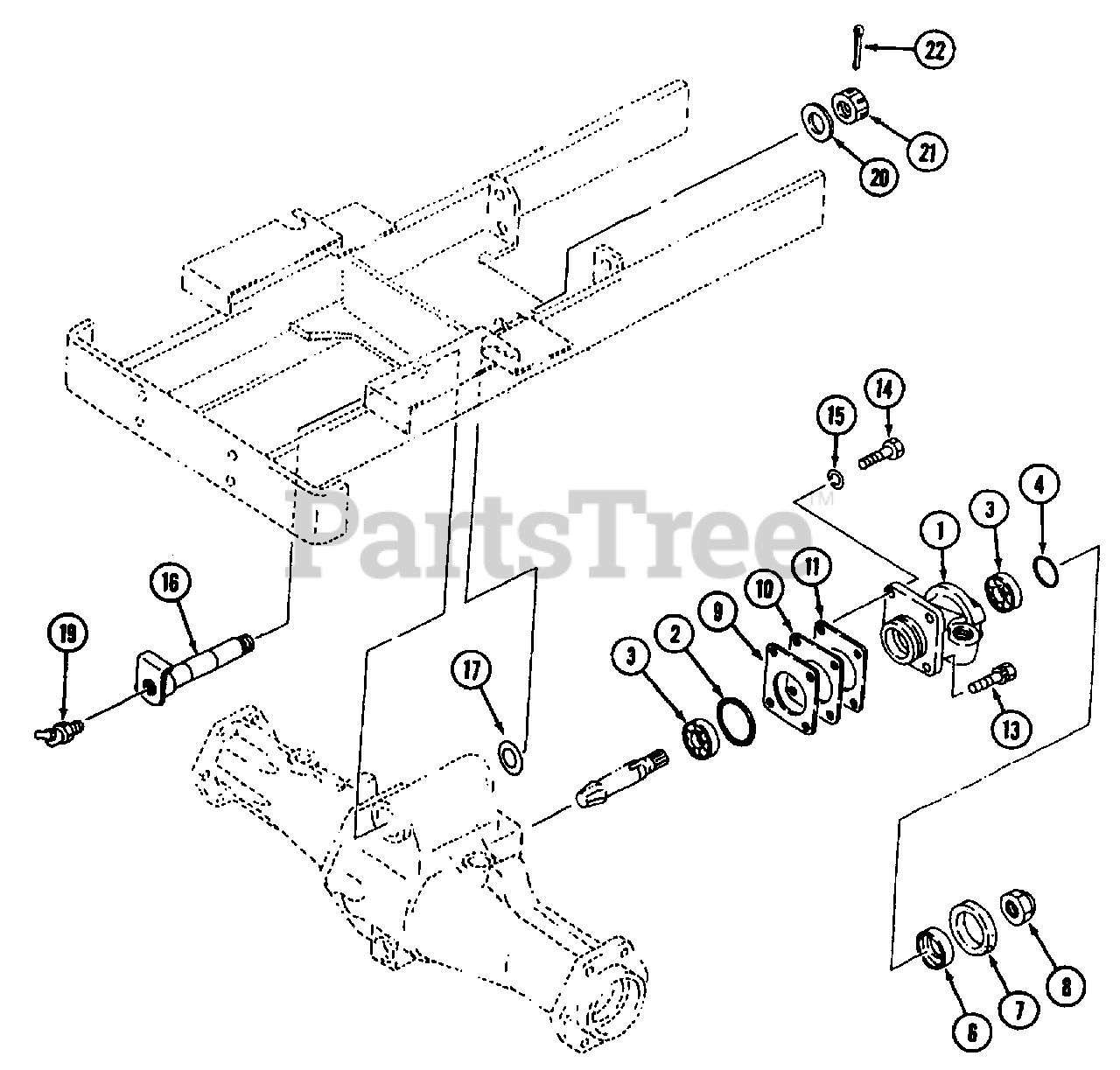

Front Axle MFD (Part 2) Parts Diagram

  • Title

1

Cub Cadet MA-19632126AG0

Case, Pinion

$

$

Not available

2

Cub Cadet MA-08300500530

O-Ring

$

$

Not available

3

Cub Cadet MA-19632127000

Bearing

$

$

Not available

4

Cub Cadet MA-08401030458

Seal, Oil

$

$

Not available

6

Cub Cadet MA-19632128000

Bushing

$132.99

$

Usually ships in 3-6 days

0

7

Cub Cadet MA-08300100220

O-Ring

$

$

Not available

8

Cub Cadet MA-19632129000

Nut(M22)

$

$

Not available

Cub Cadet MA-19632130000

Shim Set

Note: Includes 9,10,11

$

$

Not available

9

Cub Cadet MA-19632131000

Shim

$

$

Not available

10

Cub Cadet MA-19632132000

Shim

$

$

Not available

11

Cub Cadet MA-19632133000

Shim

$

$

Not available

13

Cub Cadet MA-F1550110030

Bolt

$3.99

$

In Stock, only 4 left!

0

14

Cub Cadet MA-69542-64700

Bolt

$8.99

$

In Stock, only 2 left!

0

15

Cub Cadet MA-A3600101002

Washer

$

$

Not available

16

Cub Cadet MA-19632067AG0

Pin Center

$

$

Not available

17

Cub Cadet MA-11351304011

Liner
(Superseded to MA-35181102001)

$

$

Not available

19

Cub Cadet MA-A6513100300

Nipple, Grease
(Superseded to MA-A6503100300)

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet MA-A6503100300

Nipple, Grease

Note: Replaces MA-A6513100300.

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet MA-11352064000

Plate

$

$

Not available

21

Cub Cadet MA-A3130102401

Nut

$

$

Not available

22

Cub Cadet MA-05200150040

Pin, Split

$

$

Not available
