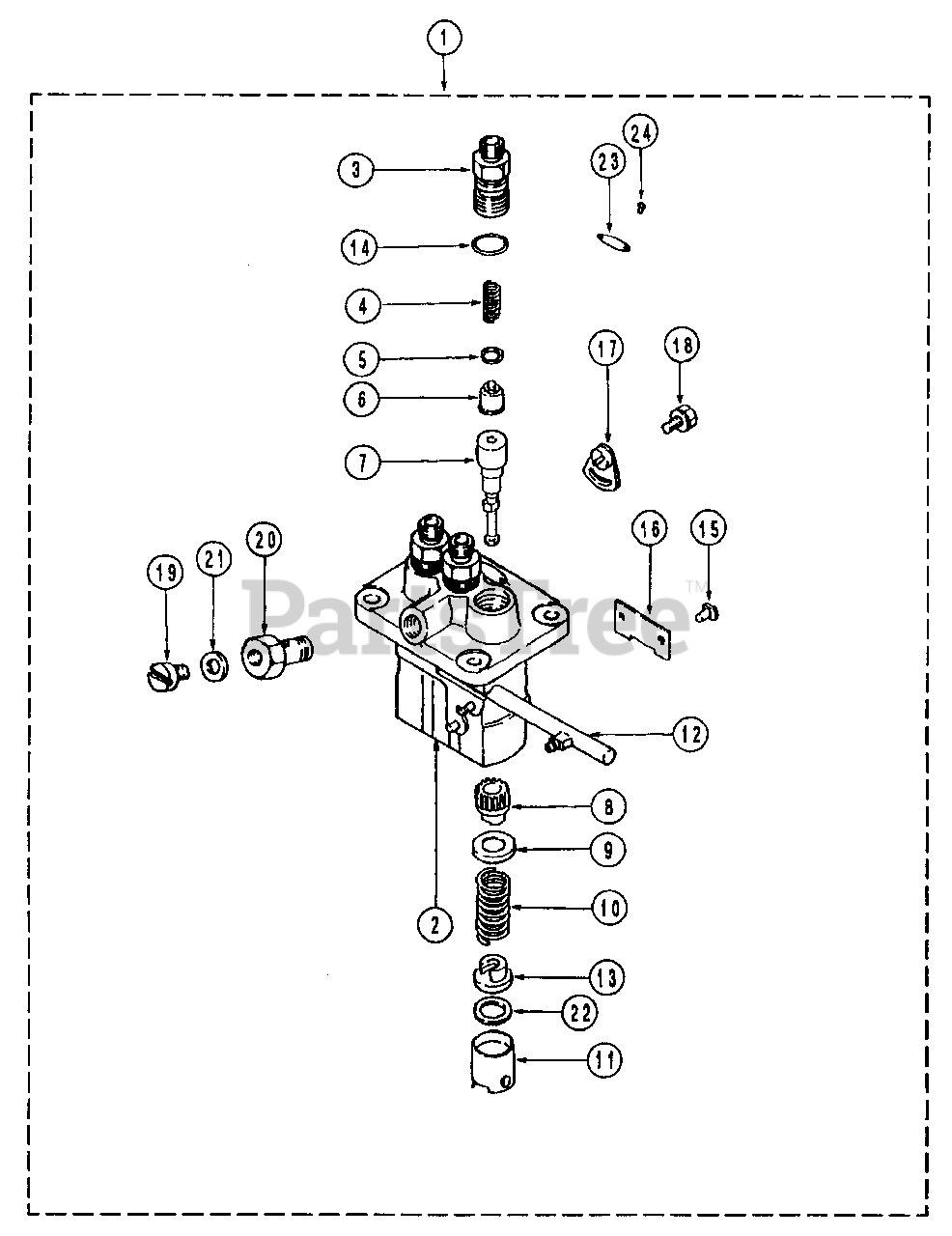

7000 (54A-413D100) - Cub Cadet Compact Tractor Fuel Injection Pump Parts Diagram

Compact Tractor

Fuel Injection Pump Parts Diagram

  • Title

1

Cub Cadet MA-31B65-03050

Pump Ass'y., Fuel Inj.

$

$

Not available

2

Cub Cadet MA-09011-05110

Housing Sub Ass'y.

$

$

Not available

3

Cub Cadet MA-09013-10520

Holder, Delivery V.

$

$

Not available

4

Cub Cadet MA-09013-60640

Spring, Delivery V.

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet MA-09013-70130

Gasket, Delivery V.

$

$

Not available

6

Cub Cadet MA-09014-02500

Valve Sub Ass'y.

$

$

Not available

7

Cub Cadet MA-09015-05550

Element Sub Ass'y.

$

$

Not available

8

Cub Cadet MA-09016-10210

Sleeve, Control

$29.99

$

In Stock, only 3 left!

0

9

Cub Cadet MA-09016-30082

Seat, Spring, Upper

$

$

Not available

10

Cub Cadet MA-09016-40170

Spring, Plunger

$

$

Not available

11

Cub Cadet MA-09017-00170

Tappet Sub Ass'y.

$

$

Not available

12

Cub Cadet MA-09021-00470

Rack Ass'y., Control

$

$

Not available

13

Cub Cadet MA-09030-10060

Seat, Spring Lower

$

$

Not available

14

Cub Cadet MA-MM500438

O-Ring
(Superseded to MA-90802-20150)

$

$

Not available

15

Cub Cadet MA-09018-30050

Pin, Tappet Guide

$

$

Not available

16

Cub Cadet MA-09046-70040

Plate

$25.99

$

Usually ships in 3-6 days

0

17

Cub Cadet MA-09006-80020

Plate, Adjusting

$

$

Not available

18

Cub Cadet MA-94904-80800

Bolt, Washer Head

$

$

Not available

19

Cub Cadet MA-09024-40180

Screw, Air Bleeder

$

$

Not available

20

Cub Cadet MA-09024-50210

Screw, Hollow

$

$

Not available

21

Cub Cadet MA-94901-81020

Washer, Pipe Union

$

$

Not available

22

Plate, Tappet Shim

$

$

Not available

23

Cub Cadet MA-09450-36810

Plate, Name

$

$

Not available

24

Cub Cadet MA-MM500429

Rivet

$

$

Not available
