7000 (54A-413D100) - Cub Cadet Compact Tractor Hydrostatic (Part 2) Parts Diagram

Compact Tractor

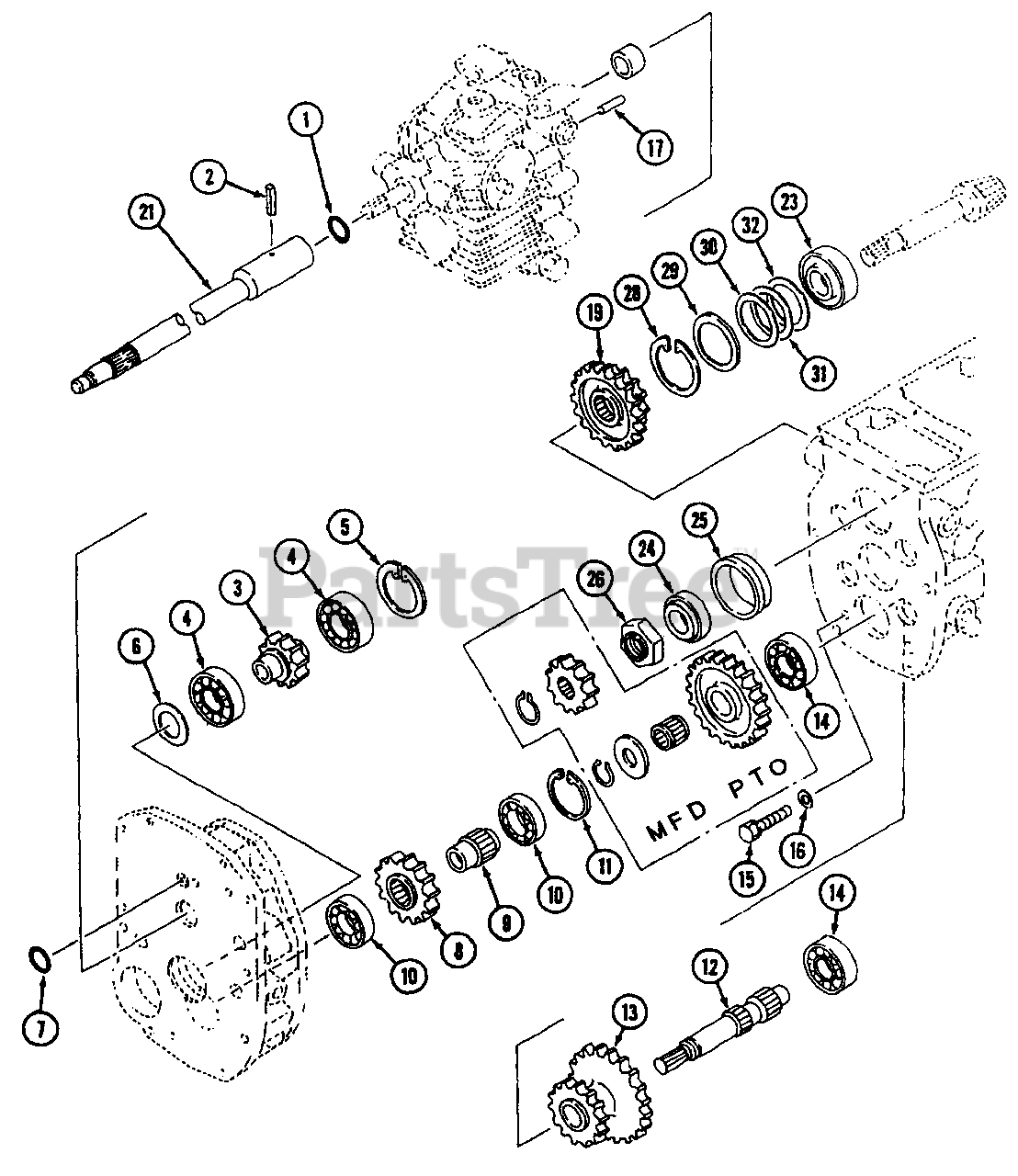

Hydrostatic (Part 2) Parts Diagram

  • Title

1

Cub Cadet MA-08301100200

O-Ring

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet MA-05500006036

Pin, Spring

$

$

Not available

3

Cub Cadet MA-19631306000

Gear,19T

$

$

Not available

4

Cub Cadet MA-07500062050

Bearing

$

$

Not available

5

Cub Cadet MA-07410005201

Ring

$

$

Not available

6

Cub Cadet MA-07300005210

Liner

$

$

Not available

7

Cub Cadet MA-08301100140

O-Ring

$

$

Not available

8

Cub Cadet MA-19631307000

Gear, 23T

$

$

Not available

9

Cub Cadet MA-19631308000

Boss, Spline

$

$

Not available

10

Cub Cadet MA-07500060050

Bearing

$

$

Not available

11

Cub Cadet MA-07410004701

Ring

$

$

Not available

12

Cub Cadet MA-19631309000

Shaft, Sub

$

$

Not available

13

Cub Cadet MA-19631311000

Gear, 25-37T

$

$

Not available

14

Cub Cadet MA-07500063040

Bearing

$

$

Not available

15

Cub Cadet MA-F1550110020

Bolt

$

$

Not available

16

Cub Cadet MA-03500161032

Washer

$

$

Not available

17

Cub Cadet MA-05400101020

Pin, Dowel

$

$

Currently unavailable

19

Cub Cadet MA-19631312000

Gear, 19-32T

$

$

Not available

21

Cub Cadet MA-19631305000

Shaft, Main

$

$

Not available

23

Cub Cadet MA-19631256000

Bearing

$

$

Not available

24

Cub Cadet MA-07700130205

Bearing

$

$

Not available

25

Cub Cadet MA-11351302011

Holder

$

$

Not available

26

Cub Cadet MA-11741273000

Nut (M25)

$26.99

$

In Stock, only 1 left!

0

28

Cub Cadet MA-11351322000

Ring, Snap

$

$

Not available

29

Cub Cadet MA-11351317011

Shim

$

$

Not available

Cub Cadet MA-10191309000

Shim Set

Note: Includes 30-32

$

$

Not available

30

Cub Cadet MA-11351315011

Shim t=0.1

$

$

Not available

31

Cub Cadet MA-11351316011

Shim t=0.2

$

$

Not available

32

Cub Cadet MA-11351317011

Shim t=0.5

$

$

Not available
