7000 (54A-413D100) - Cub Cadet Compact Tractor Oil Pan & Gear Case Parts Diagram

Compact Tractor

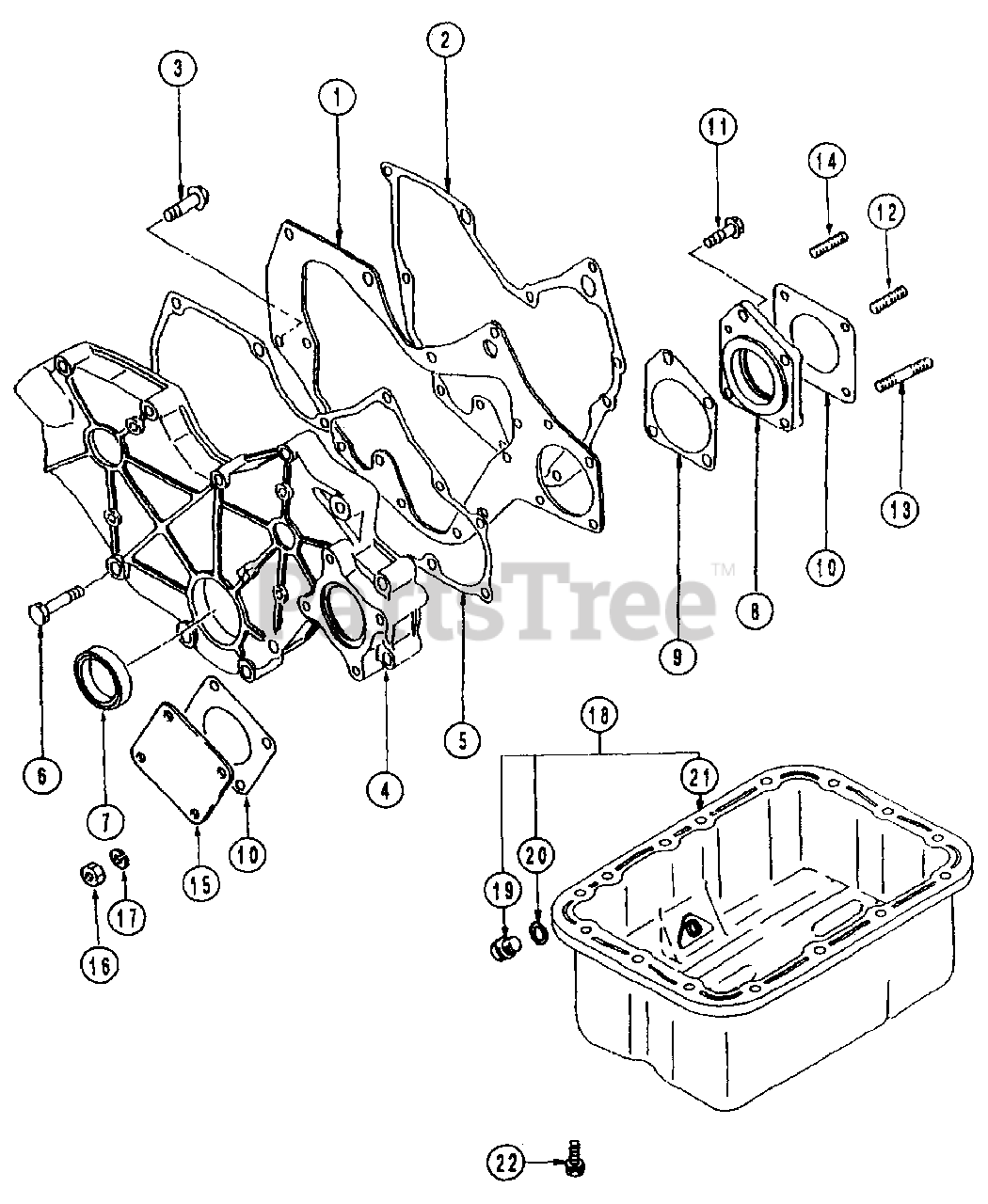

Oil Pan & Gear Case Parts Diagram

  • Title

1

Cub Cadet MA-31A11-02100

Plate, Front

$

$

Not available

2

Cub Cadet MA-31A07-11901

Gasket, Front Plate

$19.99

$

Usually ships in 3-6 days

0

3

Cub Cadet MA-F1540108016

Bolt, W/Washer

$

$

Not available

4

Cub Cadet MA-31A11-00800

Case, Gear, PTO

$

$

Not available

5

Cub Cadet MA-31A11-11101

Gasket, Gear
(Superseded to MA-31A11-11100)

$38.99

$

Usually ships in 3-6 days

0

6

Cub Cadet MA-F1035-08045

Bolt

$

$

Not available

7

Cub Cadet MA-MD008762

Seal, Oil

$

$

Not available

8

Cub Cadet MA-31A11-05101

Housing, Gear Pump

$

$

Not available

9

Cub Cadet MA-31A11-05201

Gasket, Housing

$

$

Not available

10

Cub Cadet MA-MM40120601

Gasket, O/Pump Cover
(Superseded to MA-30A11-00101)

$

$

Not available

11

Cub Cadet MA-F1540108030

Bolt, W/Washer

$

$

Not available

12

Cub Cadet MA-MF401936

Stud
(Superseded to MA-F1435-08025)

$4.49

$

In Stock, only 1 left!

0

13

Cub Cadet MA-MS401335

Stud

$

$

Not available

14

Cub Cadet MA-MF401935

Stud

$

$

Not available

15

Cub Cadet MA-MM401205

Cover,Oil Pump
(Superseded to MA-MM398237)

$

$

Not available

16

Cub Cadet MA-MF430005

Nut

$

$

Not available

17

Cub Cadet MA-MF450405

Washer, Spring

$

$

Not available

18

Cub Cadet MA-31B13-10021

Pan Ass'y., Oil

$

$

Not available

19

Cub Cadet MA-MD050316

Plug

$

$

Not available

20

Cub Cadet MA-MD050317

Gasket,Oil Drain

$6.49

$

Usually ships in 3-6 days

0

21

~NLA

Pan, Oil

$

$

Not available

22

Cub Cadet MA-F1540108016

Bolt, W/Washer

$

$

Not available
