7000 (54A-413D100) - Cub Cadet Compact Tractor Rear Axle Parts Diagram

Compact Tractor

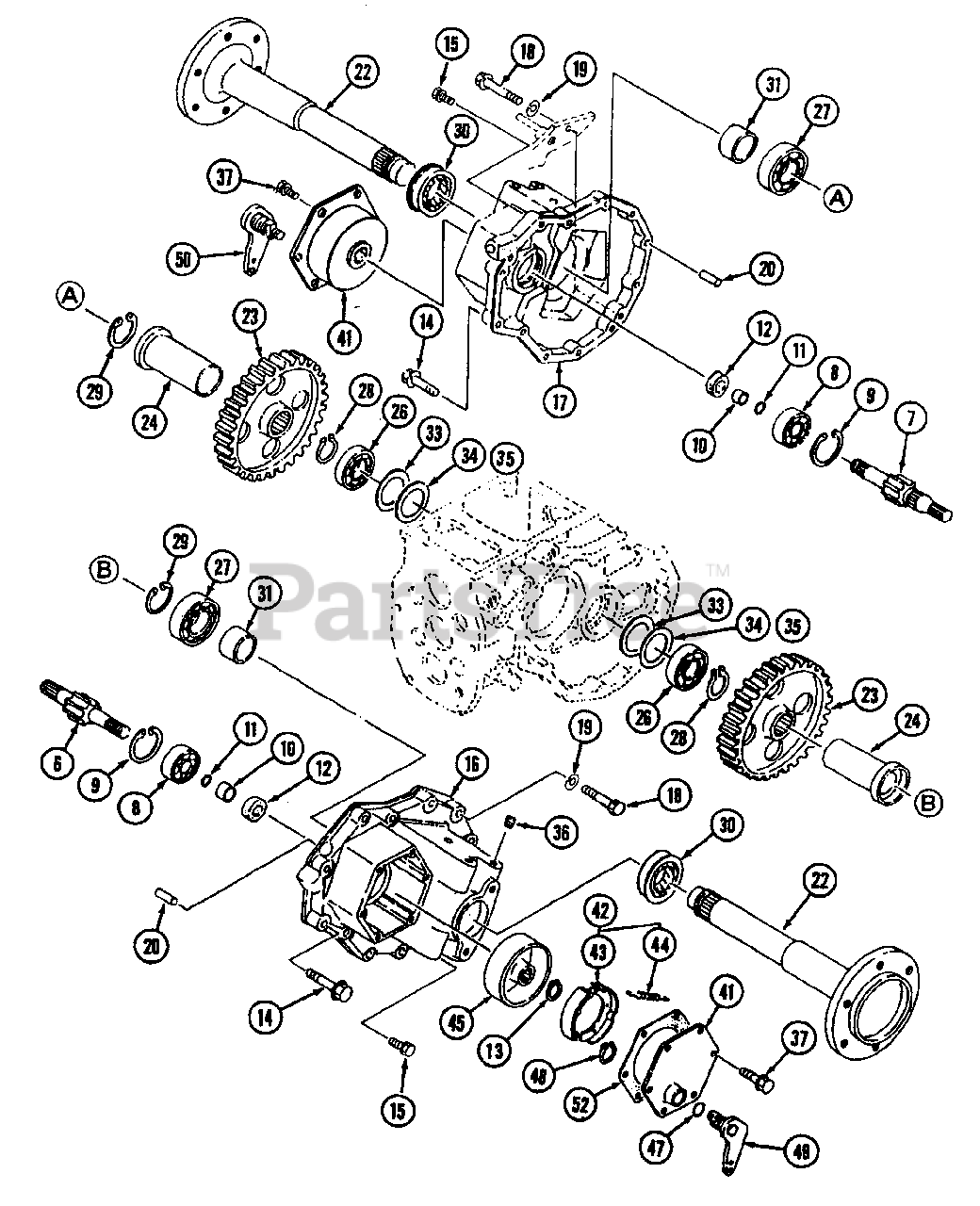

Rear Axle Parts Diagram

  • Title

6

Cub Cadet MA-19631511000

Shaft, L.H.

$

$

Not available

7

Cub Cadet MA-19631512000

Shaft, R.H.

$

$

Not available

8

Cub Cadet MA-07520663050

Bearing

$

$

Not available

9

Cub Cadet MA-07410006201

Ring

$

$

Not available

10

Cub Cadet MA-11351402100

Bushing

$

$

Not available

11

Cub Cadet MA-08300100250

O-Ring

$

$

Not available

12

Cub Cadet MA-08411355511

Seal, Oil

$

$

Not available

13

Cub Cadet MA-07400002500

Ring

$

$

Not available

14

Cub Cadet MA-F1550110045

Bolt

$

$

Not available

15

Cub Cadet MA-F1550110050

Bolt

$

$

Not available

16

Cub Cadet MA-19631513AG1

Case, L.H.

$

$

Not available

17

Cub Cadet MA-19631514AG1

Case, R.H.

$

$

Not available

18

Cub Cadet MA-A0550110065

Bolt

$

$

Not available

19

Cub Cadet MA-A3600101002

Washer

$

$

Not available

20

Cub Cadet MA-05401010020

Pin, Dowel

$2.49

$

In Stock, only 1 left!

0

22

Cub Cadet MA-19631516AG0

Shaft, Axle

$

$

Not available

23

Cub Cadet MA-10321509000

Gear, 72T

$

$

Not available

24

Cub Cadet MA-19631518000

Collar

$

$

Not available

26

Cub Cadet MA-07500062070

Bearing

$

$

Not available

27

Cub Cadet MA-07500062090

Bearing

$

$

Not available

28

Cub Cadet MA-07400004501

Ring

$

$

Not available

29

Cub Cadet MA-07410008501

Ring

$

$

Not available

30

Cub Cadet MA-13331454000

Seal, Oil

$

$

Not available

31

Cub Cadet MA-13331456000

Bush

$

$

Not available

Cub Cadet MA-19631519000

Shim, Set

Note: Includes 33-35

$

$

Not available

33

Cub Cadet MA-07300007204

Liner t=0.4

$

$

Not available

34

Cub Cadet MA-07300007208

Liner t=0.8

$

$

Not available

35

Cub Cadet MA-07300007202

Liner t=0.2

$

$

Not available

36

Cub Cadet MA-05534-14000

Plug

$

$

Not available

37

Cub Cadet MA-F1540108020

Bolt

$

$

Not available

Cub Cadet MA-19861451AG0

Brake Ass'y., L.H.

Note: Includes 41-49

$

$

Not available

Cub Cadet MA-19861461AG0

Brake Ass'y., R.H.

Note: Includes 41-48, 50

$

$

Not available

41

Cub Cadet MA-19861452AG0

Cover, Brake

$133.99

$

Usually ships in 3-6 days

0

42

Cub Cadet MA-19861467000

Shoe, Set

$

$

Not available

43

Shoe, Brake

$

$

Not available

44

Spring

$

$

Not available

45

Cub Cadet MA-19861456000

Drum, Brake

$

$

Not available

47

Cub Cadet MA-08300100180

O-Ring

$

$

Not available

48

Cub Cadet MA-07400002200

Ring

$

$

Not available

49

Cub Cadet MA-19861455AG0

Cam Brake, L.H.

$

$

Not available

50

Cub Cadet MA-19861462AG0

Cam Brake, R.H.

$

$

Not available

52

Cub Cadet MA-10071435000

Gasket

$

$

Not available

$

$

Not available

$

$

Not available
