7000 (54A-413D100) - Cub Cadet Compact Tractor Starter Parts Diagram

Compact Tractor

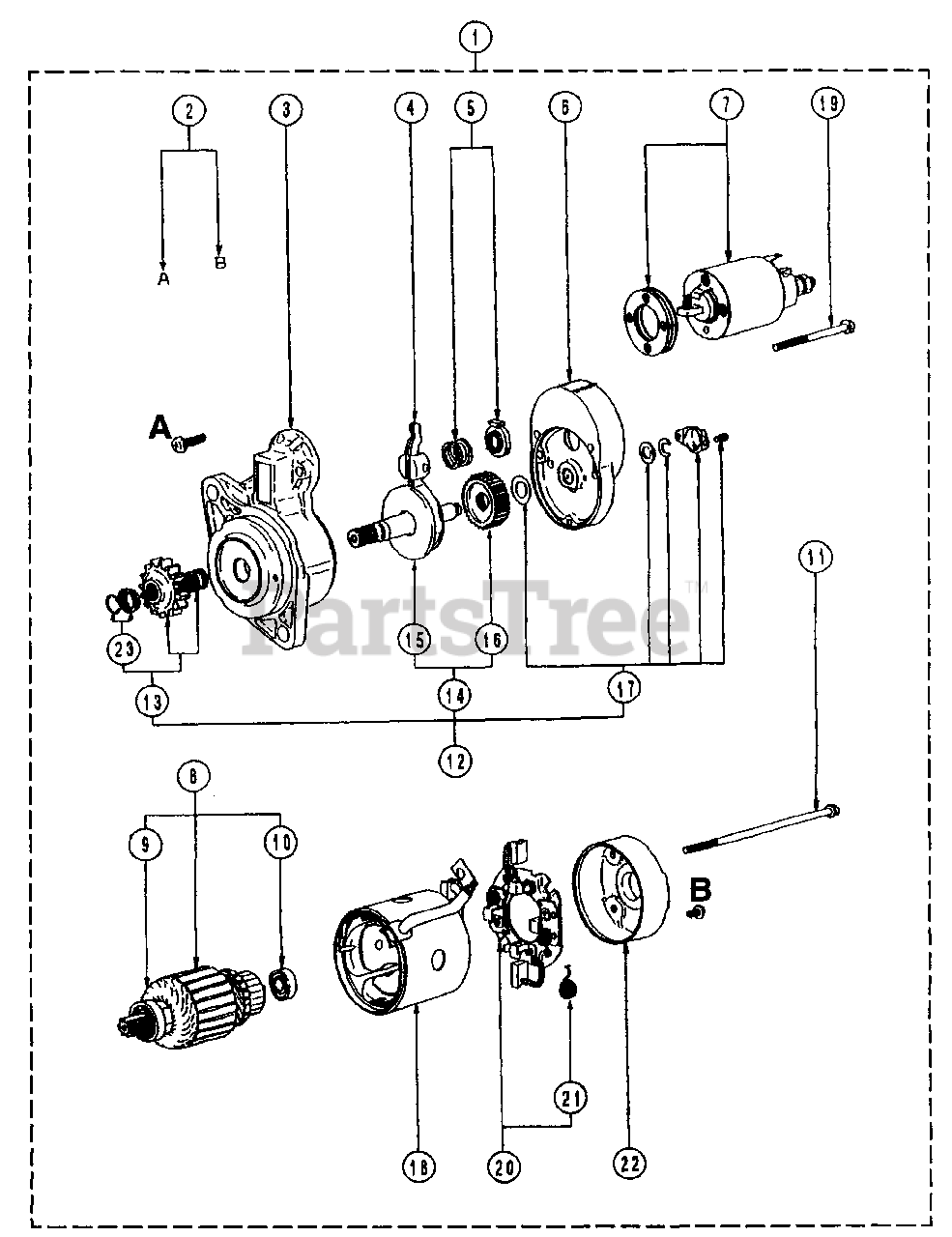

Starter Parts Diagram

  • Title

1

Cub Cadet MA-MM40941001

Starter Ass'y

$1810.99

$

Usually ships in 3-6 days

0

2

Cub Cadet MA-M414X00472

Screw Set

$

$

Not available

3

Cub Cadet MA-M641X03972

Bracket Ass'y, Front

$

$

Not available

4

Cub Cadet MA-M863C04671

Lever Ass'y

$

$

Currently unavailable

5

Cub Cadet MA-M389X10871

Spring Set

$

$

Not available

6

Cub Cadet MA-M640B11971

Bracket Ass'y, Center

$

$

Not available

7

Cub Cadet MA-M371X80171

Switch Ass'y

$300.99

$

Usually ships in 3-6 days

0

8

Cub Cadet MA-M106X57171

Armature Set

$

$

Not available

9

Cub Cadet MA-S930P12170

Bearing, Front
(Superseded to MA-S930P14301)

$

$

Not available

10

Cub Cadet MA-S930P14270

Bearing, Rear

$

$

Not available

11

Cub Cadet MA-M981C73901

Bolt Set

$

$

Currently unavailable

12

Cub Cadet MA-M357X81371

Shaft Ass'y, Clutch

$

$

Not available

13

Cub Cadet MA-MM502396

Pinion Set

$

$

Not available

14

Cub Cadet MA-M231X00476

Gear Set

$

$

Not available

15

Cub Cadet MA-M357C70771

Shaft Ass'y, Pinion
(Superseded to MA-M357T70771)

$

$

Not available

16

Cub Cadet MA-M231C00401

Gear

$

$

Not available

17

Cub Cadet MA-M212X09071

Cover Set

$

$

Not available

18

Cub Cadet MA-M800X59471

Yoke Ass'y

$

$

Not available

19

Cub Cadet MA-M981C74001

Bolt Set

$

$

Currently unavailable

20

Cub Cadet MA-M649T04471

Holder Ass'y, Brush

$

$

Currently unavailable

21

Cub Cadet MA-M391C00101

Spring, Brush

$

$

Not available

22

Cub Cadet MA-M644810201

Bracket Ass'y, Rear

$

$

Currently unavailable

23

Cub Cadet MA-M385X03471

Stopper Set

$

$

Not available
