7000 (54A-413D100) - Cub Cadet Compact Tractor Steering - 2 WD Parts Diagram

Compact Tractor

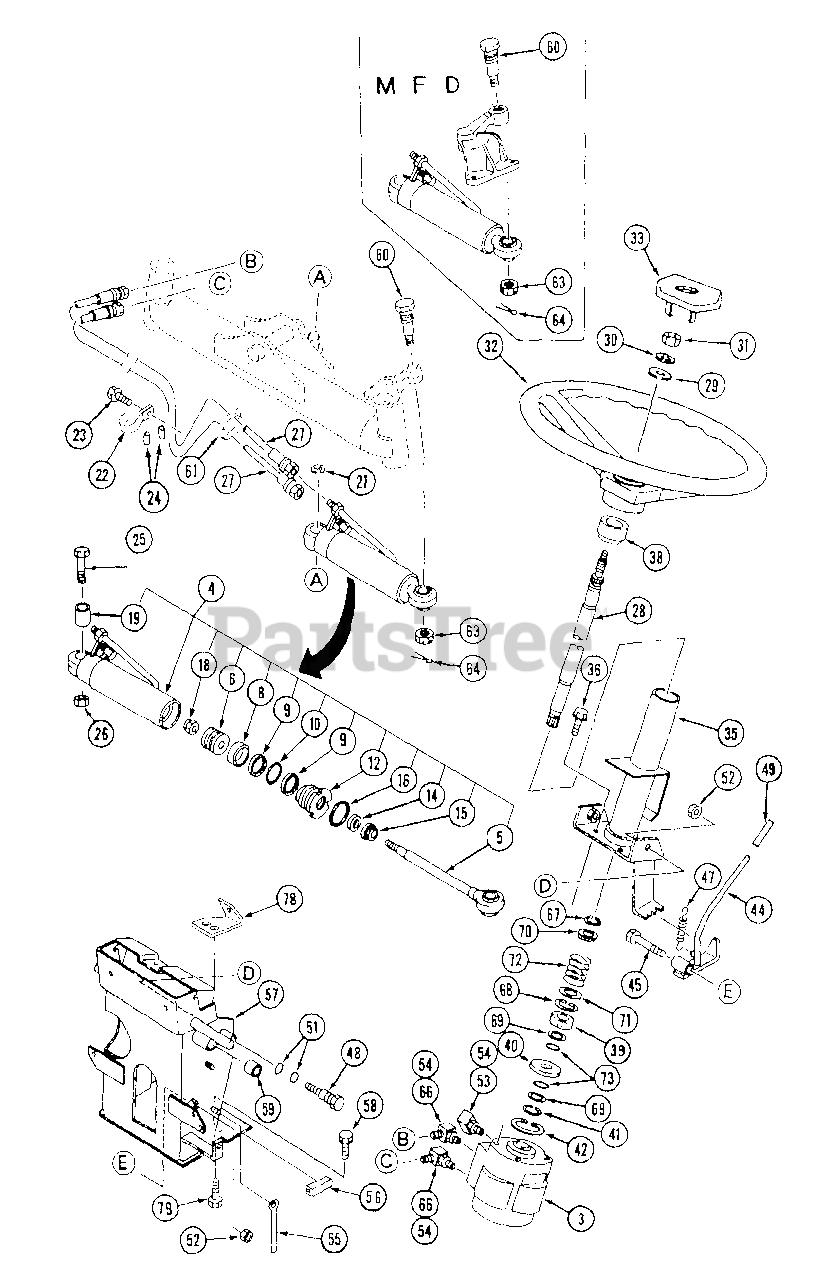

Steering - 2 WD Parts Diagram

  • Title

3

Cub Cadet MA-10322231001

Steering Unit

$

$

Not available

4

Cub Cadet MA-19672205AG0

Cylinder Ass'y.

Note: Includes items 5-19

$

$

Not available

5

Cub Cadet MA-19632207AG0

Rod, Cylinder

$

$

Not available

6

Cub Cadet MA-19632208000

Piston

$

$

Not available

Cub Cadet MA-19632209000

Kit, Seal A

Note: Includes items 8-10

$

$

Not available

8

Cub Cadet MA-19632209100

Wear Ring

$

$

Not available

9

Cub Cadet MA-08301100340

O-Ring

$

$

Not available

10

Cub Cadet MA-08320100340

Ring

$15.99

$

Usually ships in 3-6 days

0

12

Cub Cadet MA-19632211000

Case

$

$

Not available

Cub Cadet MA-19632212000

Kit, Seal B

Note: Includes items 14-16

$

$

Not available

14

Cub Cadet MA-19632212100

Seal Rod

$

$

Not available

15

Cub Cadet MA-19632212200

Seal, Dust

$

$

Not available

16

Cub Cadet MA-08301100400

O-Ring

$

$

Not available

18

Cub Cadet MA-A3530112000

Nut

$

$

Not available

19

Cub Cadet MA-07963024250

Bushing

$

$

Not available

21

Cub Cadet MA-07420101900

Ring (2WD)

$

$

Not available

22

Cub Cadet MA-11812151000

Clamp

$

$

Not available

23

Cub Cadet MA-H1540108020

Bolt

$3.49

$

Usually ships in 3-6 days

0

24

Cub Cadet MA-19672226000

Cushion

$

$

Not available

25

Bolt (MFD)

Note: Not used on this product

$

$

Not available

26

Nut (MFD)

Note: Not used on this product

$

$

Not available

27

Cub Cadet MA-19672231001

Hose

$

$

Not available

28

Cub Cadet MA-19672245000

Shaft, Steering

$

$

Not available

29

Cub Cadet MA-03500151430

Washer

$

$

Not available

30

Cub Cadet MA-A3600101402

Washer

$

$

Not available

31

Cub Cadet MA-A3030114002

Nut

$

$

Not available

Cub Cadet MA-10302216000

Steering Ass'y.

Note: Includes items 32, 33

$

$

Not available

32

Cub Cadet MA-10302217000

Steering Wheel

$

$

Not available

33

Cub Cadet MA-10302218000

Center Pad

$

$

Not available

35

Cub Cadet MA-19632252AG0

Column

$

$

Not available

36

Cub Cadet MA-F1550110020

Bolt

$

$

Not available

38

Cub Cadet MA-11742201170

Bushing, Column

$71.99

$

Usually ships in 3-6 days

0

39

Cub Cadet MA-08401022358

Oil Seal

$

$

Not available

40

Cub Cadet MA-27931515000

Washer

$

$

Not available

41

Cub Cadet MA-07410004001

Ring

$

$

Not available

42

Cub Cadet MA-07400002000

Ring

$

$

Not available

44

Cub Cadet MA-19672255AG0

Lever

$

$

Not available

45

Cub Cadet MA-A0520112060

Bolt

$

$

Not available

47

Cub Cadet MA-27932754001

Spring

$

$

Not available

48

Cub Cadet MA-19632257000

Bolt

$

$

Not available

49

Cub Cadet MA-14212284000

Grip

$

$

Not available

51

Cub Cadet MA-08301100160

O-Ring

$3.99

$

Usually ships in 3-6 days

0

52

Cub Cadet MA-A3030112002

Nut

$

$

Not available

53

Cub Cadet MA-19632259000

Valve, Check

Note: Includes item 54

$

$

Not available

54

Cub Cadet MA-08301100140

O-Ring

$

$

Not available

55

Cub Cadet MA-00502108063

Clamp

$

$

Not available

56

Cub Cadet MA-10253429000

Rubber Band

$

$

Not available

57

Cub Cadet MA-19672265AG0

Bracket, Column

$

$

Not available

Cub Cadet MA-19672265AG1

Bracket, Column

$

$

Not available

58

Cub Cadet MA-F1550110025

Bolt

$3.99

$

Usually ships in 3-6 days

0

59

Cub Cadet MA-07961025200

Bushing

$

$

Not available

60

Cub Cadet MA-19632267000

Bolt

$

$

Not available

61

Cub Cadet MA-00511032070

Band, Wire

$

$

Not available

63

Cub Cadet MA-A3130101601

Nut

$

$

Not available

64

Cub Cadet MA-05200140032

Pin, Split

$

$

Not available

66

Cub Cadet MA-06313117130

Elbow 90

Note: Includes item 54

$

$

Not available

67

Cub Cadet MA-07400102200

Ring

$3.49

$

Usually ships in 3-6 days

0

68

Cub Cadet MA-07410003500

Ring

$

$

Not available

69

Cub Cadet MA-07310002005

Liner

$

$

Not available

70

Cub Cadet MA-19672257000

Collar

$

$

Not available

71

Cub Cadet MA-19672258000

Liner

$

$

Not available

72

Cub Cadet MA-31223012001

Spring

$

$

Not available

73

Cub Cadet MA-08301100200

O-Ring

$3.99

$

Usually ships in 3-6 days

0

78

Cub Cadet MA-19672267000

Bracket

$

$

Not available

79

Cub Cadet MA-F1540108020

Bolt

$

$

Not available
