7016RT (7800053) - Snapper 16" Rear-Tine Tiller, 7hp Hood, Drag Stake & Tine Group - 7 HP Parts Diagram

16" Rear-Tine Tiller, 7hp

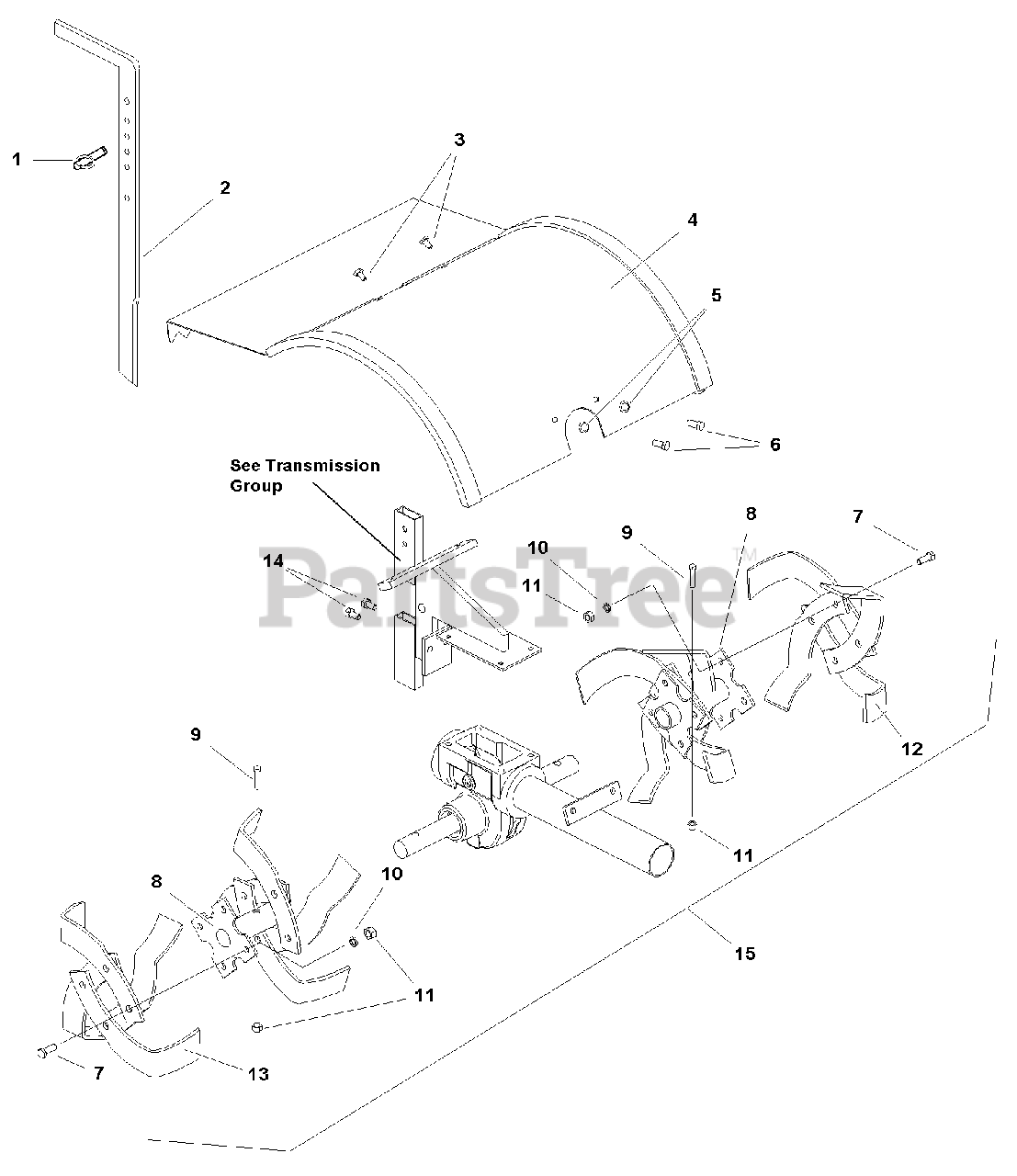

Hood, Drag Stake & Tine Group - 7 HP Parts Diagram

  • Title

1

Snapper 1723703

PIN, DETENT 5/16
(Superseded to 1723703SM)

$22.99

$

Usually ships in 2-12 days

0

2

Snapper 1723705

LEVER, Depth Regulator
(Superseded to 1723705SM)

$16.99

$

Usually ships in 2-12 days

0

3

Snapper 1921958

CAPSCREW, Hex Head, 1/4-20 x 1/2
(Superseded to 1921958SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 1722329

HOOD, Tiller, No Decal
(Superseded to 1721512SM)

$201.99

$

Usually ships in 2-12 days

0

5

Snapper 1917356

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 1920787

CAPSCREW, Hex Head, 5/16-18 x 1/2
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 1921210

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

8

Snapper 1716741

HOLDER, Tine Blade Left and Right
(Superseded to 1716741SM)

$66.99

$

Usually ships in 2-12 days

0

9

Snapper 1921971

CAPSCREW, Hex Head, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

10

Snapper 1916965

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

11

Snapper 1930651

NUT, Hex Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Snapper 1716739

TINE BLADE, Left Side
(Superseded to 1716739SM)

$38.99

$

In Stock, Qty 7

0

13

Snapper 1716737

TINE BLADE, Right Side
(Superseded to 1716737SM)

$24.99

$

In Stock, Qty 7

0

14

Snapper 1716701

BOLT, Hex Flange Head, 5/16-18 x 1/2
(Superseded to 1931648SM)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 1716749

REPL KIT, Tine Blade Holder (Includes Reference Nos. 7, 8, 9, 10, 11, 12, and 13)
(Superseded to 1716749SM)

$244.99

$

Usually ships in 2-12 days

0
