7060316 - Snapper Muffler Kit 6.5, 7, 8, 9hp Briggs & Stratton Muffler Kit Parts Diagram

Muffler Kit 6.5, 7, 8, 9hp Briggs & Stratton

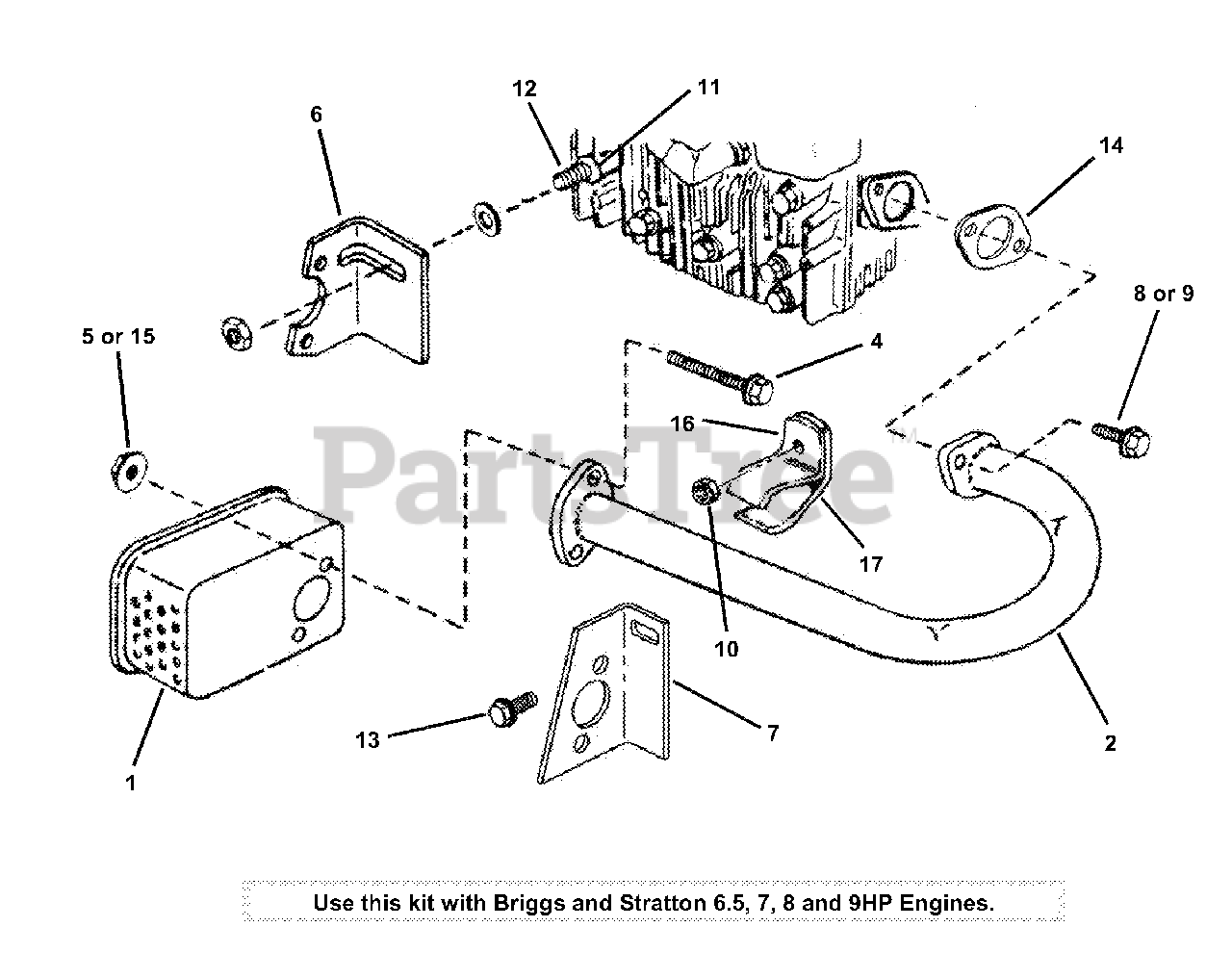

Muffler Kit Parts Diagram

  • Title

--

Snapper 7060316

KIT, Muffler

Note: (Includes items 1 thru 3)

$182.99

$

In Stock, only 1 left!

0

1

Snapper 7018198

MUFFLER, 8HP
(Superseded to 7018198YP)

$32.99

$

In Stock, only 2 left!

0

2

Snapper 7018197

TUBE, Exhaust
(Superseded to 7018197YP)

$137.99

$

Usually ships in 2-12 days

0

3

Snapper 7060489

HARDWARE BAG

Note: (Includes items 4 thru 13)

$

$

Not available

4

Snapper 7091830

SCREW, 5/16-18 x 3" Hex Head Cap
(Superseded to 703870)

Note: Was 90553

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7032414

BRACKET, Muffler
(Superseded to 7032414YP)

Note: (For Briggs engines)

$25.99

$

In Stock, only 1 left!

0

7

Snapper 7031958

BRACKET, Muffler
(Superseded to 7031958YP)

Note: (For Tecumseh engines)

$23.99

$

In Stock, only 1 left!

0

8

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap
(Superseded to 001X38MA)

Note: (For Briggs engines)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex
(Superseded to 704287)

Note: Was 12438 (For Tecumseh engines)

$3.99

$

In Stock, Qty 19

0

10

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7012418

WASHER, 21/64" I.D. (Briggs #225137)

$

$

Not available

12

Snapper 7012419

STUD, Cylinder Head
(Superseded to 7012419YP)

$8.49

$

In Stock, only 2 left!

0

13

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 703054)

Note: Was 90362 (For Tecumseh)

$4.49

$

In Stock, only 2 left!

0

14

Snapper 7012422

GASKET, Exhaust

Note: Not included in this kit.

$3.49

$

In Stock, only 1 left!

0

15

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184 (Not included in this kit.)

$3.49

$

In Stock, Qty 10

0

16

Snapper 7032414

CLIP, Top
(Superseded to 7032414YP)

Note: Was 31959 (For Briggs engines); Not included in this kit.

$25.99

$

In Stock, only 1 left!

0

17

Snapper 7032414

CLIP, Bottom
(Superseded to 7032414YP)

Note: Was 31957 (For Briggs engines); Not included in this kit.

$25.99

$

In Stock, only 1 left!

0
