7060374 - Snapper 42" Rear PTO Tiller Attachment for MF Series 42" Tiller Gear Box Parts Diagram

42" Rear PTO Tiller Attachment for MF Series

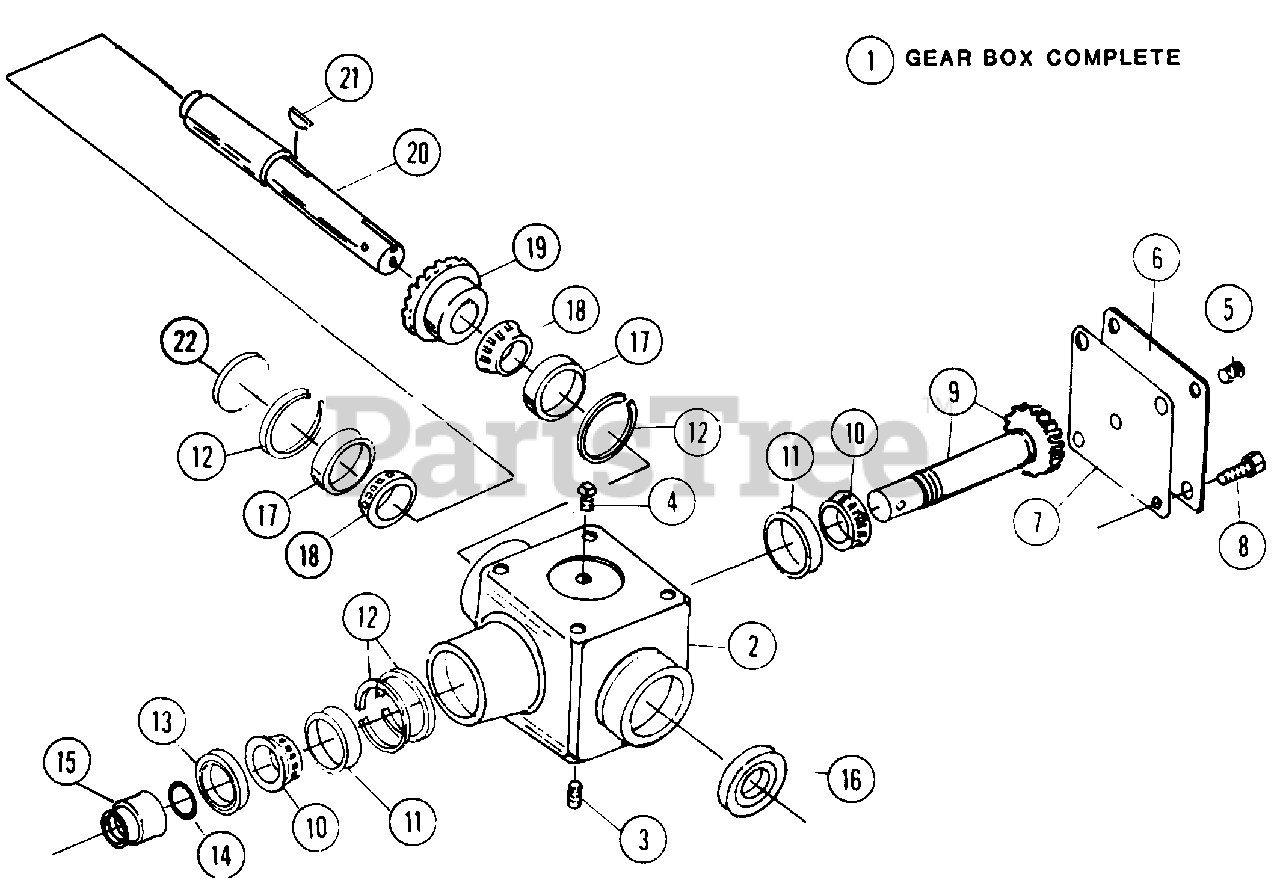

42" Tiller Gear Box Parts Diagram

  • Title

1

Snapper 7013152

GEAR BOX - COMPLETE (Durst #4477)

Note: (INCLUDES FOLLOWING)

$

$

Currently unavailable

2

Snapper 7013328

HOUSING, GEAR BOX

$

$

Currently unavailable

3

Snapper 7013345

PLUG, DRAIN 3/8-18 NPT

$

$

Currently unavailable

4

Snapper 7013346

PLUG, VENT 3/8-18 NPT SQUARE HEAD

$

$

Currently unavailable

5

Snapper 7013344

PLUG, CHECK 1/8-27 NPT

$

$

Currently unavailable

6

Snapper 7013342

COVER

$

$

Currently unavailable

7

Snapper 7013343

GASKET, COVER

$

$

Currently unavailable

8

Snapper 7013347

SCREW, 5/16-18 x 1/2 HEX HEAD CAP

$

$

Currently unavailable

9

Snapper 7013329

SHAFT, BEVEL PINION

$

$

Currently unavailable

10

Snapper 7013332

BEARING CONE

$

$

Currently unavailable

11

Snapper 7013331

BEARING CUP

$

$

Currently unavailable

12

Snapper 7013333

RING, RETAINING

$

$

Currently unavailable

13

Snapper 7013337

SEAL, OIL 32MM x 46MM x 8MM

$

$

Currently unavailable

14

Snapper 7013340

O-RING (National #NS118)

$

$

Currently unavailable

15

Snapper 7013338

STAKE-NUT

$

$

Currently unavailable

16

Snapper 7013336

SEAL, OIL 34" ID

$

$

Currently unavailable

17

Snapper 7012931

BEARING CUP

$

$

Currently unavailable

18

Snapper 7018315

BEARING CONE

$

$

Currently unavailable

19

Snapper 7013330

GEAR, BEVEL 28T-10P

$

$

Currently unavailable

20

Snapper 7013334

SHAFT, OUTPUT

$

$

Currently unavailable

21

Snapper 7010211

KEY, WOODRUFF
(Superseded to 7010211YP)

Note: Was 12699 (#9-606 HARD)

$3.49

$

In Stock, only 3 left!

0

22

Snapper 7013339

CAP, END

$

$

Currently unavailable
