7061383 - Snapper LT Hood Replacement Kit Hood Replacement Kit Parts Diagram

LT Hood Replacement Kit

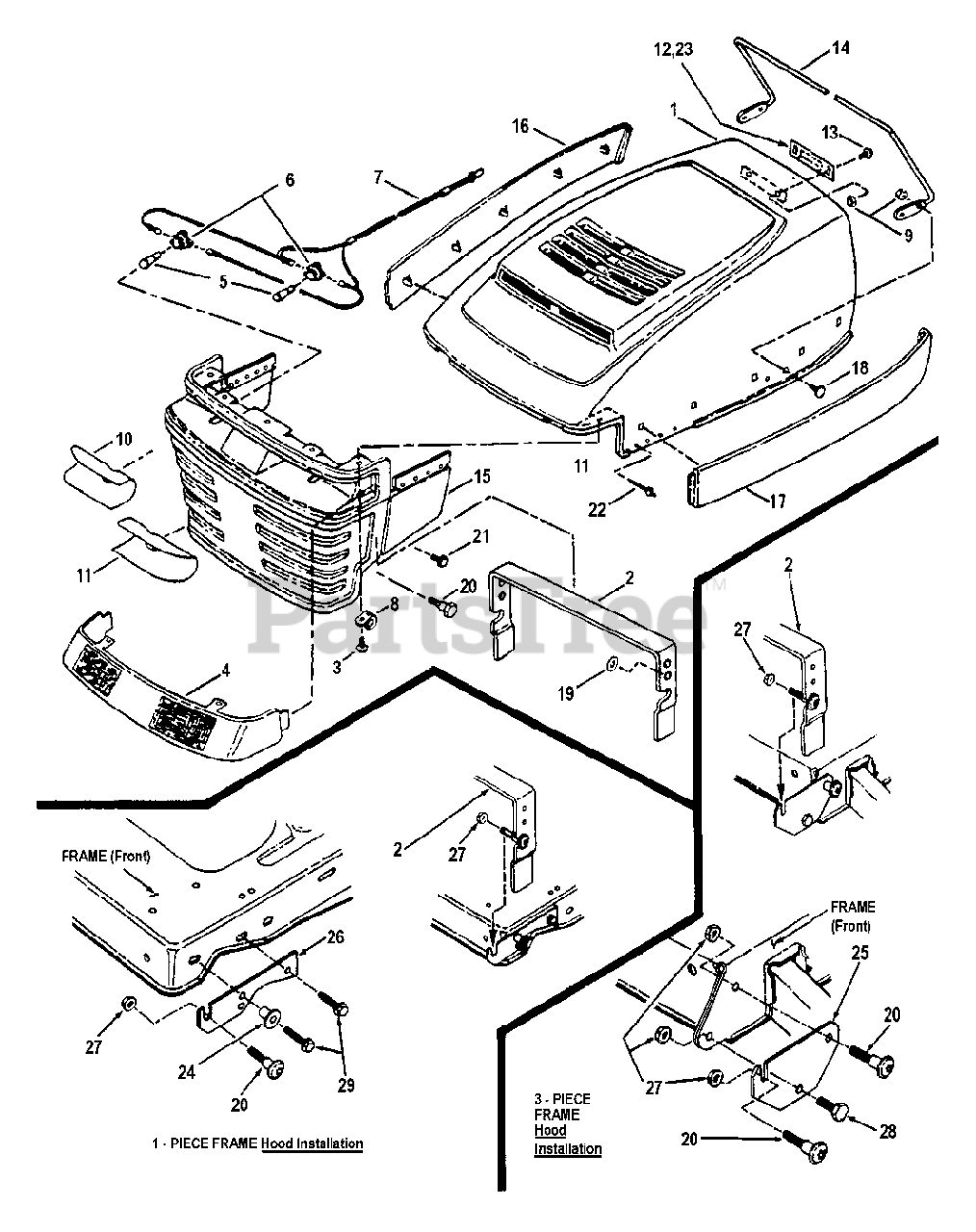

Hood Replacement Kit Parts Diagram

  • Title

--

Snapper 7063298

KIT, LT Mozart Hood Replacement
(Superseded to 7063298YP)

Note: Was 61383 (Includes all items listed below)

$1036.99

$

Usually ships in 2-12 days

0

--

Snapper 7053525

ASSEMBLY, Hood, Mozart-Scoop
(Superseded to 7063298YP)

Note: (Includes items 1 thru 22)

$1036.99

$

Usually ships in 2-12 days

0

1

Snapper 7063298

HOOD, Mozart-Scoop-Red
(Superseded to 7063298YP)

Note: Was 26406 or 61383

$1036.99

$

Usually ships in 2-12 days

0

2

Snapper 7034324

BRACE, Hood Support/Stop
(Superseded to 7034324YP)

$50.99

$

Usually ships in 2-12 days

0

3

Snapper 7091106

SCREW, M4.8 x 1.59 x 16.00mm Sems
(Superseded to 7091106YP)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7029602

LENS, Rippled-Sloped
(Superseded to 7029602YP)

$60.99

$

Usually ships in 2-12 days

0

5

Snapper 7026172

LAMP, 1141
(Superseded to 7026172YP)

$14.99

$

In Stock, only 1 left!

0

6

Snapper 7024709

SOCKET, Headlight (Snap-in)

$

$

Not available

7

Snapper 7026171

HARNESS, Headlight Wiring (M & G Sockets)
(Superseded to 7026171YP)

$11.99

$

Usually ships in 2-12 days

0

8

Snapper 7026482

CLIP, "J" (open type)
(Superseded to 7026482YP)

$3.49

$

In Stock, only 1 left!

0

9

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7026179

DECAL, R.H. Lens/Reflector
(Superseded to 7026179YP)

$5.99

$

Usually ships in 2-12 days

0

11

Snapper 7026180

DECAL, L.H. Lens/Reflector
(Superseded to 7026180YP)

$7.99

$

Usually ships in 2-12 days

0

12

Snapper 7024718

LATCH, Spring
(Superseded to 7024718YP)

Note: (For 1-Piece Frame)

$23.99

$

Usually ships in 2-12 days

0

13

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Head Torx
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7016766

ROD, Hood Support
(Superseded to 7016766YP)

$15.99

$

Usually ships in 2-12 days

0

15

Snapper 7029570

GRILL, Sloped-Black
(Superseded to 7029570YP)

$152.99

$

Usually ships in 2-12 days

0

16

Snapper 7029571

PANEL, R.H. Side-Black

$

$

Currently unavailable

17

Snapper 7029572

PANEL, L.H. Side-Black

$

$

Currently unavailable

18

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Square Neck, Grade 2
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

In Stock, Qty 10

0

20

Snapper 7024061

BOLT, 3/8-16 Shoulder (2, plus 2 in hardware bag)
(Superseded to 7024061YP)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Self-tap
(Superseded to 703985)

$4.49

$

In Stock, Qty 14

0

22

Snapper 7091095

POP RIVET, 1/8 x 3/8"
(Superseded to 7091095SM)

$2.99

$

In Stock, Qty 12

0

--

Snapper 7063299

BAG, Hardware

Note: Was 61384 (Includes 23 thru 29)

$

$

Not available

23

Snapper 7017359

CLIP, Hood Latch
(Superseded to 7017359YP)

Note: (For 3-Piece Frame)

$33.99

$

Usually ships in 2-12 days

0

24

Snapper 7024616

BUSHING, Flange
(Superseded to 7024616YP)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7028932

BRACKET, Hood, Mozart LTH
(Superseded to 7028932YP)

$14.99

$

Usually ships in 2-12 days

0

26

Snapper 7033488

BRACKET, Hood Pivot
(Superseded to 7033488YP)

$17.99

$

Usually ships in 2-12 days

0

27

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

28

Snapper 7091086

BOLT, 3/8-16 x 3/4" Hex Head, Grade 5
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

29

Snapper 7091524

SCREW, 5/16-18 x 1-1/4" Hex Washer Self-tap
(Superseded to 703167)

Note: Was 91151

$3.99

$

In Stock, Qty 12

0
