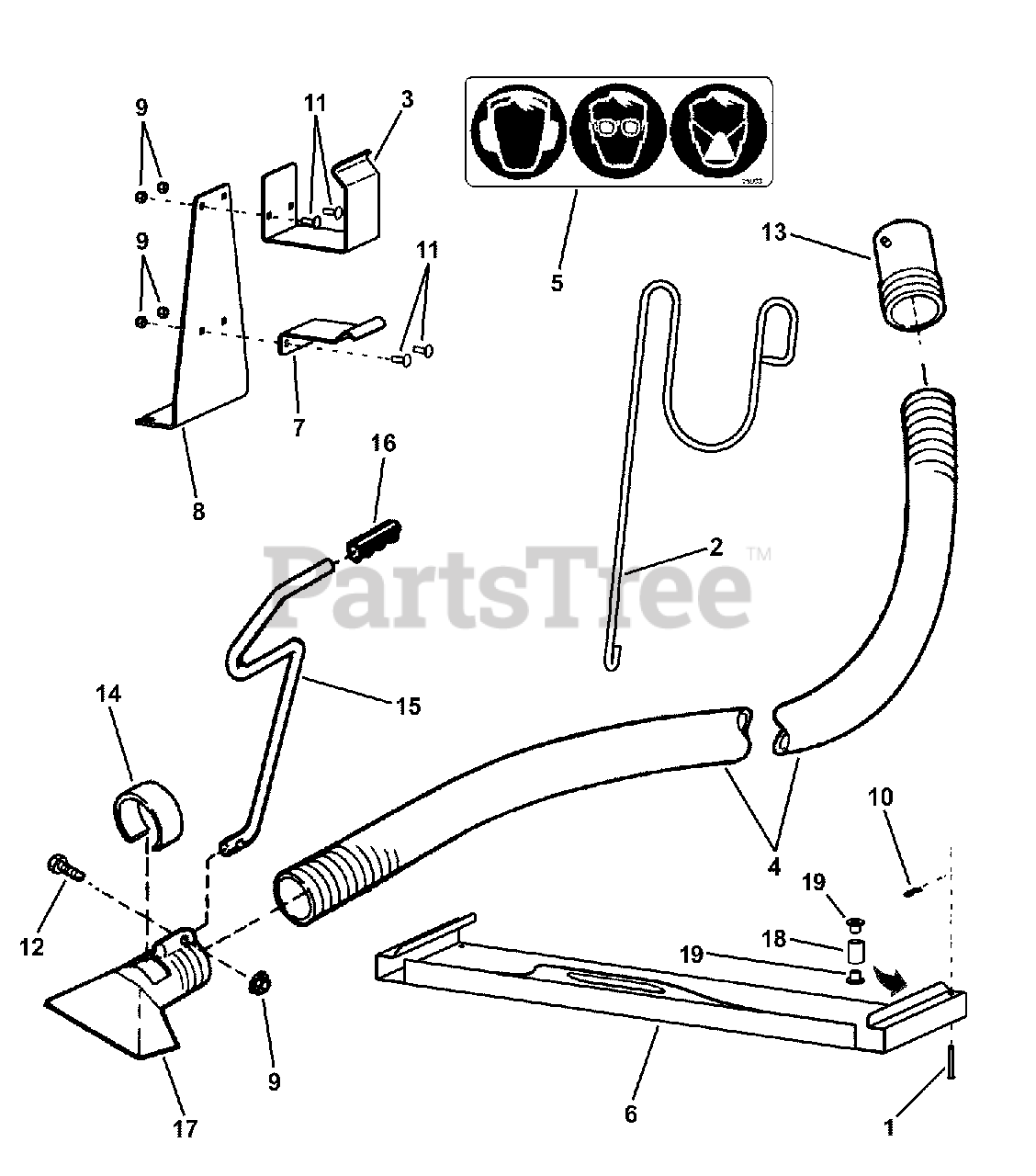

7063344 - Simplicity Vacuum Hose Kit for Leaf Blower Illustrated Parts List (63344kit) Parts Diagram

Vacuum Hose Kit for Leaf Blower

Illustrated Parts List (63344kit) Parts Diagram

  • Title

1

Simplicity 7012393

PIN, 1/4 x 1-1/8" Clevis (Current versions)
(Superseded to 7012393YP)

Note: Used with .255" holes in item #6

$4.49

$

Usually ships in 2-12 days

0

1

Simplicity 7023645

PIN, 3/16 x 1-1/2" Clevis (Early versions)
(Superseded to 7023645SM)

Note: Used with .218" holes in item #6

$3.49

$

Usually ships in 2-12 days

0

2

Simplicity 7072434

ROD, Hose/Handle Holder
(Superseded to 7072434SM)

$32.99

$

Usually ships in 2-12 days

0

3

Simplicity 7072435

BRACKET, Upper Hose Clamp
(Superseded to 7072435SM)

$37.99

$

Usually ships in 2-12 days

0

4

Simplicity 7072436SM

HOSE, 8 inch Diameter x 8 feet Long

$180.99

$

Usually ships in 2-12 days

0

5

Simplicity 7075893SM

DECAL, Personal Protection

$

$

Not available

6

Simplicity 7075957

BRACKET, Inlet Shutoff
(Superseded to 7075957SM)

$73.99

$

Usually ships in 2-12 days

0

7

Simplicity 7075958

BRACKET, Lower Hose Clamp

$

$

Not available

8

Simplicity 7075959

BRACKET, Hose Clamp Support
(Superseded to 7075959SM)

$45.99

$

Usually ships in 2-12 days

0

9

Simplicity 7076978SM

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 7091310

HAIR PIN, #13
(Superseded to 703430)

$3.49

$

In Stock, Qty 8

0

11

Simplicity 7091530

CARRIAGE BOLT, 1/4-20 x 3/4, GR5
(Superseded to 7091530SM)

$3.99

$

In Stock, Qty 5

0

12

Simplicity 7091814

CAPSCREW, 1/4-20 x 1-1/4 Hex Head
(Superseded to 7091814SM)

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 1023100SM

COUPLER, Hose (Plastic)

$54.99

$

Usually ships in 2-12 days

0

14

Simplicity 1024100SM

RING, Shut Off (Plastic)

$37.99

$

Usually ships in 2-12 days

0

15

Simplicity 1026100

HANDLE
(Superseded to 1026100BMYP)

$117.99

$

Usually ships in 2-12 days

0

16

Simplicity 1028100SM

GRIP, Handle (Black Vinyl)

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 1030100SM

NOZZLE, Vacuum (Plastic)

$125.99

$

Usually ships in 2-12 days

0

18

Simplicity 7029973

SPACER
(Superseded to 7029973SM)

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 7014343

BUSHING, Flange
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

--

Snapper 7063344SM

KIT, Vacuum Hose

$433.99

$

Usually ships in 2-12 days

0
