7082099 - Snapper 30" RER Snow Thrower Attachment Lift Components Parts Diagram

30" RER Snow Thrower Attachment

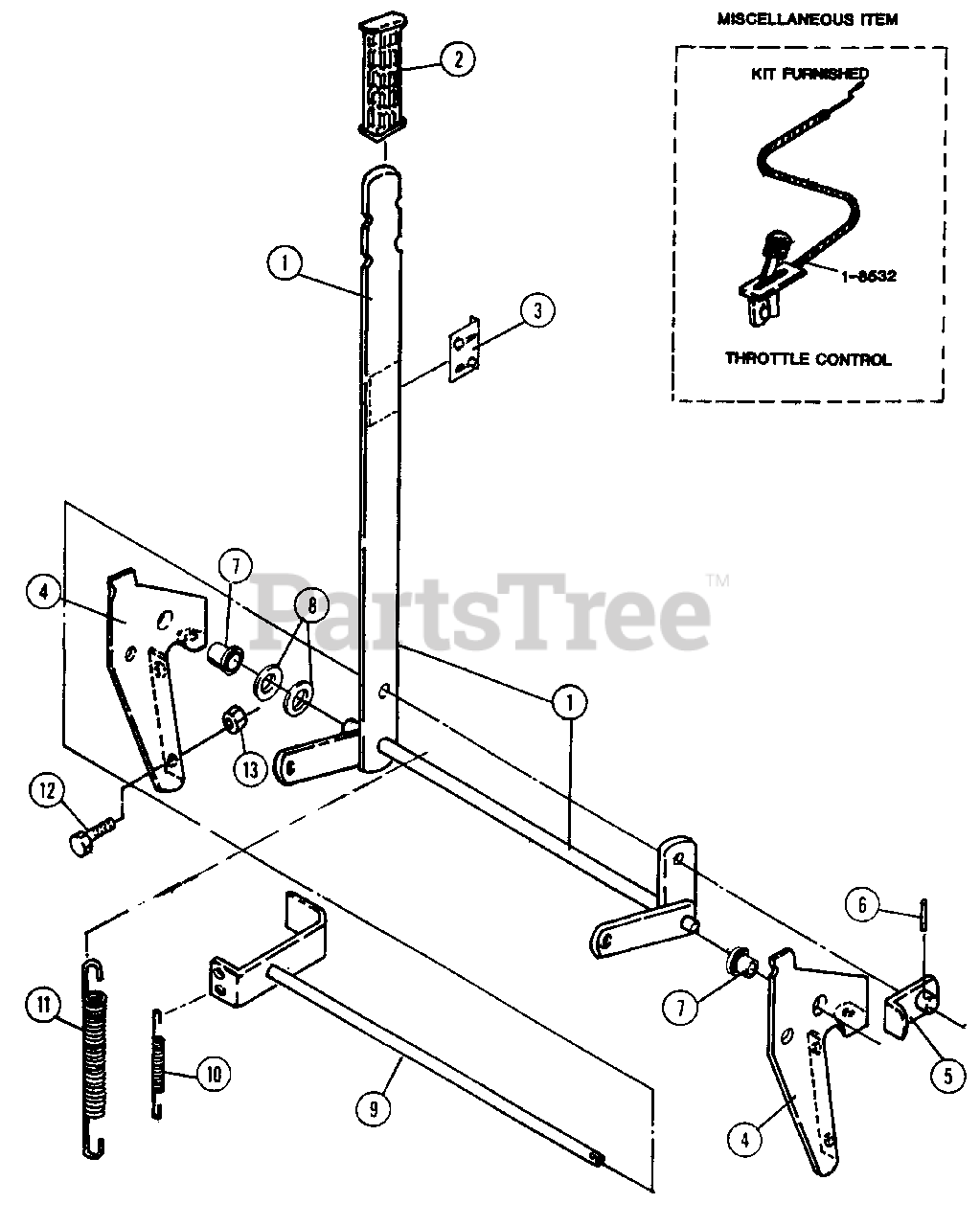

Lift Components Parts Diagram

  • Title

1

Snapper 47798

LIFT HANDLE

Note: (Arm Structure)

$

$

Currently unavailable

2

Snapper 7011870

GRIP
(Superseded to 1726317SM)

$8.49

$

In Stock, only 3 left!

0

3

Snapper 14226

DECAL, Lift Handle

$

$

Currently unavailable

4

Snapper 7036023

BRACKET, Lift Mounting

$

$

Not available

5

Snapper 40478

LATCH

Note: (Structure)

$

$

Currently unavailable

6

Snapper 14217

ROLL-PIN

$

$

Currently unavailable

7

Snapper 7010694

BUSHING
(Superseded to 7010694YP)

$4.49

$

In Stock, Qty 14

0

8

Snapper 7090183

WASHER
(Superseded to 7090183YP)

$4.49

$

In Stock, Qty 11

0

9

Snapper 40477

SHAFT, Lift

Note: (Structure)

$

$

Currently unavailable

10

Snapper 7013919

SPRING, Latch
(Superseded to 7013919YP)

$8.49

$

In Stock, only 4 left!

0

11

Snapper 7014210

SPRING, Lift Assist
(Superseded to 7014210YP)

$7.99

$

Usually ships in 2-12 days

0

12

Snapper 7090204

SCREW, 5/16-18 x 5/8 Hex Head Cap
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

13

Snapper 7091575

LOCKNUT, 5/16-18
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 10

0

18532

Snapper 7018532

CONTROL, Throttle

$

$

Not available
