7082099 - Snapper 30" RER Snow Thrower Attachment Spindle Assembly Parts Diagram

30" RER Snow Thrower Attachment

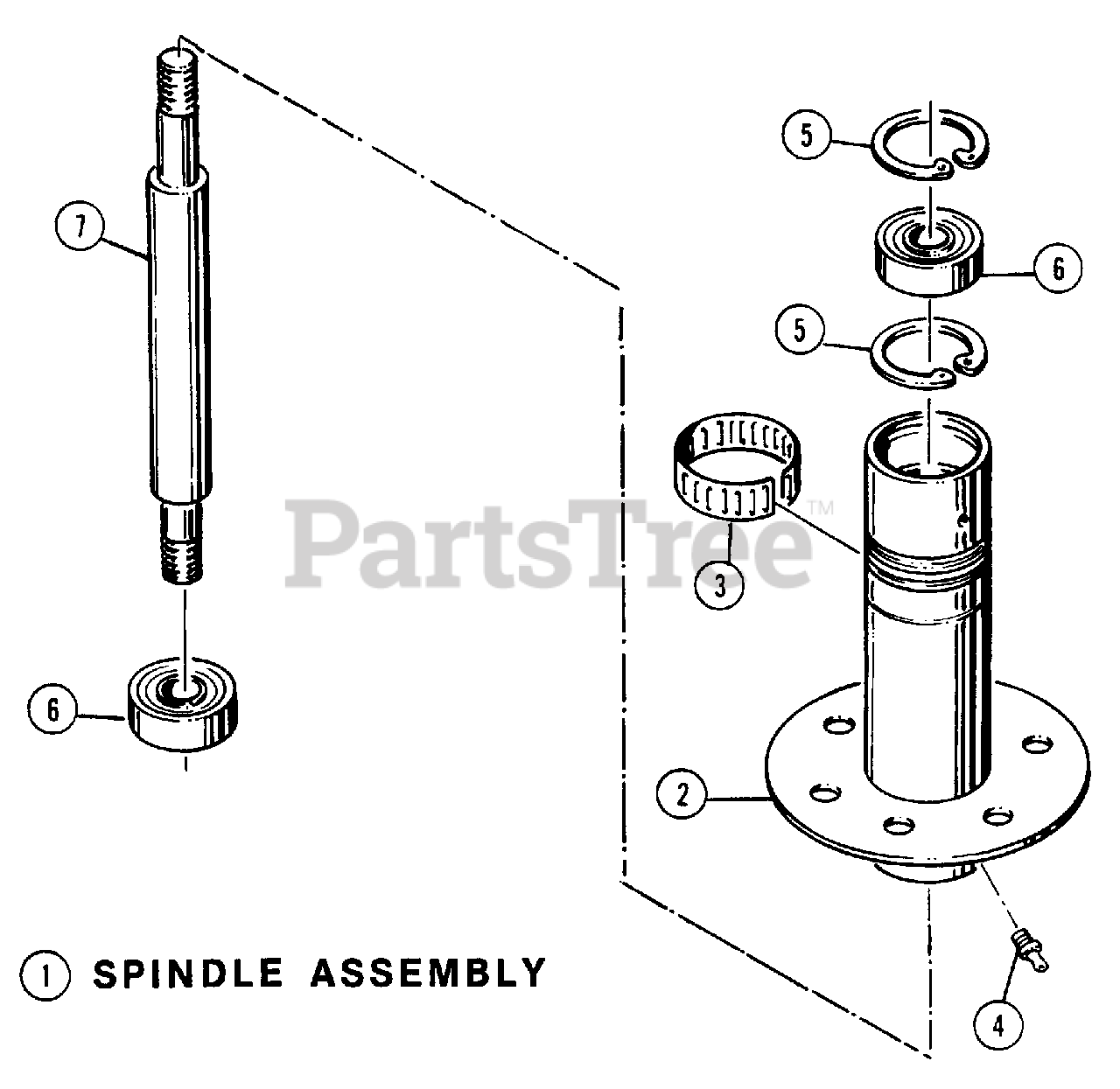

Spindle Assembly Parts Diagram

  • Title

1

Snapper 57295

ASSEMBLY, Spindle

Note: (Includes the following items 2-7)

$

$

Currently unavailable

2

Snapper 49694

HOUSING, Spindle

$

$

Currently unavailable

3

Snapper 7012670

RING, Tolerance
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 13

0

4

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, only 2 left!

0

5

Snapper 7012491

RING, Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7013313

BEARING, Ball
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

7

Snapper 27620

SPINDLE

$

$

Currently unavailable
