71200 (12-32 XL) - Toro Lawn Tractor (SN: 059000001 - 059100000) (1995) PEERLESS TRANSAXLE MODEL NO. 915-020 Parts Diagram

Lawn Tractor

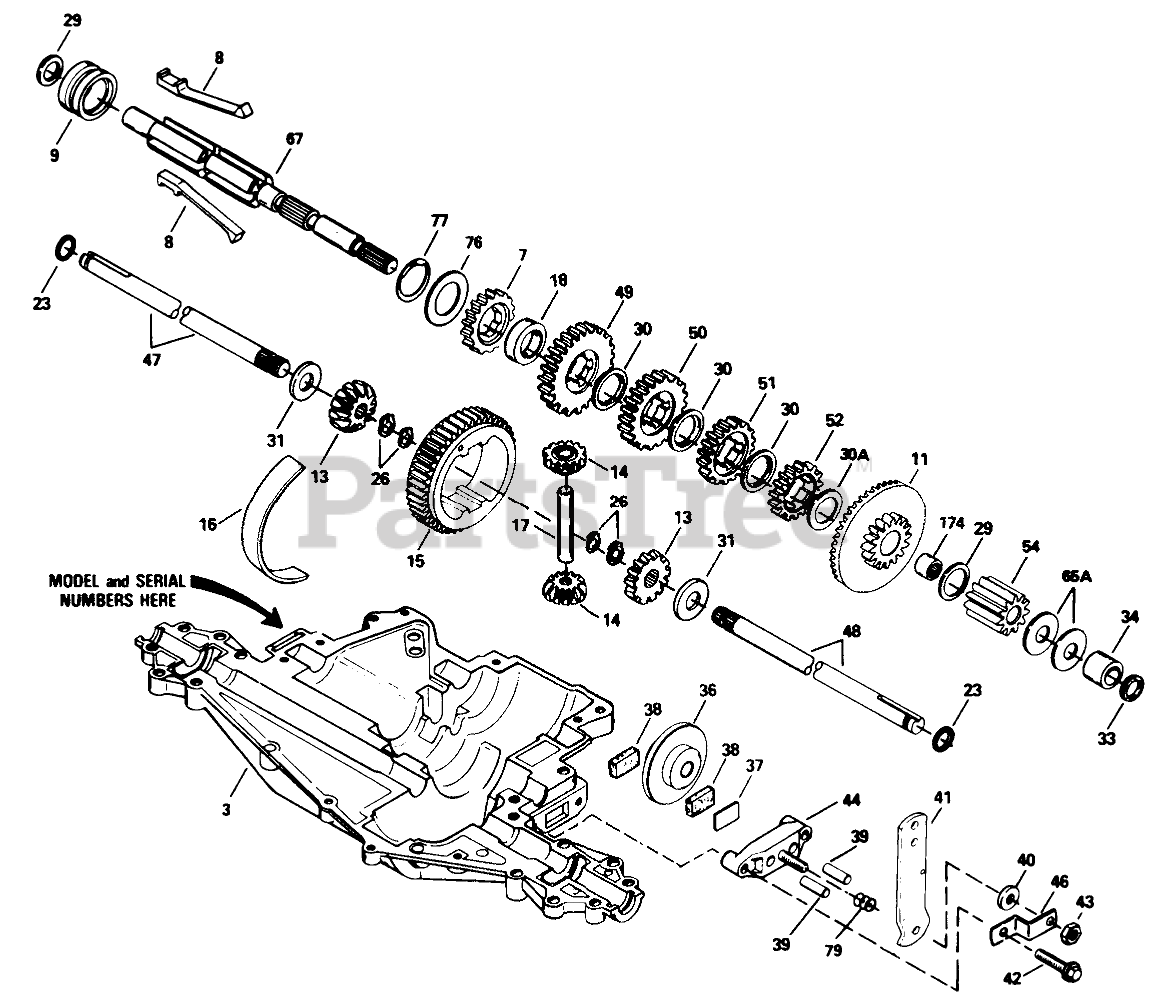

PEERLESS TRANSAXLE MODEL NO. 915-020 Parts Diagram

  • Title
3

Toro 770110

Transaxle Case

$

$

Currently unavailable

7

Toro 778122A

Gear-Spur (22 teeth)

$

$

Currently unavailable

8

Toro 792133

Shift Key

$

$

Currently unavailable

9

Toro 784352

Shift Collar

$

$

Currently unavailable

11

Toro 778261

Bevel Gear & Bearing (44/16 Teeth) (Incl. Ref. #174)

$

$

Currently unavailable

13

Toro 778221

Gear Bevel

$

$

Currently unavailable

14

Toro 778068

Gear Pinion

$

$

Currently unavailable

15

Toro 778260

Gear-Ring

$

$

Currently unavailable

16

Toro 786150

Bearing Strip

$

$

Currently unavailable

17

Toro 78139

Drive Pin

$

$

Currently unavailable

18

Toro 786147

Neutral Spacer

$

$

Currently unavailable

23

Toro 788061

Ring-Seal

$

$

Currently unavailable

26

Toro 792125

Retaining Ring (pkg of 2)

$

$

Currently unavailable

29

Toro 780072

Washer

$

$

Currently unavailable

30

Toro 780108

Washer

$

$

Currently unavailable

30A

Toro 789145

Washer

$

$

Currently unavailable

31

Toro 780001

Washer

$

$

Currently unavailable

33

Toro 788076

O-Ring

$

$

Currently unavailable

34

Toro 780159

Bushing

$

$

Currently unavailable

36

Toro 790071

Brake Disk

$

$

Currently unavailable

37

Toro 790007

Brake Pad Plate

$

$

Currently unavailable

38

Toro 790006

Brake Pad

$

$

Currently unavailable

39

Toro 786026

Dowel Pin

$

$

Currently unavailable

40

Toro 792076A

Washer

$

$

Currently unavailable

41

Toro 790045

Brake Lever

$

$

Currently unavailable

42

Toro 792073

Ring Set (.020 O S)

$

$

Currently unavailable

43

Toro 792075

Locknut

$

$

Currently unavailable

44

Toro 790025

Nozzle-Carburetor

$

$

Currently unavailable

46

Toro 786086

Bracket

$

$

Currently unavailable

47

Toro 774869

Axle (16-13/16" Ig.)

$

$

Currently unavailable

48

Toro 774688

Axle (11-5/8" Ig.) (Incl. Ref. #26)

$

$

Currently unavailable

49

Toro 778125

Gear-Spur, 35 Teeth

$

$

Currently unavailable

50

Toro 778250

Gear-Spur 27 Teeth

$

$

Currently unavailable

51

Toro 778313

Spur Gear (19 Teeth)

$

$

Currently unavailable

52

Toro 778121A

Gear-Spur 20 teeth

$

$

Currently unavailable

54

Toro 778263

Spur Gear (11 Teeth)

$

$

Currently unavailable

65A

Toro 780160

Washer

$

$

Currently unavailable

67

Toro 776352

Shifter & Brake Shaft

$

$

Currently unavailable

76

Toro 780090

Washer

$

$

Currently unavailable

77

Toro 788078A

Inverted Retaining Ring

$

$

Currently unavailable

79

Toro 792144

Piston ASM (.020 O S)

$

$

Currently unavailable

174

Toro 780085

Needle Bearing

$

$

Currently unavailable
