71205 (13-38 XL) - Toro Lawn Tractor (SN: 059000001 - 059999999) (1995) PEERLESS TRANSAXLE MODEL NO. 915-020 Parts Diagram

Lawn Tractor

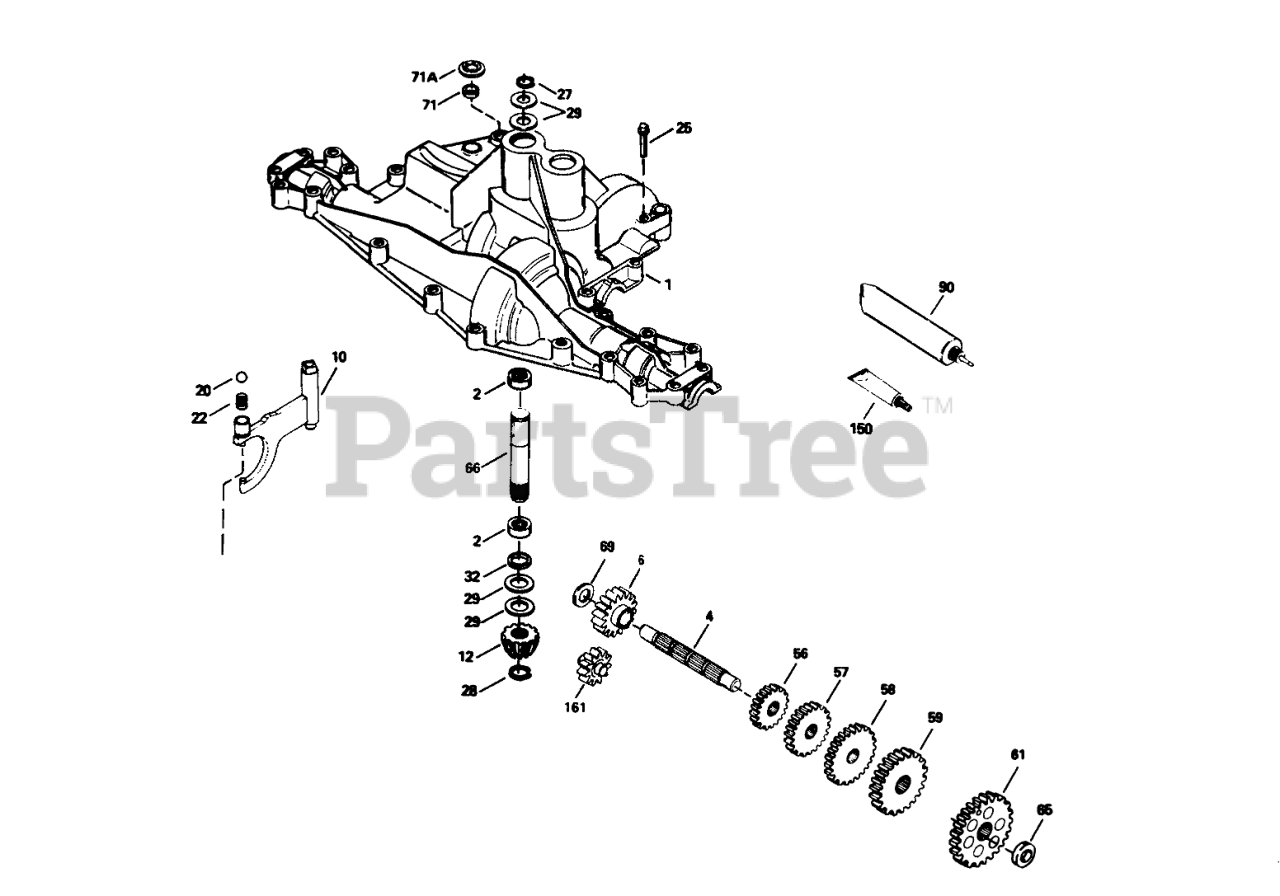

PEERLESS TRANSAXLE MODEL NO. 915-020 Parts Diagram

  • Title
1

Toro 772128

Transaxle Cover

$

$

Currently unavailable

4

Toro 776300

Countershaft

$

$

Currently unavailable

6

Toro 778281

Spur Gear (16 Teeth)

$

$

Currently unavailable

10

Toro 784370

Shift Rod & Fork

$

$

Currently unavailable

12

Toro 778262

Bevel Pinion (14 Teeth)

$

$

Currently unavailable

20

Toro 792139

Ball (3/8" dia.)

$

$

Currently unavailable

22

Toro 792142

Spring

$

$

Currently unavailable

25

Toro 792073

Ring Set (.020 O S)

$

$

Currently unavailable

27

Toro 792035

Ring-Snap

$

$

Currently unavailable

28

Toro 788040

Ring-Retainer

$

$

Currently unavailable

29

Toro 780072

Washer

$

$

Currently unavailable

32

Toro 792001

O Ring

$

$

Currently unavailable

56

Toro 778151

Gear-Spur, 15 Teeth

$

$

Currently unavailable

57

Toro 778249

Gear-Spur 23 Teeth

$

$

Currently unavailable

58

Toro 778314

Spur Gear (21 Teeth)

$

$

Currently unavailable

59

Toro 778129A

Gear-Spur (30 teeth)

$

$

Currently unavailable

61

Toro 778265

Spur Gear (34Teeth)

$

$

Currently unavailable

65

Toro 780162

Washer

$

$

Currently unavailable

66

Toro 776299

Input Shaft (3.522" Ig.)

$

$

Currently unavailable

69

Toro 780161

Thrust Washer

$

$

Currently unavailable

71

Toro 788069

Cut Seal-Square

$

$

Currently unavailable

71A

Toro 792145

Pushnut

$

$

Currently unavailable

90

Toro 788067b

Grease 32 Oz

$

$

Currently unavailable

150

Toro 510334

Gasket Eliminator

$

$

Currently unavailable

161

Toro 776302

Reverse Idler Assembly

$

$

Currently unavailable
