71240 (15-38 HXL) - Toro Lawn Tractor (SN: 099000001 - 099999999) (1999) 38" DECK BLADE DRIVE & BRAKE ASSEMBLY Parts Diagram

Lawn Tractor

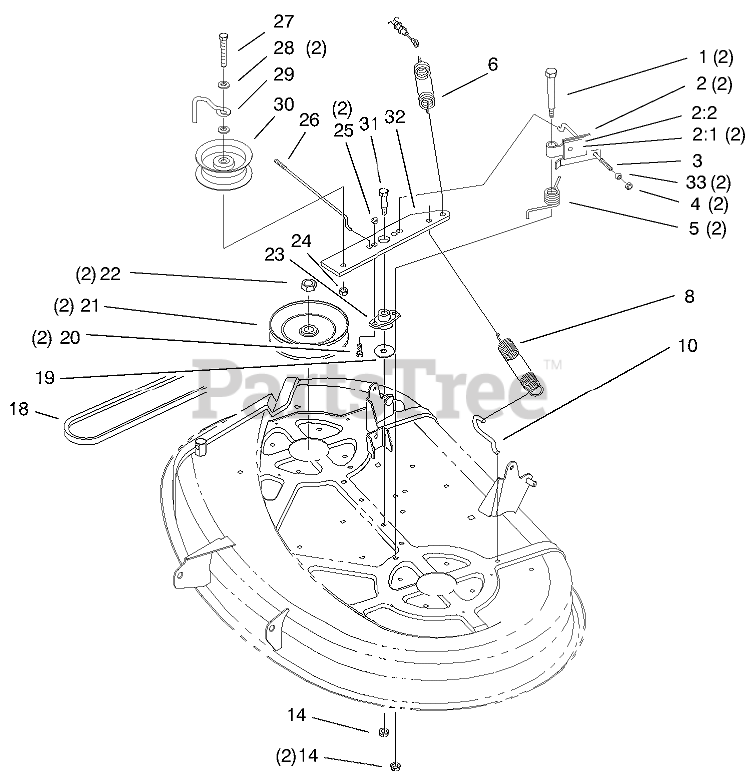

38" DECK BLADE DRIVE & BRAKE ASSEMBLY Parts Diagram

  • Title
1

Toro 88-4590

BOLT-SHOULDER

$11.99

$

In Stock, only 1 left!

0

2

Toro 88-6100

BRAKE ASM

$55.99

$

In Stock, only 3 left!

0

2:1

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

2:2

Toro 56-9830

PAD-BRAKE

$28.99

$

Usually ships in 3-6 days

0

3

Toro 88-5550

ROD-BRAKE, DECK LH

$16.99

$

Usually ships in 3-6 days

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 88-5910

SPRING-TORSION

$28.99

$

Usually ships in 3-6 days

0

6

Toro 88-6130

SPRING-DECK, ENGAGEMENT

$12.99

$

In Stock, only 1 left!

0

8

Toro 92-8934

SPRING-EXTENSION

$12.99

$

In Stock, only 1 left!

0

10

Toro 88-5970

HOOK-RETURN, SPRING
(Superseded to 138-7267)

$2.99

$

In Stock, Qty 10

0

14

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

18

Toro 88-6250

BELT-V

$45.99

$

In Stock, only 4 left!

0

19

Toro 3256-68

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

20

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 88-5330

PULLEY

$107.99

$

In Stock, only 2 left!

0

22

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

23

Toro 88-4980

BUSHING-ARM, IDLER

$14.99

$

In Stock, only 2 left!

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 88-5540

ROD-BRAKE, DECK RH

$16.99

$

Usually ships in 3-6 days

0

27

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 88-5070

GUIDE-IDLER, BELT
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 6

0

30

Toro 88-5630

PULLEY-IDLER, FLAT
(Superseded to 132-4717)

$22.99

$

In Stock, only 4 left!

0

31

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 2 left!

0

32

Toro 88-4870-03

ARM-IDLER

$50.99

$

Usually ships in 3-6 days

0

33

Toro 67-0710

BALL-SWIVEL, STOP

$3.99

$

In Stock, only 2 left!

0
