71240 (15-38 HXL) - Toro Lawn Tractor (SN: 099000001 - 099999999) (1999) HYDRO TRANSAXLE CONTROLS ASSEMBLY Parts Diagram

Lawn Tractor

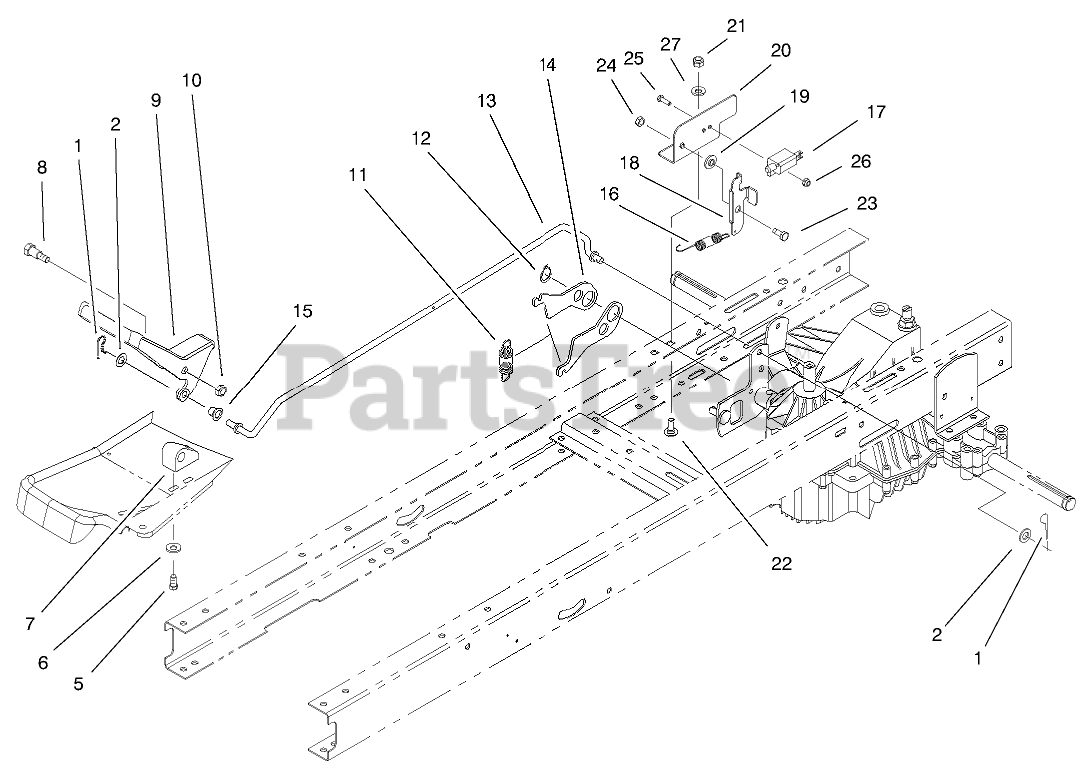

HYDRO TRANSAXLE CONTROLS ASSEMBLY Parts Diagram

  • Title
1

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

2

Toro 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

5

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 88-4690

BLOCK-PIVOT

$14.99

$

In Stock, only 3 left!

0

8

Toro 23-0310

SCREW-SHOULDER, HH

$24.99

$

Usually ships in 3-6 days

0

9

Toro 99-6120-05

PEDAL-CONTROL, SPEED

$26.99

$

Usually ships in 3-6 days

0

10

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

11

Toro 92-7305

SPRING-EXTENSION

$10.99

$

Usually ships in 3-6 days

0

12

Toro 32151-83

RING-SNAP

$0.99

$

Usually ships in 3-6 days

0

13

Toro 99-6803

ROD-SPEED CONTROL,1538

$113.99

$

Usually ships in 3-6 days

0

14

Toro 88-5610

NEUTRAL RETURN LEVER

$11.99

$

Usually ships in 3-6 days

0

15

Toro 99-6121

BUSHING-FLANGED

$3.99

$

Usually ships in 3-6 days

0

16

Toro 99-6805

SPRING-EXTENSION

$19.99

$

Usually ships in 3-6 days

0

17

Toro 95-1653

SWITCH-POLE, SINGLE

$19.99

$

Usually ships in 3-6 days

0

18

Toro 99-6807

BRACKET-PIVOT

$

$

Not available

19

Toro 99-6808

WASHER-STEPPED

$1.99

$

Usually ships in 3-6 days

0

20

Toro 99-6806

BRACKET-ADJUSTMENT

$

$

Not available

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 8

0

23

Toro 99-6810

SCREW-HHF

$3.49

$

In Stock, only 1 left!

0

24

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

25

Toro 3290-392

SCREW-SHH

$1.49

$

Usually ships in 3-6 days

0

26

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
