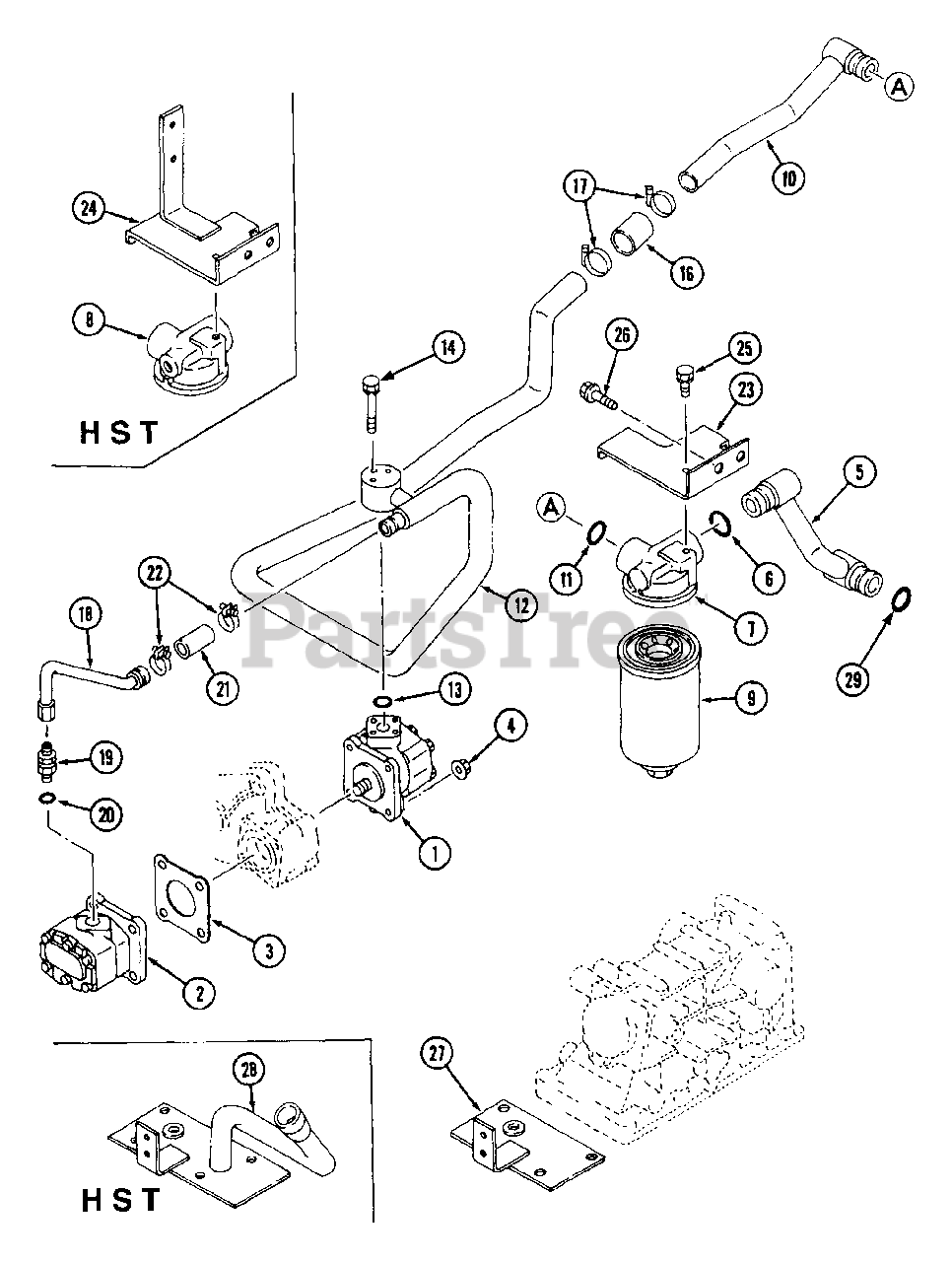

7192 (546-412D100) - Cub Cadet Compact Tractor Hydraulic Line - Gear Drive Parts Diagram

Compact Tractor

Hydraulic Line - Gear Drive Parts Diagram

  • Title

1

Cub Cadet MA-10352501001

Pump (Mod. No. 11-3844HL)

$

$

Not available

Cub Cadet MA-10352501002

Pump (Mod. No. 11-3844JL)

Note: Replaces MA-10352501001 when inventory is depleted

$

$

Not available

2

Cub Cadet MA-10302539002

Pump

$

$

Not available

3

Cub Cadet MA-67700-20101

Packing

$5.99

$

In Stock, Qty 5

0

4

Cub Cadet MA-F3010108001

Nut

$

$

Not available

5

Cub Cadet MA-19632503AG0

Pipe, A Suction

Note: Used with MA-19631211AG0 T/M Case (Refer to "Transmission Live" illustration and parts list)

$

$

Not available

Cub Cadet MA-19672503AG0

Pipe, A Suction

Note: Used with MA-19631211AG1 T/M Case (Refer to "Transmission Live" illustration and parts list)

$

$

Not available

6

Cub Cadet MA-08300100240

O-Ring

$

$

Not available

7

Cub Cadet MA-19632506AG0

Base, Filter

$440.99

$

Usually ships in 3-6 days

0

8

Base, Filter

Note: Not used on this product

$

$

Not available

9

Cub Cadet MA-11812303000

Filter

$135.99

$

Usually ships in 3-6 days

0

10

Cub Cadet MA-19632511AG0

Pipe, B Suction

$

$

Not available

11

Cub Cadet MA-08300100240

O-Ring

$

$

Not available

12

Cub Cadet MA-19632512AG1

Pipe, C Suction

$

$

Not available

13

Cub Cadet MA-08300100200

O-Ring

$

$

Not available

14

Cub Cadet MA-F1440106045

Bolt

$

$

Not available

16

Cub Cadet MA-19942526000

Hose B

$

$

Not available

17

Cub Cadet MA-HA230102000

Clip, Hose

$

$

Not available

18

Cub Cadet MA-19632513AG1

Pipe, E Ass'y.

$

$

Not available

19

Cub Cadet MA-06203115211

Body (Joint)

$

$

Not available

20

Cub Cadet MA-08301100180

O-Ring

$

$

Not available

21

Cub Cadet MA-19632515001

Hose

$

$

Not available

22

Cub Cadet MA-00501100240

Clamp, Hose

$

$

Not available

23

Cub Cadet MA-19632516AG0

Bracket

$

$

Not available

24

Bracket

Note: Not used on this product

$

$

Not available

25

Cub Cadet MA-F1540108020

Bolt

$

$

Not available

26

Cub Cadet MA-F1550110020

Bolt

$

$

Not available

27

Cub Cadet MA-19632504AG0

Cover

$

$

Not available

28

Cover

Note: Not used on this product

$

$

Not available

29

Cub Cadet MA-08300100240

O-Ring

Note: Used with MA-19632503AG0 Suction Pipe

$

$

Not available

Cub Cadet MA-08300100280

O-Ring

Note: Used with MA-19672503AG0 Suction Pipe

$2.99

$

Usually ships in 3-6 days

0
