7193 (546A422-100) - Cub Cadet Compact Tractor Fuel Line (Part 1) Parts Diagram

Compact Tractor

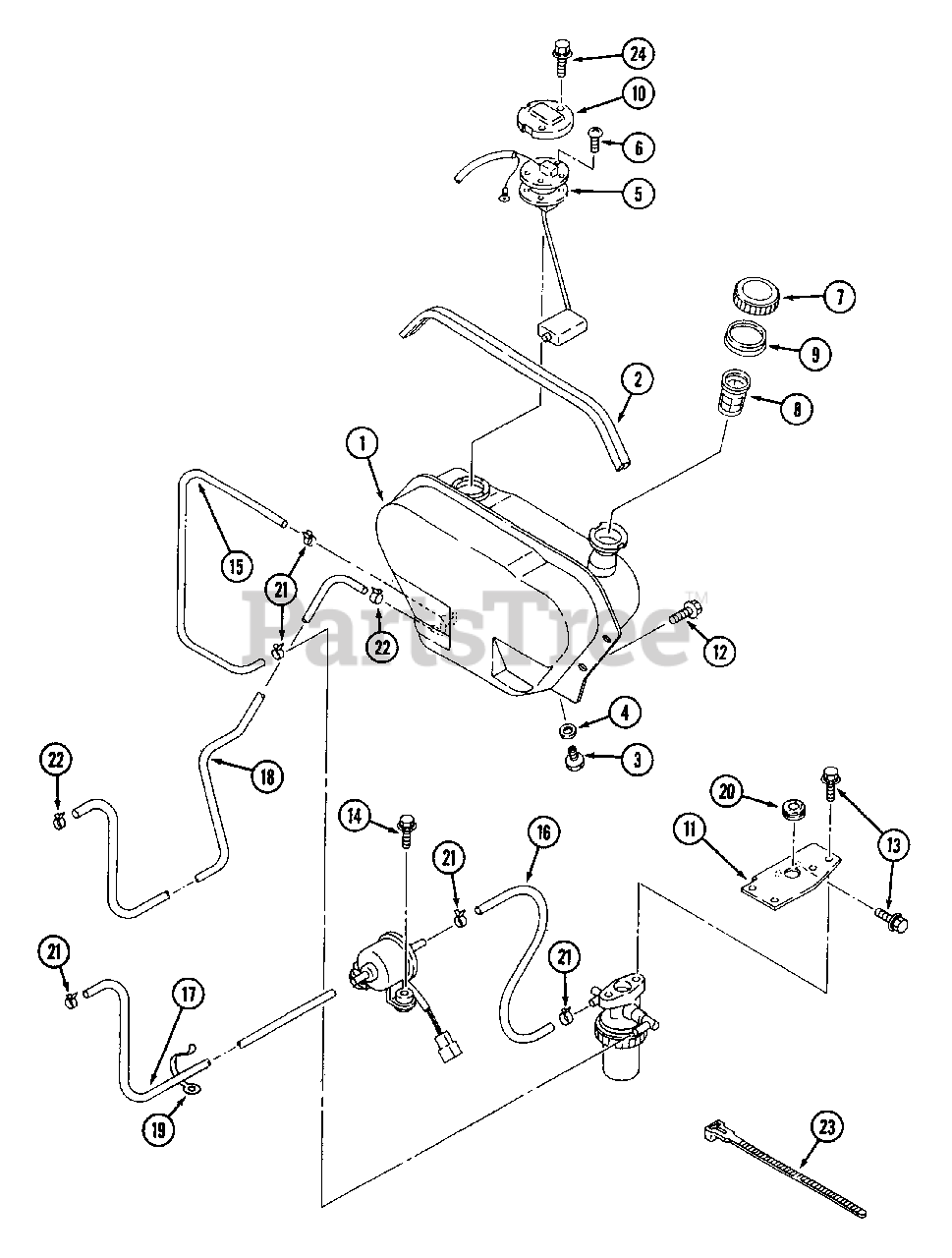

Fuel Line (Part 1) Parts Diagram

  • Title

Cub Cadet MA-19630101BD0

Tank Ass'y.

Note: Includes Items No. 1 through 10 & 24

$

$

Not available

1

Cub Cadet MA-19630103BD0

Tank,Fuel

$

$

Not available

2

Cub Cadet MA-19630105000

Trim

$

$

Not available

3

Cub Cadet MA-27403214200

Plug

$

$

Not available

4

Cub Cadet MA-08331000800

Washer, Seal

$

$

Not available

5

Cub Cadet MA-10210113000

Fuel Unit

$

$

Not available

6

Cub Cadet MA-H2420104012

Screw

$

$

Not available

7

Cub Cadet MA-09805000004

Cap

$31.99

$

In Stock, Qty 9

0

8

Cub Cadet MA-09806000002

Filter

$

$

Not available

9

Cub Cadet MA-09806100001

Packing

$

$

Not available

10

Cub Cadet MA-19630107BD0

Cover, Fuel Unit

$

$

Not available

11

Cub Cadet MA-19630112BD0

Bracket, Filter

$

$

Not available

12

Cub Cadet MA-H1540108025

Bolt

$

$

Not available

13

Cub Cadet MA-H1550110020

Bolt

$

$

Not available

14

Cub Cadet MA-H1640106025

Bolt
(Superseded to MA-H1940106025)

$

$

Not available

15

Cub Cadet MA-09810060450

Hose

$

$

Not available

16

Cub Cadet MA-09810060300

Hose

$

$

Not available

17

Cub Cadet MA-09810061750

Hose
(Superseded to MA-09810061850)

$69.99

$

Usually ships in 3-6 days

0

18

Cub Cadet MA-09810042050

Hose
(Superseded to MA-09810042150)

$

$

Not available

19

Cub Cadet MA-00502114083

Clamp

$

$

Not available

20

Cub Cadet MA-00401003000

Grommet

$

$

Not available

21

Cub Cadet MA-00504112005

Clamp, Hose

$9.49

$

In Stock, Qty 12

0

22

Cub Cadet MA-00504110005

Clamp, Hose

$

$

Not available

23

Cub Cadet MA-00511032070

Wire Band

$

$

Not available

24

Cub Cadet MA-H2420104016

Screw

$

$

Not available
