72051 (265-H) - Toro Lawn & Garden Tractor (SN: 210000001 - 210999999) (2001) STARTING SYSTEM ASSEMBLY Parts Diagram

Lawn & Garden Tractor

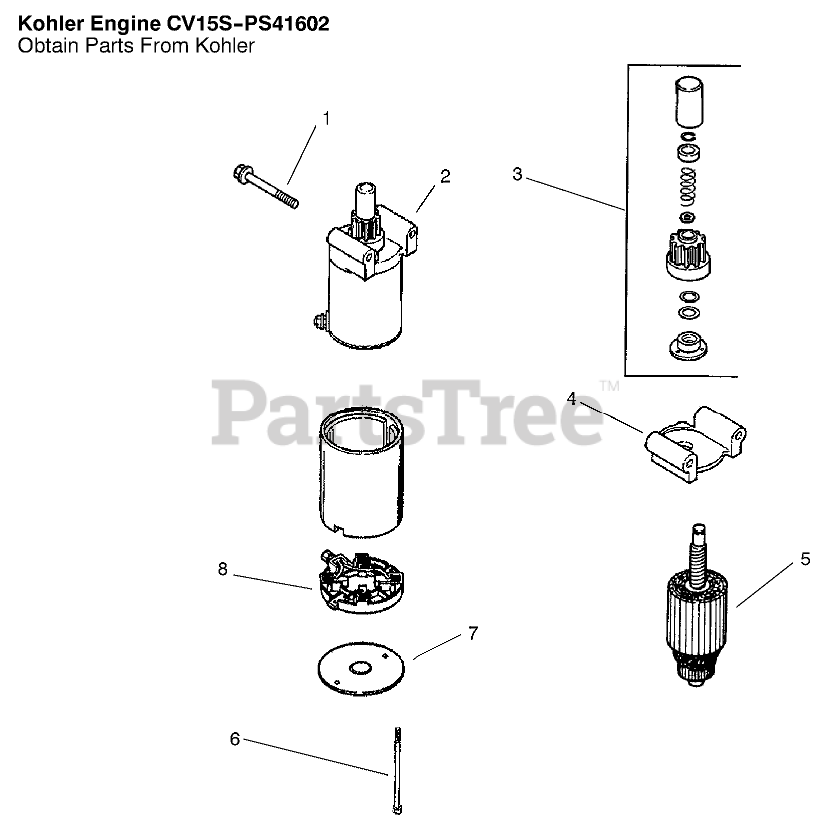

STARTING SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Kohler M-839070

Screw M8x1.25x70
(Superseded to M-839070-S)

$8.99

$

Usually ships in 2-5 days

0

2

1209815

Starter ASM (Incl. 3-8)

$

$

Not available

3

1275553

Kit-Drive

Note: Included in a service kit or in an assembly

$

$

Not available

4

1222719

Cap-Drive End

Note: Included in a service kit or in an assembly

$

$

Not available

5

1217005

Armature

Note: Included in a service kit or in an assembly

$

$

Not available

6

1221101

Bolt

Note: Included in a service kit or in an assembly

$

$

Not available

7

1222713

Commutator-End Cap

Note: Included in a service kit or in an assembly

$

$

Not available

8

1222101

Kit-Brush

Note: Included in a service kit or in an assembly

$

$

Not available
