72084 (266-H) - Toro Yard Tractor (SN: 069000001 - 069999999) (1996) AXLE SHAFT TUFF TORQ TRANSMISSION K61 (TORO) Parts Diagram

Yard Tractor

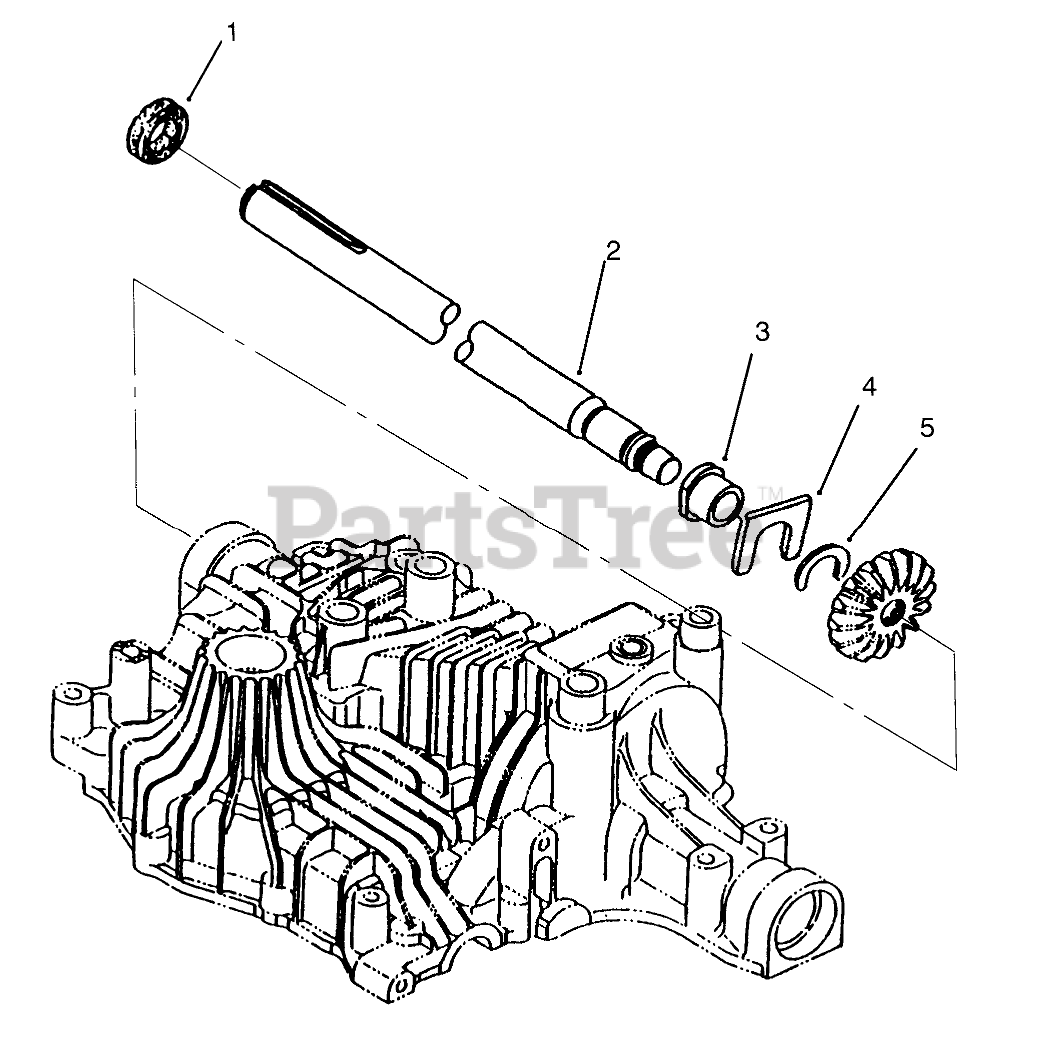

AXLE SHAFT TUFF TORQ TRANSMISSION K61 (TORO) Parts Diagram

  • Title

1

Toro 93-0451

SEAL

$

$

Not available

2

Toro 93-0452

Shaft-Axle Right
(Superseded to 99-3699)

$290.99

$

Usually ships in 3-6 days

0

3

Toro 93-0454

BUSHING

$

$

Not available

4

Toro 93-0455

WASHER - THRUST

$66.99

$

Usually ships in 3-6 days

0

5

Toro 93-0456

RING

$

$

Not available

Toro 93-0453

Shaft-Axle Left
(Superseded to 99-3698)

Note: Not illustrated

$290.99

$

Usually ships in 3-6 days

0
