72084 (266-H) - Toro Yard Tractor (SN: 069000001 - 069999999) (1996) SEAT Parts Diagram

Yard Tractor

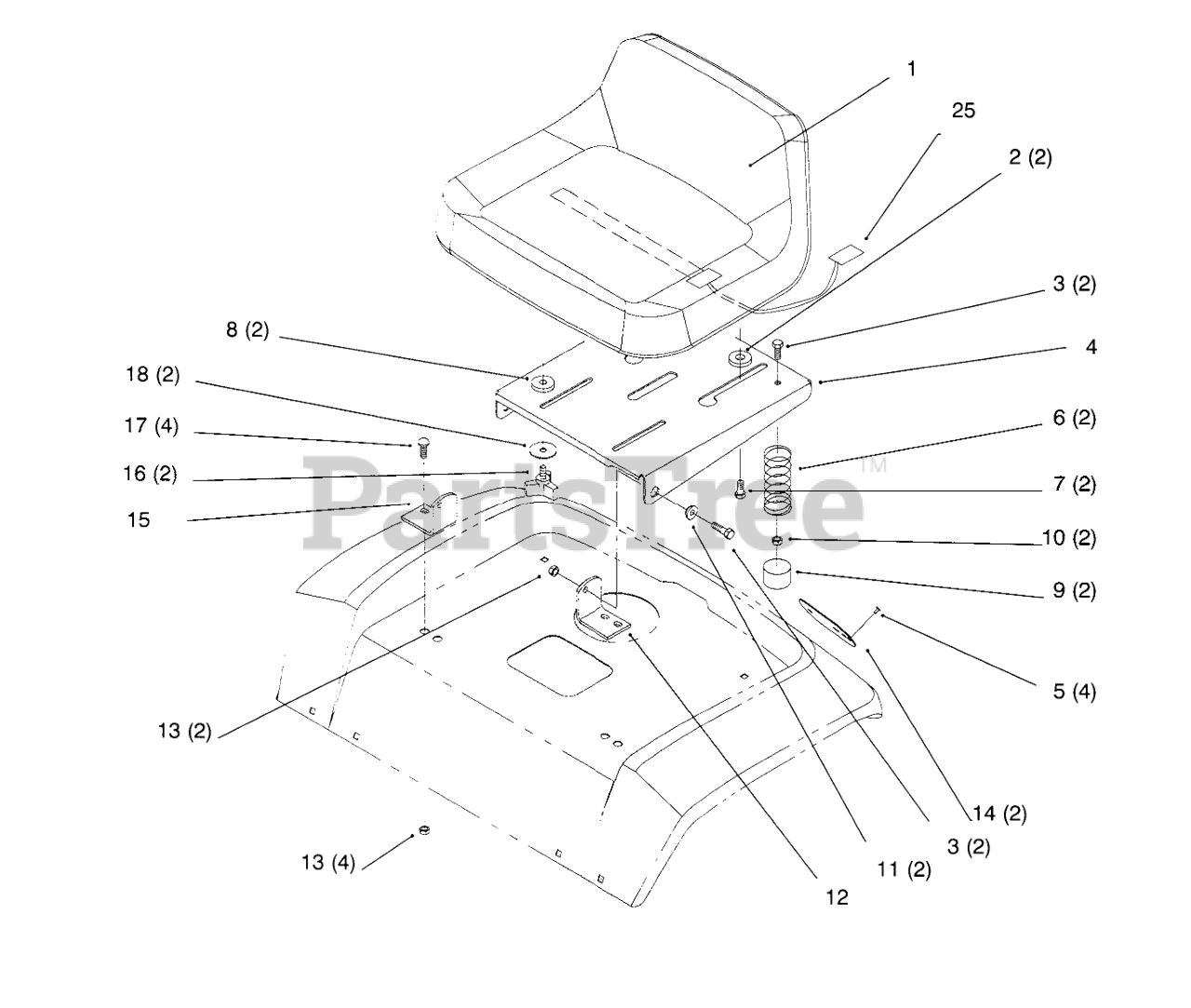

SEAT Parts Diagram

  • Title

1

Toro 92-6511

SEAT-V-511

$

$

Not available

2

Toro 92-6750

SPACER-NYLON

$16.99

$

Usually ships in 3-6 days

0

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 92-6972

Support-Seat
(Superseded to 92-6972-03)

$

$

Not available

5

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 12

0

6

Toro 92-7054

SPRING-COMPRESSION

$20.99

$

In Stock, Qty 19

0

7

Toro 92-6986

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

8

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

9

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 11

0

10

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

11

Toro 105503

BUSHING

$0.99

$

In Stock, Qty 9

0

12

Toro 79-0970

BRKT-PIVOT L.H. B
(Superseded to 79-0970-03)

$12.99

$

Usually ships in 3-6 days

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 106557

REFLECTOR-STICK ON

$

$

Not available

15

Toro 79-0950

Bracket-Pivot RH
(Superseded to 79-0950-03)

$14.99

$

Usually ships in 3-6 days

0

16

Toro 700806

KNOB

$19.99

$

In Stock, Qty 5

0

17

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

18

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

25

Toro 38-1420

SWITCH-SEAT

$

$

Not available
