72107 (268-HE) - Toro Lawn & Garden Tractor (SN: 230000001 - 230999999) (2003) HYDRAULIC CONTROL ASSEMBLY Parts Diagram

Lawn & Garden Tractor

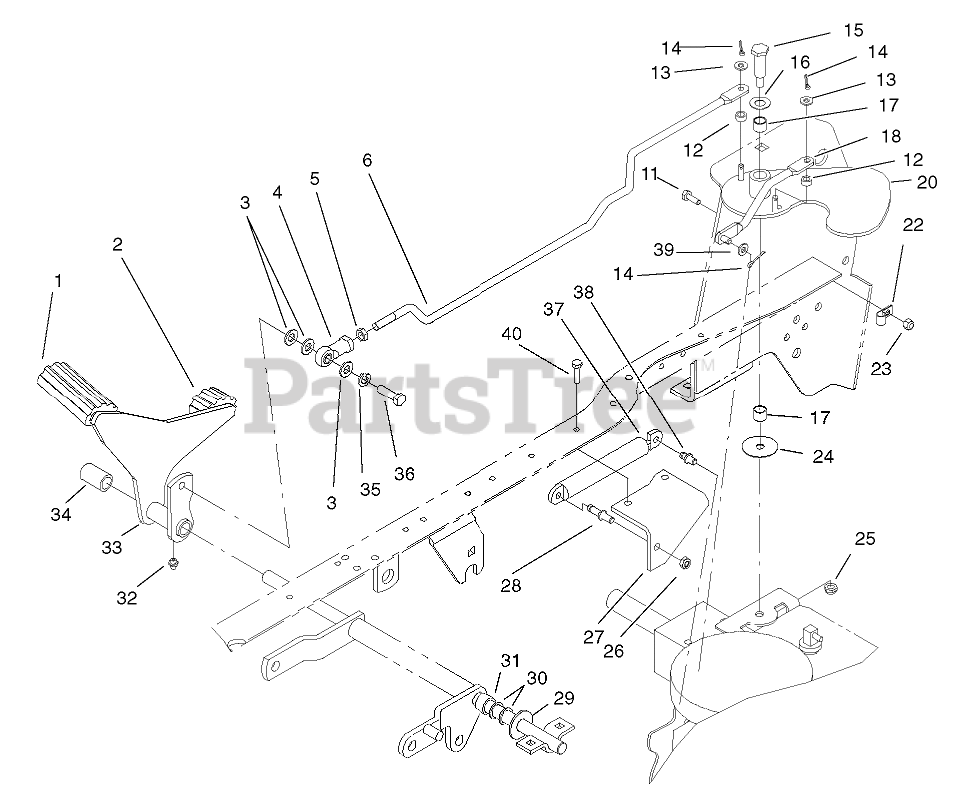

HYDRAULIC CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 92-6902

PAD-PEDAL

$

$

Not available

2

Toro 92-6903

PAD-PEDAL

$6.99

$

Usually ships in 3-6 days

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 92-7008

END-ROD, FEMALE

$50.99

$

Usually ships in 3-6 days

0

5

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 18

0

6

Toro 100-3450

ROD

$

$

Not available

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 92-6998

SPACER-YOKE, RIGHT

$6.99

$

Usually ships in 3-6 days

0

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

15

Toro 23-0310

SCREW-SHOULDER, HH

$24.99

$

Usually ships in 3-6 days

0

16

Toro 98-3087

WASHER

$

$

Not available

17

Toro 256-1

BUSHING

$28.99

$

In Stock, only 2 left!

0

18

Toro 100-3468

ROD-BELL CRANK

$

$

Not available

20

Toro 100-3451

PLATE-CRIUSE

$

$

Not available

22

Toro 2412-89

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Toro 94-7575

SPACER-CRUISE

$

$

Not available

25

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

26

Toro 3296-20

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

27

Toro 100-3460-03

BRACKET-GAS DAMPER

$

$

Not available

28

Toro 100-6057

PIN-BRACKET, DAMPER

$33.99

$

Usually ships in 3-6 days

0

29

Toro 94-6875

WASHER

$10.99

$

Usually ships in 3-6 days

0

30

Toro 9202154

WASHER-FLAT

$1.99

$

In Stock, Qty 5

0

31

Toro 94-4945

SPACER

$8.49

$

Usually ships in 3-6 days

0

32

Toro 302-26

FITTING-GREASE

$6.49

$

In Stock, only 1 left!

0

33

Toro 100-6062-03

PEDAL ASM

$

$

Not available

34

Toro 92-6966

SPACER

$

$

Not available

35

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

36

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

37

Toro 100-8732

DAMPER-GAS

$291.99

$

Usually ships in 3-6 days

0

38

Toro 100-6056

ARM-CONTROL, PIN DAMPER

$28.99

$

Usually ships in 3-6 days

0

39

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

40

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
