7233 (546E424-100) - Cub Cadet Compact Tractor Hydraulic Lift (Part 2) Parts Diagram

Compact Tractor

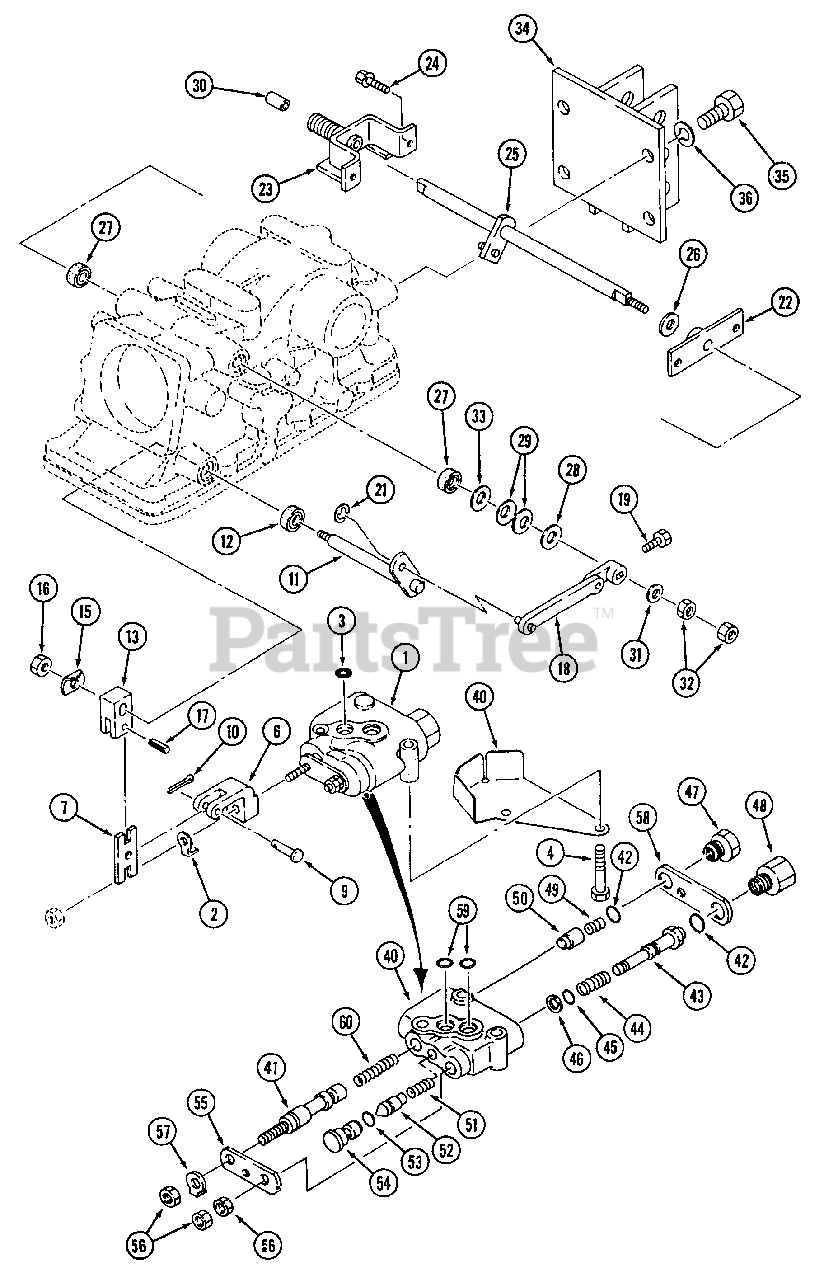

Hydraulic Lift (Part 2) Parts Diagram

  • Title

1

Cub Cadet MA-69473-40700

Valve, Control

Note: Include items #1, #2, and #3

$

$

Not available

2

Cub Cadet MA-11802471130

Plate, Stopper

$

$

Not available

3

Cub Cadet MA-08301100120

O-Ring

$

$

Not available

4

Cub Cadet MA-F1540108050

Bolt

$

$

Not available

6

Cub Cadet MA-10212425001

Fork

$

$

Not available

7

Cub Cadet MA-10032419001

Link, Valve

$

$

Not available

9

Cub Cadet MA-05620006030

Pin, Clevis

$

$

Not available

10

Cub Cadet MA-05200125016

Pin, Split
(Superseded to MA-05200125015)

$

$

Not available

11

Cub Cadet MA-10212424AG0

Shaft, Lever

$

$

Not available

12

Cub Cadet MA-08401012227

Oil Seal

$7.99

$

Usually ships in 3-6 days

0

13

Cub Cadet MA-10032415000

Shifter, Valve

$

$

Not available

15

Cub Cadet MA-11352426000

Plate

$

$

Not available

16

Cub Cadet MA-A3010108002

Nut

$

$

Not available

17

Cub Cadet MA-05500008016

Pin, Spring

$

$

Not available

18

Cub Cadet MA-19642453AG0

Lever Ass'y.

$

$

Not available

19

Cub Cadet MA-A0400106012

Bolt

$3.99

$

In Stock, only 1 left!

0

21

Cub Cadet MA-07420100600

Ring

$

$

Not available

22

Cub Cadet MA-19642456000

Plate

$

$

Not available

23

Cub Cadet MA-19642457000

Bracket

$

$

Not available

24

Cub Cadet MA-F1540108020

Bolt

$

$

Not available

25

Cub Cadet MA-19642458AG0

Shaft

$

$

Not available

26

Cub Cadet MA-19041264000

Lining, Brake

$

$

Not available

27

Cub Cadet MA-08401012227

Seal, Oil

$7.99

$

Usually ships in 3-6 days

0

28

Cub Cadet MA-03500151226

Washer

Note: S/N 20630 & below.

$

$

Not available

Cub Cadet MA-31212559000

Liner
(Superseded to MA-36301208000)

Note: S/N 20631 & above. Replaces MA-03500151226 by also ordering MA-19063258000.

$

$

Not available

29

Cub Cadet MA-36105725100

Spring

$

$

Not available

30

Cub Cadet MA-07961012120

Bushing

$

$

Not available

31

Cub Cadet MA-03500140818

Washer

$

$

Not available

32

Cub Cadet MA-A3010108002

Nut

$

$

Not available

33

Cub Cadet MA-19072433000

Washer

Note: S/N 20630 & below.

$

$

Not available

Cub Cadet MA-19063258000

Washer

Note: S/N 20631 & above. Replaces MA-19072433000 by also ordering MA-31212559000.

$

$

Not available

34

Cub Cadet MA-10213026AG0

Bracket, Top Link

$

$

Not available

35

Cub Cadet MA-A0400114030

Bolt

$

$

Not available

36

Cub Cadet MA-A3600101402

Washer

$

$

Not available

40

Cub Cadet MA-69473-40711

Body Ass'y.
(Superseded to MA-69473-40700)

$

$

Not available

41

Spool

Note: Order Ref. No. 40

$

$

Not available

42

Cub Cadet MA-08300100150

O-Ring

$

$

Not available

43

Cub Cadet MA-10032416140

Poppet

$

$

Not available

44

Cub Cadet MA-11802471190

Spring

$

$

Not available

45

Cub Cadet MA-08300100070

O-Ring

$

$

Not available

46

Cub Cadet MA-11802471180

Ring, Back Up

$16.99

$

Usually ships in 3-6 days

0

47

Cub Cadet MA-10032416150

Plug

$

$

Not available

48

Cub Cadet MA-69473-40712

Plug, Seat

$

$

Not available

49

Cub Cadet MA-11802471240

Spring
(Superseded to MA-11802471241)

$

$

Not available

50

Cub Cadet MA-10032416170

Valve, Unloader

$

$

Not available

51

Cub Cadet MA-19952436120

Spring

$

$

Not available

52

Cub Cadet MA-10032416180

Valve, Check

$

$

Not available

53

Cub Cadet MA-08301100090

O-Ring

$

$

Not available

54

Cub Cadet MA-10032416190

Seat

$112.99

$

In Stock, only 1 left!

0

55

Cub Cadet MA-69473-40713

Plate

$

$

Not available

56

Cub Cadet MA-A3010108003

Nut

$

$

Not available

57

Cub Cadet MA-11802471130

Plate, Stopper

$

$

Not available

58

Cub Cadet MA-69473-10711

Plate

$

$

Not available

59

Cub Cadet MA-08301100120

O-Ring

$

$

Not available

60

Cub Cadet MA-69473-10712

Spring, Return

$

$

Not available
