726 E (1695620) - John Deere 26" Snow Thrower (2009) Discharge Chute Parts Diagram

26" Snow Thrower

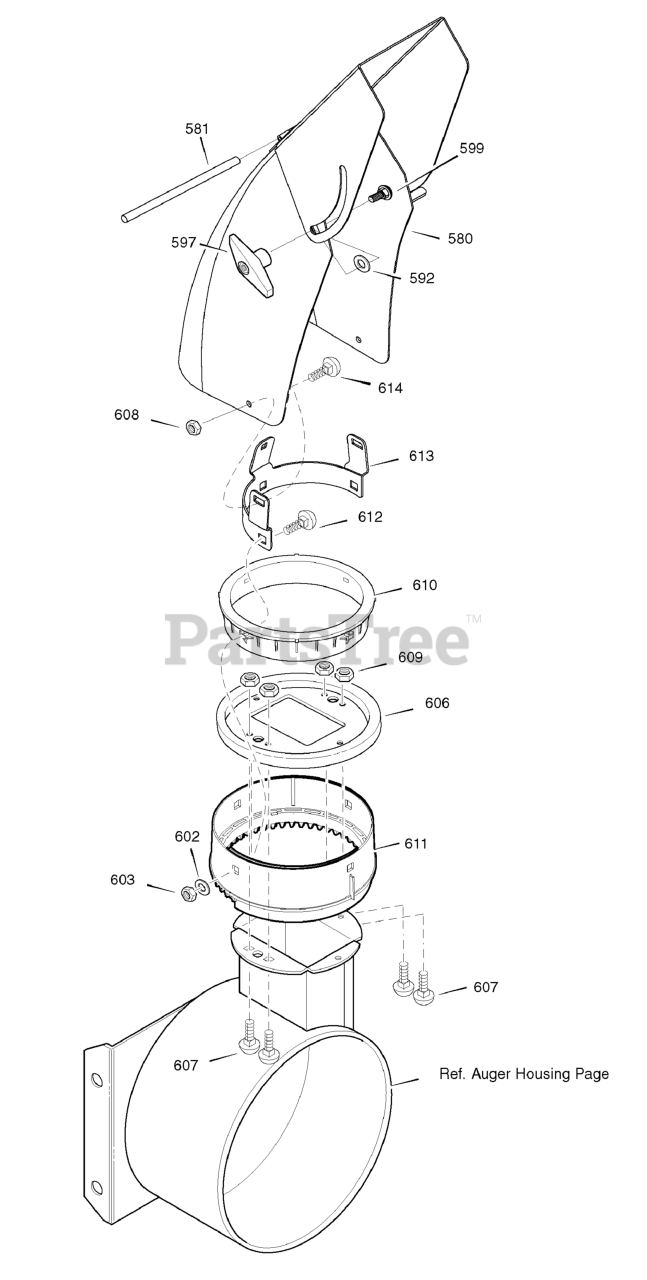

Discharge Chute Parts Diagram

  • Title

580

Murray 1738574AYP

DISCHARGE CHUTE

$136.99

$

Usually ships in 2-12 days

0

581

Murray 305216MA

PIN

$6.49

$

Usually ships in 2-12 days

0

592

Murray 12021MA

WASHER, PLASTIC

$3.99

$

In Stock, only 4 left!

0

597

Murray 1501260MA

KNOB, T 3.00

$7.99

$

In Stock, Qty 9

0

599

Murray 002X97MA

BOLT, 5/16-18 X 1.50
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

602

Murray 71071MA

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, Qty 5

0

603

Murray 71038MA

NUT, 5/16-18 HEXNYL
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

606

Murray 1501932YZMA

CHUTE COLLAR

$28.99

$

In Stock, only 1 left!

0

607

Murray 02X101MA

SCREW, 1/4-20 X 0.75
(Superseded to 703440)

$3.99

$

In Stock, Qty 8

0

608

Murray 2860694SM

NUT, Hex Flange, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

609

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

610

Murray 337227MA

RETAINER RING INNER

$17.99

$

In Stock, Qty 20+

0

611

Murray 1501282MA

RETAINER RING OUTER

$26.99

$

In Stock, only 3 left!

0

612

Murray 2X100MA

BOLT, 5/16-18 X 1.00
(Superseded to 704217)

$

$

Not available

613

Murray 1737744AYP

ADAPTER, Chute Ring

$20.99

$

Usually ships in 2-12 days

0

614

Murray 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4, G5
(Superseded to 703101)

$3.99

$

In Stock, only 4 left!

0
