7260 (54A-435D100) - Cub Cadet Compact Tractor Electrical Equipment 26 HP Engine Parts Diagram

Compact Tractor

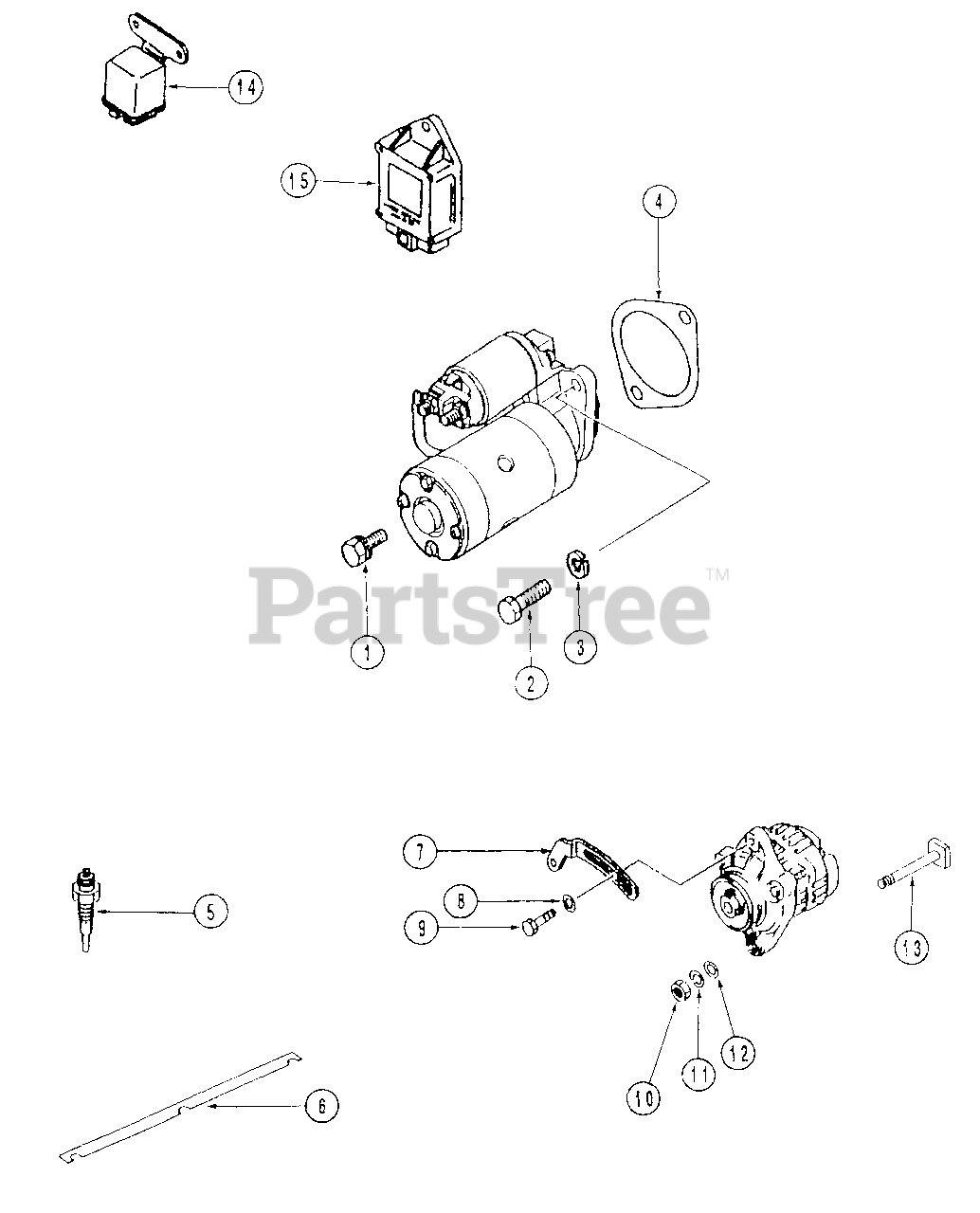

Electrical Equipment 26 HP Engine Parts Diagram

  • Title

1

Cub Cadet MA-F1805-10025

Bolt, W/Washer

$

$

Currently unavailable

2

Cub Cadet MA-MM409427

Bolt, Starter

$

$

Not available

3

Cub Cadet MA-MF450406

Spring, Washer
(Superseded to MA-A3600101002)

$

$

Not available

4

Cub Cadet MA-MM40941901

Gasket, Starter
(Superseded to MA-30A66-00100)

$

$

Not available

5

Cub Cadet MA-31A66-03200

Plug, Glow
(Superseded to MA-31A66-13200)

$85.99

$

In Stock, only 3 left!

0

6

Cub Cadet MA-31B66-04100

Plate, Connection

$

$

Not available

7

Cub Cadet MA-31A68-02100

Plate, Adjusting

$

$

Not available

8

Cub Cadet MA-MD001521

Washer

$

$

Not available

9

Cub Cadet MA-MF140026

Bolt, Flange

$

$

Not available

10

Cub Cadet MA-MF430006

Nut

$

$

Currently unavailable

11

Cub Cadet MA-MF450406

Spring, Washer
(Superseded to MA-A3600101002)

$

$

Not available

12

Cub Cadet MA-MF450006

Washer, Plain

$

$

Currently unavailable

13

Cub Cadet MA-31A68-20300

Bolt, Alternator

$

$

Not available

14

Cub Cadet MA-MM43128201

Relay, Glow
(Superseded to MA-MM43128202)

$128.99

$

In Stock, only 3 left!

0

15

Cub Cadet MA-31A66-05100

Controller, Glow
(Superseded to MA-31A66-25100)

$190.99

$

In Stock, only 2 left!

0
