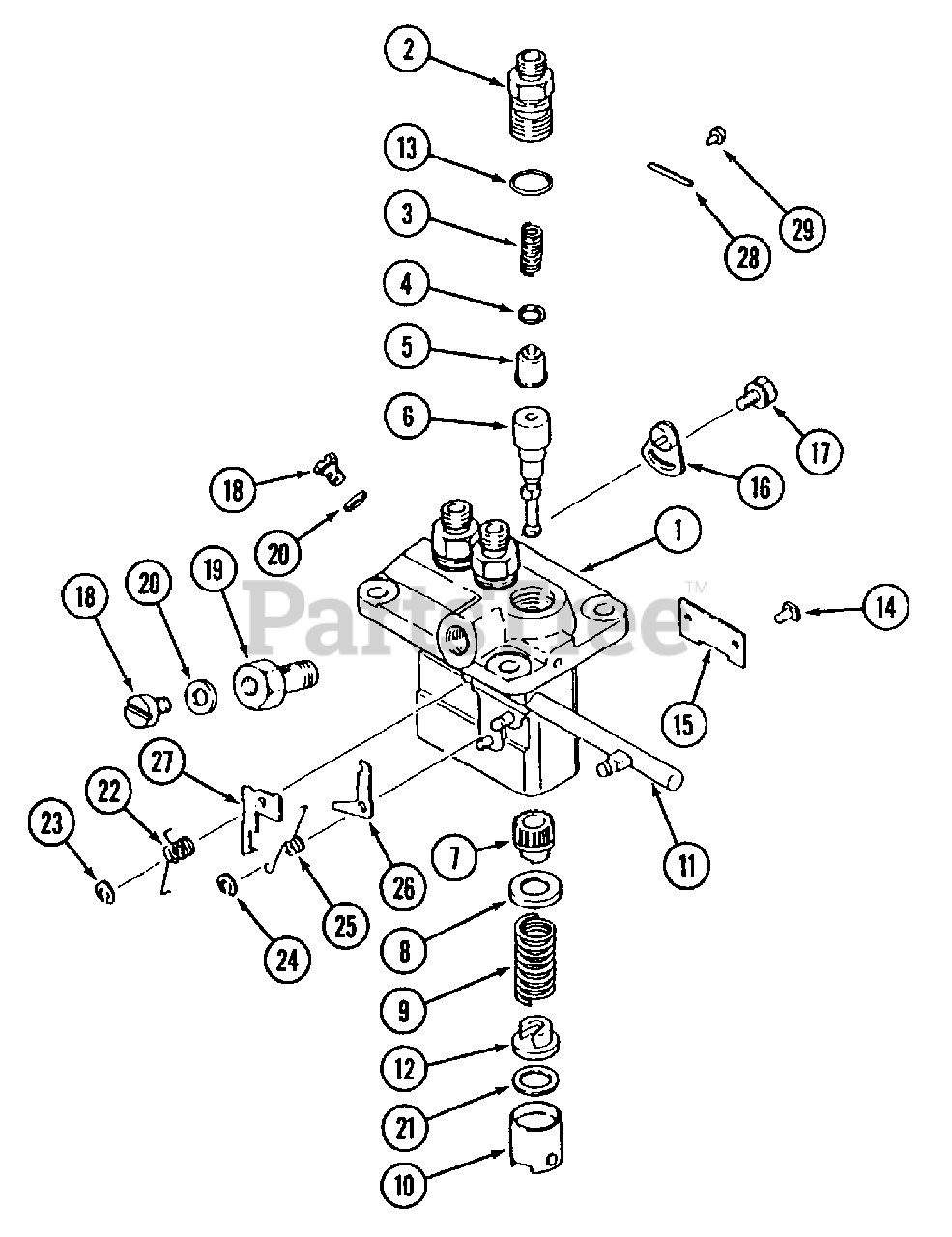

7274 (546-436D100) - Cub Cadet Compact Tractor Fuel Injector Pump Parts Diagram

Compact Tractor

Fuel Injector Pump Parts Diagram

  • Title

Cub Cadet MA-30H65-01200

Pump Ass'y., Fuel Injection

$

$

Not available

1

Cub Cadet MA-MM501404

Housing Sub Ass'y., Pump

$

$

Not available

2

Cub Cadet MA-MM501754

Holder, Delivery Valve

$

$

Not available

3

Cub Cadet MA-MM514073

Spring, Delivery Valve
(Superseded to MA-09013-60940)

$

$

Not available

4

Cub Cadet MA-MM501856

Gasket, Delivery Valve
(Superseded to MA-09013-70130)

$

$

Not available

5

Cub Cadet MA-MM514226

Valve Sub Ass'y., Delivery
(Superseded to MA-09014-02100)

$

$

Not available

6

Cub Cadet MA-MM514167

Element Sub Ass'y., Pump
(Superseded to MA-09015-04650)

$

$

Not available

7

Cub Cadet MA-MM500229

Sleeve, Control
(Superseded to MA-09016-10210)

$29.99

$

In Stock, only 3 left!

0

8

Cub Cadet MA-MM501098

Seat, Spring Upper

$5.49

$

Usually ships in 3-6 days

0

9

Cub Cadet MA-MM500360

Spring, Pump Plunger
(Superseded to MA-09016-40170)

$

$

Not available

10

Cub Cadet MA-MM500230

Tappet Ass'y.
(Superseded to MA-09017-00170)

$

$

Not available

11

Cub Cadet MA-MM501311

Pack Ass'y., Control
(Superseded to MA-09021-00470)

$

$

Not available

12

Cub Cadet MA-MM500316

Seat, Spring Lower
(Superseded to MA-09030-10060)

$

$

Not available

13

Cub Cadet MA-MM500438

O-Ring
(Superseded to MA-90802-20150)

$

$

Not available

14

Cub Cadet MA-MM500231

Pin, Tappet Guide
(Superseded to MA-09018-30050)

$

$

Not available

15

Cub Cadet MA-MM501162

Plate
(Superseded to MA-09046-70040)

$25.99

$

Usually ships in 3-6 days

0

16

Cub Cadet MA-MM514109

Plate, Adjusting
(Superseded to MA-09006-80020)

$

$

Not available

17

Cub Cadet MA-MM514195

Bolt, Washer Hade

$

$

Not available

18

Cub Cadet MA-MM501152

Screw, Air Bleeder

$

$

Not available

19

Cub Cadet MA-MM500446

Screw, Hollow

$

$

Not available

20

Cub Cadet MA-MM500114

Washer, Pipe Union

$

$

Not available

21

Cub Cadet MA-MM500299

Shim, Plate Tappet t=0.6
(Superseded to MA-09031-10010)

$

$

Not available

Cub Cadet MA-MM500309

Shim, Plate Tappet t=0.2

$

$

Not available

Cub Cadet MA-MM500310

Shim, Plate Tappet t=0.3

$

$

Not available

Cub Cadet MA-MM500311

Shim, Plate Tappet t=0.4

$

$

Not available

Cub Cadet MA-MM500312

Shim, Plate Tappet t=0.5

$

$

Not available

Cub Cadet MA-MM500314

Shim, Plate Tappet t=0.25

$

$

Not available

Cub Cadet MA-MM500315

Shim, Plate Tappet t=0.35

$

$

Not available

Cub Cadet MA-MM501246

Shim, Plate Tappet t=0.45

$

$

Not available

Cub Cadet MA-MM501364

Shim, Plate Tappet t=0.55

$

$

Not available

Cub Cadet MA-MM501365

Shim, Plate Tappet t=0.65

$

$

Not available

22

Cub Cadet MA-MM501247

Spring, Smoke Set
(Superseded to MA-09055-40280)

$

$

Not available

23

Cub Cadet MA-MM501496

E-Ring

$

$

Not available

24

Cub Cadet MA-MM500507

E-Ring

$

$

Not available

25

Cub Cadet MA-MM514131

Spring Angleich Set

$

$

Not available

26

Cub Cadet MA-MM501497

Plate, Angleich Set Mark 6

$

$

Not available

Cub Cadet MA-MM501498

Plate, Angleich Set Mark 7

$

$

Not available

Cub Cadet MA-MM501499

Plate, Angleich Set Mark 8

$

$

Not available

Cub Cadet MA-MM501500

Plate, Angleich Set Mark 9

$

$

Not available

Cub Cadet MA-MM501501

Plate, Angleich Set Mark 10

$

$

Not available

Cub Cadet MA-MM501747

Plate, Angleich Set Mark 11

$

$

Not available

Cub Cadet MA-MM501748

Plate, Angleich Set Mark 12

$

$

Not available

27

Cub Cadet MA-MM501567

Plate, Smoke Set Mark 62

$

$

Not available

Cub Cadet MA-MM501268

Plate, Smoke Set Mark 63

$

$

Not available

Cub Cadet MA-MM501568

Plate, Smoke Set Mark 64

$

$

Not available

Cub Cadet MA-MM501269

Plate, Smoke Set Mark 65

$

$

Not available

Cub Cadet MA-MM501569

Plate, Smoke Set Mark 66

$

$

Not available

Cub Cadet MA-MM501270

Plate, Smoke Set Mark 67

$

$

Not available

Cub Cadet MA-MM501570

Plate, Smoke Set Mark 68

$

$

Not available

Cub Cadet MA-MM501271

Plate, Smoke Set Mark 69

$

$

Not available

Cub Cadet MA-MM501571

Plate, Smoke Set Mark 70

$

$

Not available

Cub Cadet MA-MM501272

Plate, Smoke Set Mark 71

$

$

Not available

Cub Cadet MA-MM501572

Plate, Smoke Set Mark 72

$

$

Not available

Cub Cadet MA-MM501273

Plate, Smoke Set Mark 73

$

$

Not available

Cub Cadet MA-MM501573

Plate, Smoke Set Mark 74

$

$

Not available

Cub Cadet MA-MM501274

Plate, Smoke Set Mark 75

$

$

Not available

Cub Cadet MA-MM501575

Plate, Smoke Set Mark 76

$

$

Not available

28

Cub Cadet MA-MM514460

Plate, Name

$

$

Not available

29

Cub Cadet MA-MM500429

Rivet

$

$

Not available
