728 (990577) - Simplicity Broadmoor Lawn Tractor, 7hp Frame, Hood & Dash Group Parts Diagram

Broadmoor Lawn Tractor, 7hp

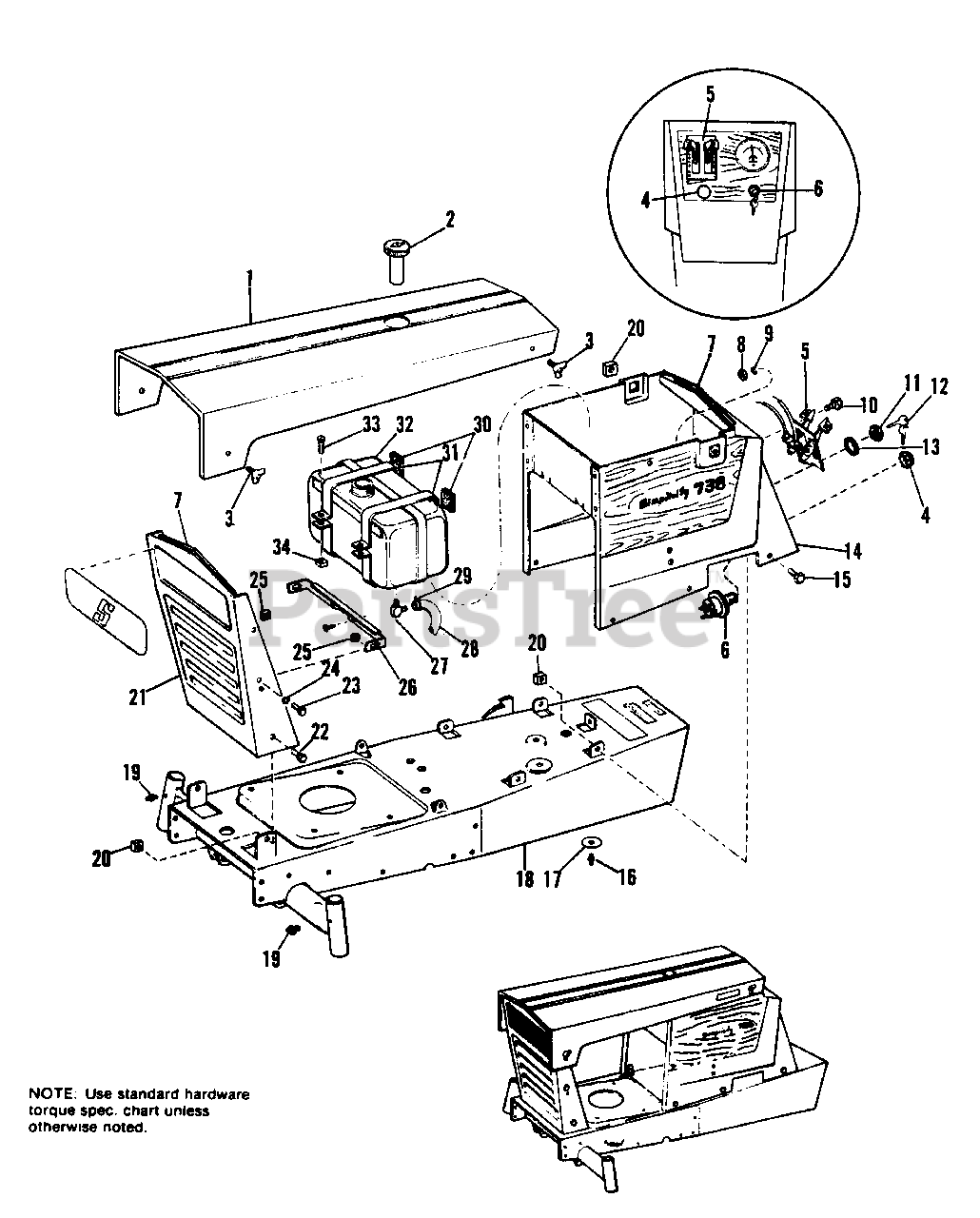

Frame, Hood & Dash Group Parts Diagram

  • Title

1

Simplicity 165041

HOOD

$

$

Not available

2

Simplicity 2156175SM

CAP, Fuel Tank

$31.99

$

In Stock, only 4 left!

0

3

Simplicity 2828693

SCREW, Thumb, 5/16-18 x 3/4

$

$

Not available

4

Simplicity 2156319

BUTTON, Plug

$

$

Not available

5

Simplicity 165079

CONTROL, Dual

$

$

Not available

6

Simplicity 1686702SM

SWITCH, Ignition

$

$

Not available

7

Simplicity 156372

DAMPENER, Vibration

$

$

Not available

8

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

9

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

10

Simplicity 2818240

CAPSCREW, Hex Hd., 1/4-20 x 1-1/2

$

$

Not available

11

Simplicity 122235

NUT, Special

$

$

Not available

12

Simplicity 1717163SM

KEYS

$8.99

$

In Stock, Qty 12

0

13

Simplicity 928636

LOCKWASHER. Int., 9/16

$

$

Not available

14

Simplicity 170090

DASH ASSY.

$

$

Not available

15

Simplicity 2827428

SCREW, Hex, Taptite, 1/4-20 x 3/8

$

$

Not available

16

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

17

Simplicity 2823212

WASHER, Plain, #10

$

$

Not available

18

Simplicity 174680

FRAME ASSY.

$

$

Not available

18

Simplicity 174680

FRAME ASSY.

$

$

Not available

19

Simplicity 2814687

FITTING, Grease

$

$

Not available

20

Simplicity 2830659

NUT, Retainer

$

$

Not available

21

Simplicity 176356

GRILLE ASSY.

$

$

Not available

22

Simplicity 2828729

SCREW, Hex, Taptite, 5/16-18 x 3/8

$

$

Not available

23

Simplicity 2825205

CAPSCREW, Hex Hd., 5/16-18 x 5/8

$

$

Not available

24

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 2820470

NUT, Retainer

$

$

Not available

26

Simplicity 165056

GRILLE, Support

$

$

Not available

27

Simplicity 174640

VALVE, Shutoff (990780 & 990904 Only)

$

$

Not available

28

Simplicity 1718678SM

HOSE, Fuel

$

$

Not available

29

Simplicity 2154372

CLAMP, Hose

$

$

Not available

30

Simplicity 106582

GASKET, Felt

$

$

Not available

31

Simplicity 156178

STRAP, Tank

$

$

Not available

32

Simplicity 156174

TANK, Fuel

$

$

Not available

33

Simplicity 917492

SCREW, Machine, Fillister Hd., 1/4-20 x 1-3/4

$

$

Not available

34

Simplicity 930623

NUT, Square, 1/4-20

$

$

Not available
