73 (2050036U) - Cub Cadet Garden Tractor Engine Driven Power Take-Off Parts Diagram

Garden Tractor

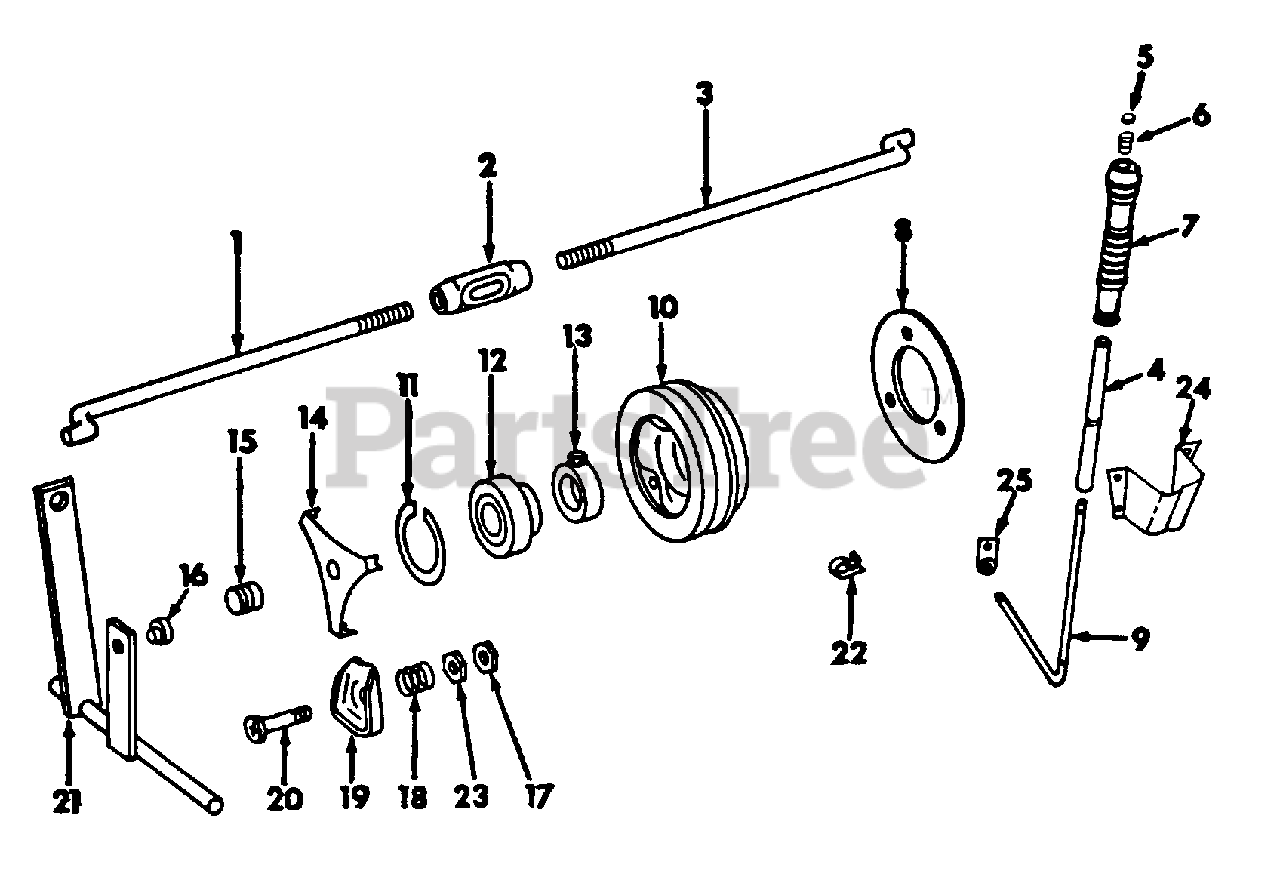

Engine Driven Power Take-Off Parts Diagram

  • Title

Cub Cadet IH-546775-R92

PTO Clutch Assy

$

$

Not available

1

Cub Cadet IH-473484-R1

Rod, Clutch

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet IH-473589-R1

Turnbuckle, Rod

$

$

Not available

3

Cub Cadet IH-530051-R1

Rod, Rear Clutch

$

$

Not available

4

Cub Cadet IH-528887-R1

Handle, PTO

$

$

Not available

5

~NLA

Spacer, Handle

$

$

Not available

6

Cub Cadet IH-528889-R1

Spring, Handle Return

$

$

Not available

Cub Cadet IH-110668-R1

Ring, Retainer

$

$

Currently unavailable

7

Cub Cadet IH-528893-R1

Grip, Handle

$

$

Not available

8

Cub Cadet IH-473471-R1

Plate, Pressure

$147.99

$

Usually ships in 3-6 days

0

9

Cub Cadet IH-528883-R1

Rod, PTO Control

$

$

Not available

Washer, 15/32 X 10 Ga C-Z

Note: Common Hardware Purchase Locally

$

$

Not available

10

Cub Cadet IH-59983-C1

Pulley, Mower Actuating
(Superseded to IH-59983-C3)

$189.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-23025-R1

Screw, 1/4-20 X 1/2 Hex Soc Hd Cone Pt Set

$16.99

$

In Stock, only 2 left!

0

Cub Cadet IH-23026-R1

Screw, 1/4-20 X 1/4 Hex Soc Hd F Pt Set

$

$

Not available

11

Cub Cadet IH-473475-R1

Ring, Snap 2.197 O.D., For Pulley

$9.99

$

In Stock, only 1 left!

0

12

Cub Cadet IH-60071-C91

Bearing, Ball
(Superseded to IH-60071-C92)

$56.99

$

In Stock, Qty 6

0

Cub Cadet IH-60072-C1

Snap Ring For Bearing

$

$

Not available

13

Cub Cadet IH-455102-R21

Collar w/Set Screw & Lock Nut, Brg
(Superseded to IH-455102-R22)

$

$

Not available

14

Spring, Pressure

Note: (Order 759-3490)

$

$

Not available

15

Cub Cadet IH-473477-R2

Button, Thrust

$14.99

$

In Stock, Qty 15

0

16

Cub Cadet IH-473483-R1

Button, Wear

$9.49

$

In Stock, Qty 20+

0

17

Cub Cadet IH-25930-R1

Nut, 1/4-28 Hex Jam
(Superseded to IH-25930-R2)

$4.49

$

In Stock, Qty 15

0

18

Cub Cadet IH-27452-D

Spring, Compression

$6.49

$

In Stock, Qty 20+

0

19

Cub Cadet IH-473478-R1

Lever, Throw-Out

$11.99

$

Usually ships in 3-6 days

0

20

Cub Cadet IH-473472-R1

Screw, Special Machine
(Superseded to IH-473472-R2)

$11.99

$

In Stock, only 3 left!

0

21

Cub Cadet IH-473479-R91

Shaft, Clutch
(Superseded to IH-473479-R92)

$

$

Not available

22

Spring, Friction Disc

Note: (Not serviced separately, order kit 759-3490)

$

$

Not available

23

Nut, 1/4-28 Hex

Note: Common Hardware Purchase Locally

$

$

Not available

24

Cub Cadet IH-528890-R1

Bracket Assy, PTO Handle

$

$

Not available

Washer, No. 12 C-Z Med Lock

Note: Common Hardware Purchase Locally

$

$

Not available

Screw, 12-24 X 3/8 C-Z Slt Pan Hd Mach

Note: Common Hardware Purchase Locally

$

$

Not available

25

Cub Cadet IH-528884-R1

Lever Assy, PTO

$

$

Currently unavailable

Cub Cadet 759-3490

Kit, PTO Clutch Spring & Disc

$115.99

$

In Stock, Qty 12

0
