73 (2050036U) - Cub Cadet Garden Tractor Steering Gear & Connections Parts Diagram

Garden Tractor

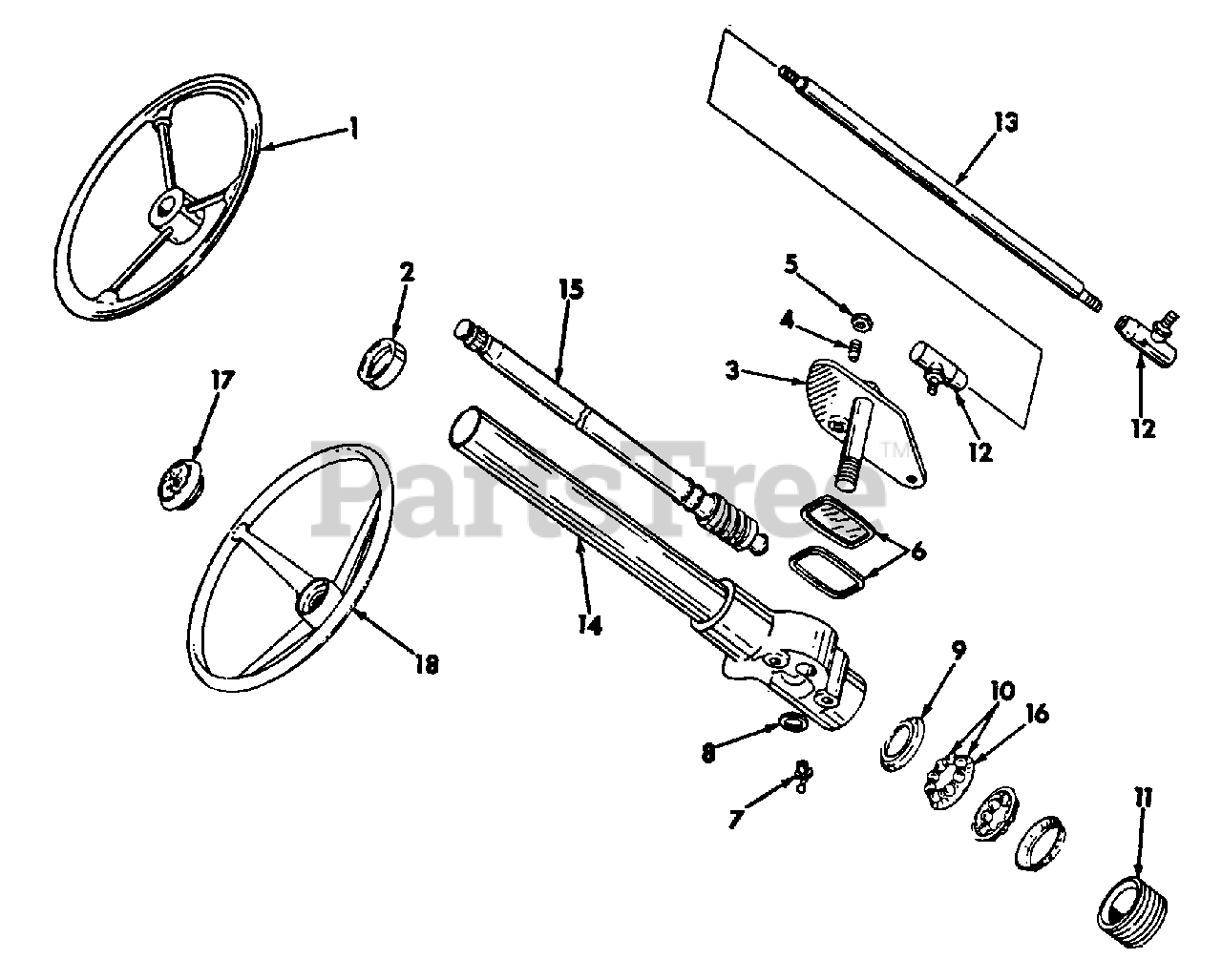

Steering Gear & Connections Parts Diagram

  • Title

Cub Cadet 703-1085

Gear Assy, Steering

Note: (Marked CCC) (For repair parts use Garden Tractor Model 1210)

$

$

Not available

Cub Cadet 710-3001

Screw, 3/8-16 X .88 Lg GR5

$6.99

$

In Stock, Qty 11

0

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

1

Cub Cadet IH-376176-R1

Wheel, Steering

$

$

Currently unavailable

~NLA

Nut, 5/8-18 C-Z Low Crown

$

$

Not available

2

Cub Cadet 741-3000

Bearing, Upper Column
(Superseded to 941-3023)

$7.99

$

In Stock, Qty 17

0

Cub Cadet 723-3040

Seal, Steering Gear

$

$

Not available

3

Cub Cadet IH-385522-R1

Lever & Bolt Assy

$

$

Not available

Nut, 5/8-18 C-A Low Crown

Note: Common Hardware Purchase Locally

$

$

Not available

4

Cub Cadet IH-62806-C1

Stud, Cam Follower
(Superseded to IH-62806-C2)

$

$

Not available

5

Cub Cadet IH-192510-R1

Nut, Cam Follower Stud
(Superseded to 712-3029)

$6.49

$

In Stock, Qty 8

0

Cub Cadet IH-114608

Washer, 1/2 Ext Tooth Lock

$

$

Not available

6

Cub Cadet IH-394936-R91

Package, Seal & Seal Retainer

$

$

Not available

7

Cub Cadet IH-273360

Fitting, 1/4 65 Deg Angle Drive Lube

$

$

Not available

8

Cub Cadet IH-308362-C1

Washer, Flat C-Z

$

$

Not available

9

Cub Cadet IH-379405-R1

Retainer, Bearing Ball
(Superseded to 903-1029)

$

$

Not available

10

Cub Cadet IH-389081-R91

Retainer & Ball Assy
(Superseded to 941-3021)

$34.99

$

In Stock, Qty 13

0

11

Cub Cadet IH-394288-R1

Plug, Adjusting

$

$

Not available

Cub Cadet 714-3015

Pin, 1/8 X 1/2 Cot

$

$

Not available

12

Cub Cadet 723-3018

Joint, Tie Rod End
(Superseded to 923-3018)

$15.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3002

Nut, 3/8-24 C-Z Slt Hex
(Superseded to 912-3002)

$6.49

$

In Stock, Qty 8

0

Cub Cadet 714-0474

Pin, 1/8 X 3/4 C-Z Cot

$4.49

$

In Stock, Qty 16

0

13

Cub Cadet IH-384801-R1

Link, Steering Gear Drag

Note: These parts are not included in the steering gear assembly.

$

$

Not available

Cub Cadet 712-3001

Nut, 3/8-24 Hex Jam
(Superseded to 912-3001)

$6.49

$

In Stock, Qty 20+

0

14

~NLA

Tube Assy, Housing & Jacket

Note: Order 703-1085

$

$

Not available

15

Cub Cadet IH-385984-R91

Cam & Tube Assy
(Superseded to 703-1085)

$

$

Not available

16

Cub Cadet IH-389081-R1

Retainer, Ball
(Superseded to 941-3021)

$34.99

$

In Stock, Qty 13

0

17

Note: Not used in this application

$

$

Not available

18

Note: Not used in this application

$

$

Not available
