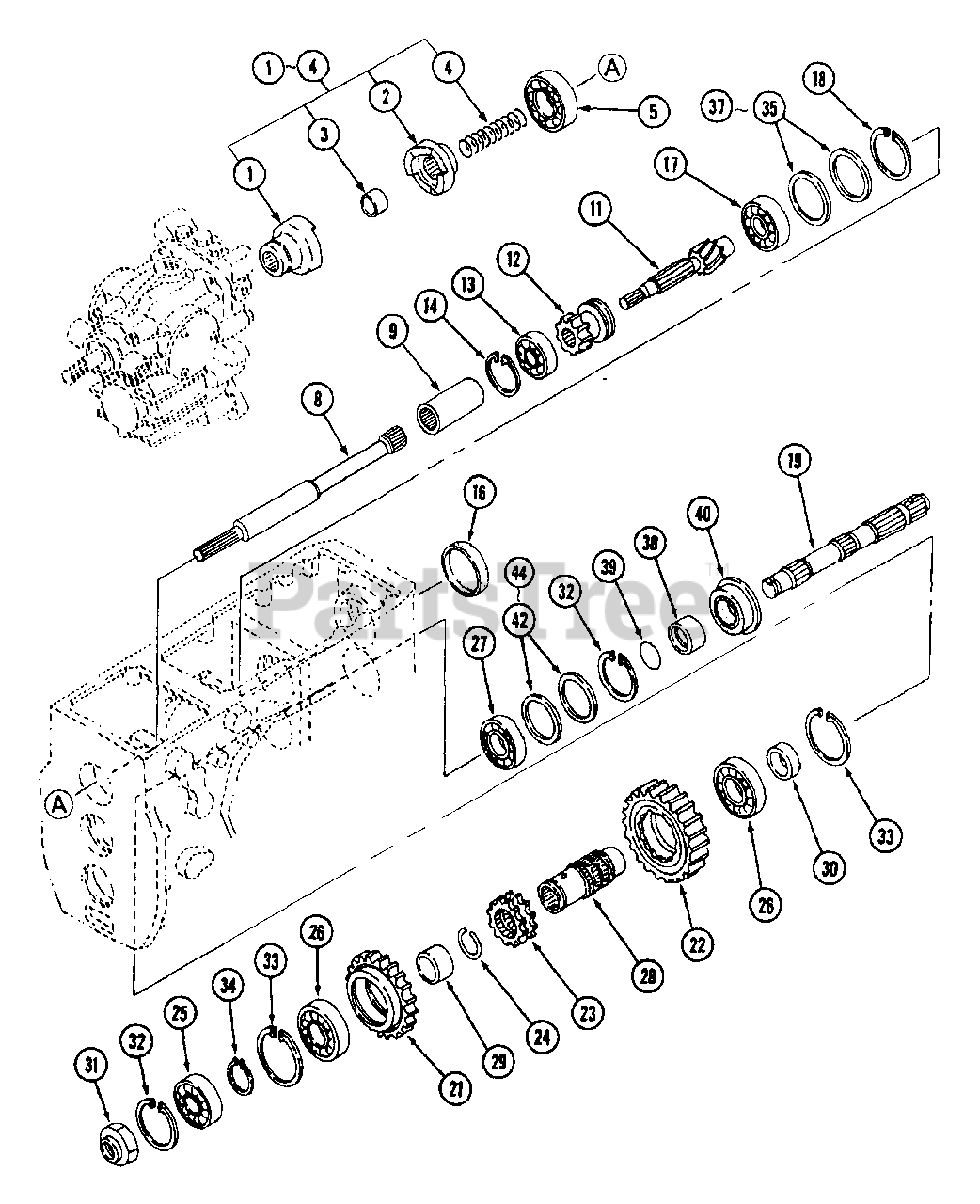

7300 (54A-437D100) - Cub Cadet Compact Tractor Hydrostatic (Part 2) Parts Diagram

Compact Tractor

Hydrostatic (Part 2) Parts Diagram

  • Title

Cub Cadet MA-19641315000

Clutch Kit

Note: Includes items 1-4

$

$

Not available

1

Cub Cadet MA-19641316002

Clutch A

$

$

Not available

2

Cub Cadet MA-19831272000

Clutch B

$233.99

$

Usually ships in 3-6 days

0

3

Cub Cadet MA-07972020150

Bushing

$

$

Not available

4

Cub Cadet MA-19681341000

Spring

$16.99

$

Usually ships in 3-6 days

0

5

Cub Cadet MA-07500063050

Bearing

$35.99

$

In Stock, Qty 7

0

8

Cub Cadet MA-19641318001

Shaft

$

$

Not available

Cub Cadet MA-19681346000

Shaft

$

$

Not available

9

Cub Cadet MA-10251922000

Collar
(Superseded to MA-10251922AG0)

$

$

Not available

Cub Cadet MA-10231915000

Collar
(Superseded to MA-102319150C1)

$96.99

$

Usually ships in 3-6 days

0

11

Cub Cadet MA-19641247000

Shaft, PTO Drive

$

$

Not available

Cub Cadet MA-19681247001

Shaft, PTO Drive

$

$

Not available

12

Cub Cadet MA-19641248001

Gear, 19T

$

$

Not available

13

Cub Cadet MA-07520663050

Bearing

$

$

Not available

14

Cub Cadet MA-07410006200

Ring

$

$

Not available

16

Cub Cadet MA-08340072100

Seal, Cap

$

$

Not available

17

Cub Cadet MA-07520663060

Bearing

$

$

Not available

18

Cub Cadet MA-07410007201

Ring

$

$

Not available

19

Cub Cadet MA-19641249000

Shaft, PTO

$

$

Not available

21

Cub Cadet MA-19641251000

Gear, 46T

$

$

Not available

22

Cub Cadet MA-19681252000

Gear, 44T

$

$

Not available

23

Cub Cadet MA-19631249000

Gear, Clutch

$

$

Not available

24

Cub Cadet MA-19631253000

Ring

$

$

Not available

25

Cub Cadet MA-07520663050

Bearing

$

$

Not available

26

Cub Cadet MA-07500062070

Bearing

$

$

Not available

27

Cub Cadet MA-07520662060

Bearing

$

$

Not available

28

Cub Cadet MA-19641254000

Boss Spline

$

$

Not available

29

Cub Cadet MA-19631252000

Collar

$

$

Not available

30

Cub Cadet MA-19641253000

Collar

$

$

Not available

31

Cub Cadet MA-11741273000

Nut (M25)

$26.99

$

In Stock, only 1 left!

0

32

Cub Cadet MA-07410006200

Ring

$

$

Not available

33

Cub Cadet MA-07410007201

Ring

$

$

Not available

34

Cub Cadet MA-07400003500

Ring
(Superseded to MA-07400103500)

$2.99

$

In Stock, only 1 left!

0

Cub Cadet MA-19641281000

Liner Set

Note: Includes Items 35 -37

$

$

Not available

35

Cub Cadet MA-07300007202

Liner

$

$

Not available

36

Cub Cadet MA-07300007204

Liner

$

$

Not available

37

Cub Cadet MA-07300007208

Liner

$

$

Not available

38

Cub Cadet MA-10251405000

Bushing

$

$

Not available

39

Cub Cadet MA-08300100300

O-Ring

$

$

Not available

40

Cub Cadet MA-10211314000

Seal,Oil
(Superseded to MA-08412406213)

$26.99

$

In Stock, only 1 left!

0

Cub Cadet MA-10211318000

Liner Set

Note: Includes Items 42 - 44

$

$

Not available

42

Cub Cadet MA-07300006202

Liner

$

$

Not available

43

Cub Cadet MA-07300006204

Liner

$

$

Not available

44

Cub Cadet MA-07300006208

Liner

$

$

Not available
