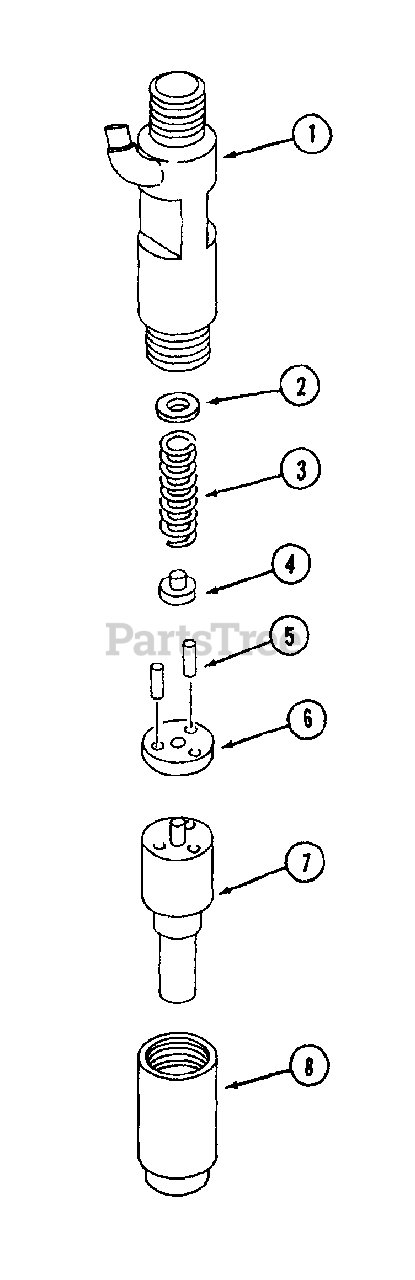

7300 (54A-437D100) - Cub Cadet Compact Tractor Nozzle & Nozzle Holder 30HP Engine 7300 S/N 21933 & Up Parts Diagram

Compact Tractor

Nozzle & Nozzle Holder 30HP Engine 7300 S/N 21933 & Up Parts Diagram

  • Title

Cub Cadet MA-MM438767

Nozzle & Holder Ass'y.

Note: Includes items 1-8

$

$

Not available

1

Cub Cadet MA-09311-04330

Body Sub Ass'y.

$

$

Not available

2

Cub Cadet MA-09317-52180

Washer

Note: t=1.00

$

$

Not available

Cub Cadet MA-09317-52190

Washer

Note: t=1.05

$

$

Not available

Cub Cadet MA-09317-52200

Washer

Note: t=1.10

$

$

Not available

Cub Cadet MA-09317-52210

Washer

Note: t=1.15

$

$

Not available

Cub Cadet MA-09317-52220

Washer

Note: t=1.20

$

$

Not available

Cub Cadet MA-09317-52230

Washer

Note: t=1.25

$

$

Not available

Cub Cadet MA-09317-52240

Washer

Note: t=1.30

$

$

Not available

Cub Cadet MA-09317-52250

Washer

Note: t=1.35

$

$

Not available

Cub Cadet MA-09317-52260

Washer

Note: t=1.40

$

$

Not available

Cub Cadet MA-09317-52270

Washer

Note: t=1.45

$

$

Not available

Cub Cadet MA-09317-52280

Washer

Note: t=1.50

$

$

Not available

Cub Cadet MA-09317-52290

Washer

Note: t=1.55

$

$

Not available

Cub Cadet MA-09317-52300

Washer

Note: t=1.60

$

$

Not available

Cub Cadet MA-09317-52310

Washer

Note: t=1.65

$

$

Not available

Cub Cadet MA-09317-52320

Washer

Note: t=1.70

$

$

Not available

Cub Cadet MA-09317-52330

Washer

Note: t=1.75

$

$

Not available

Cub Cadet MA-09317-52340

Washer

Note: t=1.80

$

$

Not available

Cub Cadet MA-09317-52350

Washer

Note: t=1.85

$

$

Not available

Cub Cadet MA-09317-52360

Washer

Note: t=1.90

$

$

Not available

Cub Cadet MA-09317-52370

Washer

Note: t=1.65

$

$

Not available

Cub Cadet MA-09317-52380

Washer

Note: t=2.00

$

$

Not available

Cub Cadet MA-09317-52390

Washer

Note: t=2.05

$

$

Not available

Cub Cadet MA-09317-52400

Washer

Note: t=2.10

$

$

Not available

Cub Cadet MA-09317-52410

Washer

Note: t=2.15

$

$

Not available

Cub Cadet MA-09317-52420

Washer

Note: t=1.275

$

$

Not available

Cub Cadet MA-09317-52430

Washer

Note: t=1.325

$

$

Not available

Cub Cadet MA-09317-52440

Washer

Note: t=1.375

$

$

Not available

Cub Cadet MA-09317-52450

Washer

Note: t=1.425

$

$

Not available

Cub Cadet MA-09317-52460

Washer

Note: t=1.475

$

$

Not available

Cub Cadet MA-09317-52470

Washer

Note: t=1.525

$

$

Not available

Cub Cadet MA-09317-52480

Washer

Note: t=1.575

$

$

Not available

Cub Cadet MA-09317-52490

Washer

Note: t=1.625

$

$

Not available

Cub Cadet MA-09317-52500

Washer

Note: t=1.675

$

$

Not available

Cub Cadet MA-09317-52510

Washer

Note: t=1.725

$

$

Not available

Cub Cadet MA-09317-52520

Washer

Note: t=1.775

$

$

Not available

Cub Cadet MA-09317-52530

Washer

Note: t=0.95

$

$

Not available

3

Cub Cadet MA-09312-70410

Spring, Pressure

$

$

Not available

4

Cub Cadet MA-09312-10480

Pin, Pressure

$

$

Not available

5

Cub Cadet MA-94908-23160

Pin, Straight
(Superseded to MA-MM501790)

$

$

Not available

6

Cub Cadet MA-09322-10150

Packing, Tip

$

$

Not available

7

Cub Cadet MA-09340-05730

Nozzle Ass'y.

$

$

Not available

8

Cub Cadet MA-09316-41020

Nut, Nozzle Retaining

$

$

Not available
