7305 (54A-447D100) - Cub Cadet Compact Tractor Air Cleaner SN 23838 & above Parts Diagram

Compact Tractor

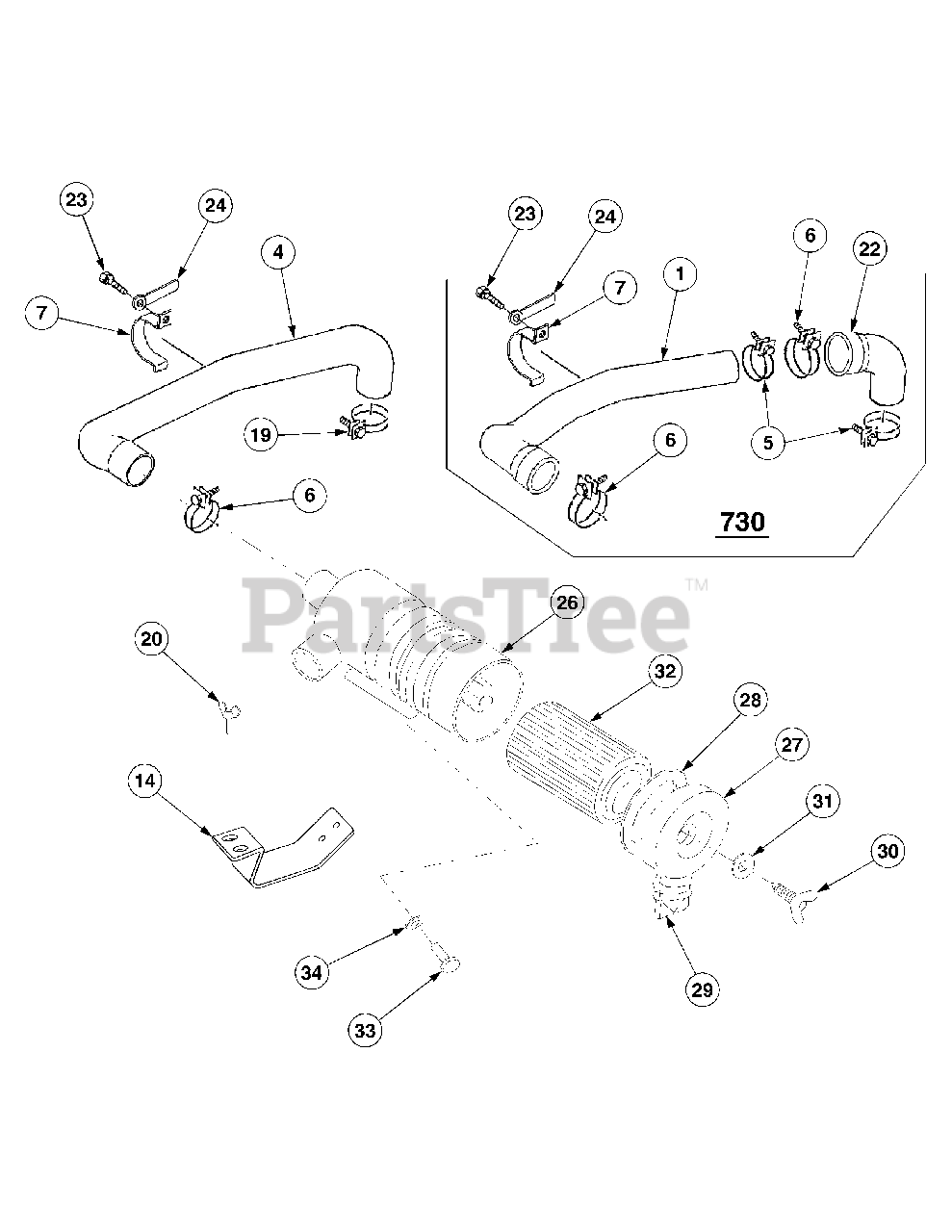

Air Cleaner SN 23838 & above Parts Diagram

  • Title

Cub Cadet MA-19680511000

Air Cleaner Assembly. (items 26-32)

Note: Refer to Service Advisory CCT-020.

$269.99

$

Usually ships in 3-6 days

0

1

Cub Cadet MA-19680517000

Hose, Air A

$

$

Not available

4

Cub Cadet MA-19640513000

Hose, Air

$

$

Not available

5

Cub Cadet MA-00501100530

Clamp, Hose

$

$

Not available

6

Cub Cadet MA-00501100630

Clamp, Hose

$

$

Not available

7

Cub Cadet MA-19630513000

Clamp

$

$

Not available

14

Cub Cadet MA-19680513AG0

Plate

$

$

Not available

19

Cub Cadet MA-00501100560

Clamp, Hose

$

$

Not available

20

Cub Cadet MA-14141454000

Bolt, Wing

$

$

Not available

22

Cub Cadet MA-19680518000

Hose, Air B

$

$

Not available

23

Cub Cadet MA-H1540108020

Bolt

$3.49

$

Usually ships in 3-6 days

0

24

Cub Cadet MA-00502108083

Clamp

$

$

Not available

26

Case Ass’y. (order assembly)

$

$

Not available

27

Cub Cadet MA-35530501300

Cap

$

$

Not available

28

Cub Cadet MA-35530501400

Gasket

$

$

Not available

29

Cub Cadet MA-35460501400

Valve, Unloader

$

$

Not available

30

Cub Cadet MA-35530501600

Bolt, Wing

$

$

Not available

31

Cub Cadet MA-35460501600

Washer, Seal

$

$

Not available

32

Cub Cadet MA-35530501800

Element

Note: use with MA-19680511000

$216.99

$

Usually ships in 3-6 days

0

33

Cub Cadet MA-F1540108012

Bolt

$

$

Not available

34

Cub Cadet MA-03500150822

Washer

$

$

Not available
