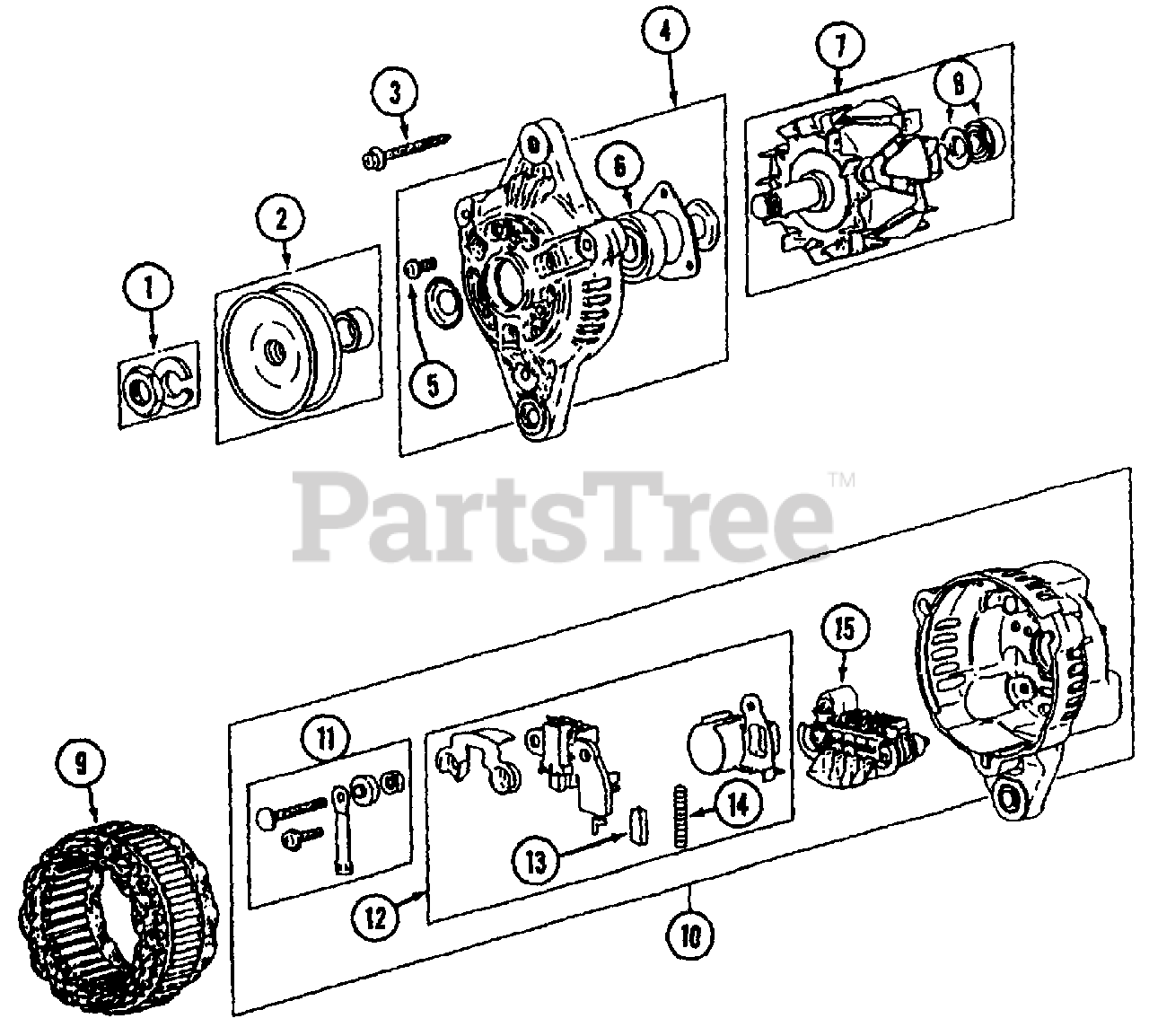

7305 (54A-447D100) - Cub Cadet Compact Tractor Alternator 30 HP Engine (7300 S/N 21495-Lower/7305 S/N 22230-Lower) Parts Diagram

Compact Tractor

Alternator 30 HP Engine (7300 S/N 21495-Lower/7305 S/N 22230-Lower) Parts Diagram

  • Title

Cub Cadet MA-MM435752

Alternator Ass'y.

Note: Includes Items 1 - 15

$

$

Not available

1

Cub Cadet MA-A529X02171

Nut Set

$

$

Not available

2

Cub Cadet MA-A628T54270

Pulley Set

$

$

Not available

3

Cub Cadet MA-A414X18271

Bolt Set

$

$

Not available

4

Cub Cadet MA-A640T34970

Bracket Ass'y., Front

$

$

Not available

5

Cub Cadet MA-A414X18371

Screw Set

$

$

Not available

6

Cub Cadet MA-S930P61770

Bearing, Front

$

$

Not available

7

Cub Cadet MA-A880T38970

Rotor Ass'y.

$

$

Not available

8

Cub Cadet MA-S930P17970

Bearing, Rear
(Superseded to MA-S930P17901)

$

$

Not available

9

Cub Cadet MA-A383T31370

Starter Ass'y.

$

$

Not available

10

Cub Cadet MA-A641T74470

Bracket Ass'y., Rear

$

$

Not available

11

Cub Cadet MA-A450X12571

Terminal Set

$

$

Not available

12

Cub Cadet MA-A866X12571

Regulator Ass'y.

$

$

Not available

13

Cub Cadet MA-A648D02570

Brush
(Superseded to MA-A648C02981)

$

$

Not available

14

Cub Cadet MA-A389C01101

Spring, Brush

$

$

Not available

15

Cub Cadet MA-A860T21670

Rectifier Ass'y.

$

$

Not available
