7305 (54A-447D100) - Cub Cadet Compact Tractor Alternator 30 HP Engine (7300 S/N 21496-Higher/7305 S/N 22231-Higher) Parts Diagram

Compact Tractor

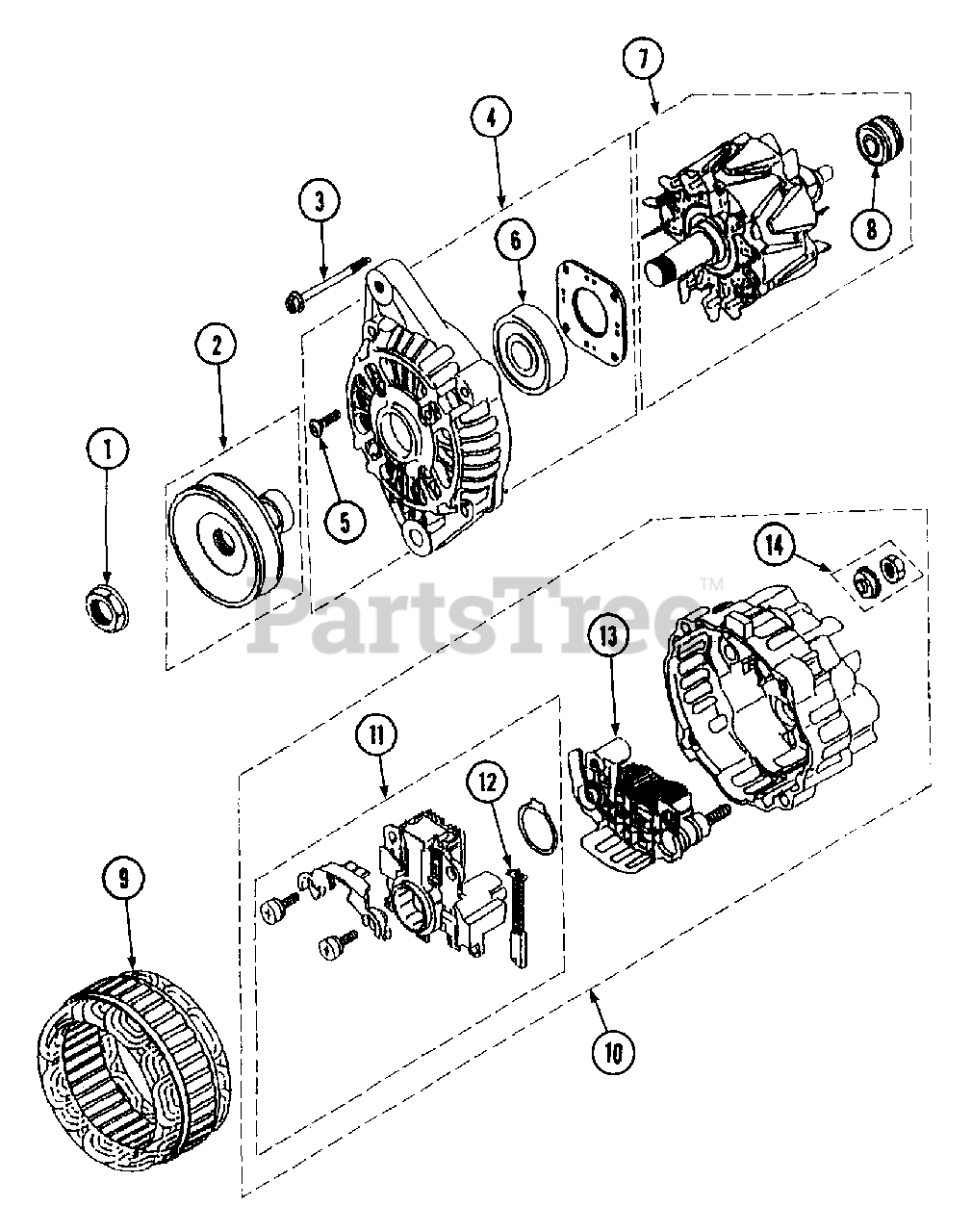

Alternator 30 HP Engine (7300 S/N 21496-Higher/7305 S/N 22231-Higher) Parts Diagram

  • Title

Cub Cadet MA-30A68-00800

Alternator Ass'y.
(Superseded to MA-30A68-00801)

Note: Includes items 1-14

$

$

Not available

1

Cub Cadet MA-MM502565

Nut Set

$

$

Not available

2

Cub Cadet MA-MM502578

Pulley Set

$

$

Not available

3

Cub Cadet MA-MM502566

Bolt Set
(Superseded to MA-MD611556)

$

$

Not available

4

Cub Cadet MA-MM502597

Bracket Ass'y., Front

$

$

Currently unavailable

5

Cub Cadet MA-MM502568

Screw Set

$

$

Currently unavailable

6

Cub Cadet MA-MM502569

Bearing, Front

$

$

Currently unavailable

7

Cub Cadet MA-MM502570

Rotor Ass'y.

$

$

Currently unavailable

8

Cub Cadet MA-MM502571

Bearing, Rear
(Superseded to MA-MD611928)

$

$

Not available

9

Cub Cadet MA-MM502591

Stator Ass'y.

$

$

Not available

10

Cub Cadet MA-MM502598

Bracket Ass'y., Rear

$

$

Not available

11

Cub Cadet MA-MM502585

Regulator Set

$

$

Currently unavailable

12

Cub Cadet MA-MM502577

Brush
(Superseded to MA-A647X50170)

$

$

Not available

13

Cub Cadet MA-MM502599

Rectifier Ass'y.

$

$

Not available

14

Cub Cadet MA-MM502588

Nut Set
(Superseded to MA-A529X05571)

$

$

Not available
