7305 (54A-447D100) - Cub Cadet Compact Tractor Crankcase 30 HP Engine (7300 S/N 21932 & Lower/7305 S/N 23069 & Lower) Parts Diagram

Compact Tractor

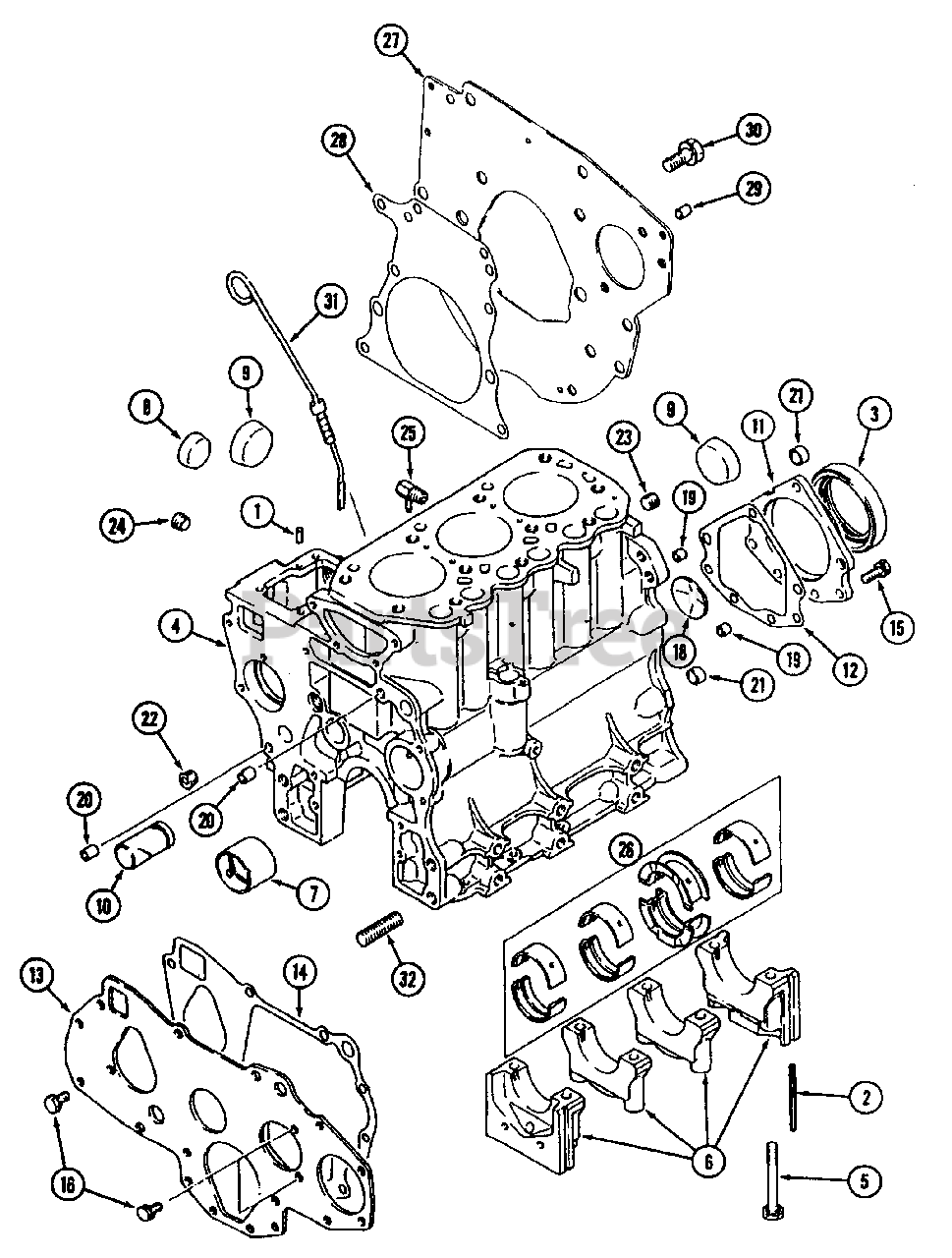

Crankcase 30 HP Engine (7300 S/N 21932 & Lower/7305 S/N 23069 & Lower) Parts Diagram

  • Title

1

Cub Cadet MA-MM409645

Pin, Dowel

$

$

Not available

2

Cub Cadet MA-MM406228

Seal, Side

$

$

Not available

3

Cub Cadet MA-MM406242

Oil Seal

$

$

Not available

4

Cub Cadet MA-MM430187

Block Sub Ass'y., Cylinder

Note: Includes Items 4 - 9

$

$

Not available

5

Cub Cadet MA-MM406217

Bolt, Bearing Cap
(Superseded to MA-31A07-00800)

$

$

Not available

6

Cap Ass'y., Bearing

Note: Part of Cylinder Block Sub Assembly.

$

$

Not available

7

Cub Cadet MA-MM406237

Bush, Camshaft

$

$

Not available

8

Cub Cadet MA-MD000245

Plug, Expansion
(Superseded to MA-F5014-35000)

$

$

Not available

9

Cub Cadet MA-MF665543

Cap, Sealing
(Superseded to MA-F5014-45000)

$

$

Not available

10

Cub Cadet MA-MM430113

Shaft, Idler

$

$

Not available

11

Cub Cadet MA-WM412662

Case, Oil Seal

$

$

Currently unavailable

12

Cub Cadet MA-30H07-00201

Gasket, Oil Seal

$

$

Not available

13

Cub Cadet MA-MM406264

Plate, Front

$81.99

$

Usually ships in 3-6 days

0

14

Cub Cadet MA-30H07-00300

Gasket, Front Plate

$

$

Not available

15

Cub Cadet MA-MF240054

Bolt, W/Washer

$

$

Not available

16

Cub Cadet MA-MF240051

Bolt, W/Washer

$

$

Not available

18

Cub Cadet MA-MF665512

Plug, Expansion
(Superseded to MA-F5010-45000)

$

$

Not available

19

Cub Cadet MA-MS471104

Bushing, Knock

$

$

Not available

20

Cub Cadet MA-MS471105

Bushing, Knock

$

$

Not available

21

Cub Cadet MA-MS471110

Bushing, Knock

$

$

Not available

22

Cub Cadet MA-MS661142

Plug, Taper

$

$

Not available

23

Cub Cadet MA-MD040338

Plug, Taper

$

$

Not available

24

Cub Cadet MA-MS661141

Plug, Taper

$

$

Not available

25

Cub Cadet MA-MM408260

Joint, Water Drain
(Superseded to MA-31A46-02300)

$

$

Not available

26

Cub Cadet MA-MM438660

Bearing Set, Crankshaft STD
(Superseded to MA-30H09-00050)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet MA-MM438661

Bearing Set, Crankshaft 0.25 US
(Superseded to MA-30H09-00060)

$

$

Not available

Cub Cadet MA-MM438662

Bearing Set, Crankshaft 0.50 US
(Superseded to MA-30H09-00070)

$

$

Not available

Cub Cadet MA-MM438663

Bearing Set, Crankshaft 0.75 US

$

$

Not available

27

Cub Cadet MA-30H12-00200

Plate, Rear
(Superseded to MA-30H12-00202)

$

$

Not available

28

Cub Cadet MA-30H12-00101

Gasket, Rear Plate

$

$

Not available

29

Cub Cadet MA-MM408240

Pin, Knock

$

$

Not available

30

Cub Cadet MA-MF241308

Bolt, W/Washer
(Superseded to MA-F1550112030)

$

$

Not available

31

Cub Cadet MA-30H42-00100

Gauge, Oil Level

$

$

Not available

32

Cub Cadet MA-MF402635

Stud

$9.49

$

Usually ships in 3-6 days

0
