7360 SS (590-603-100) - Cub Cadet Compact Tractor Air Cleaner SN 21848 & after Parts Diagram

Compact Tractor

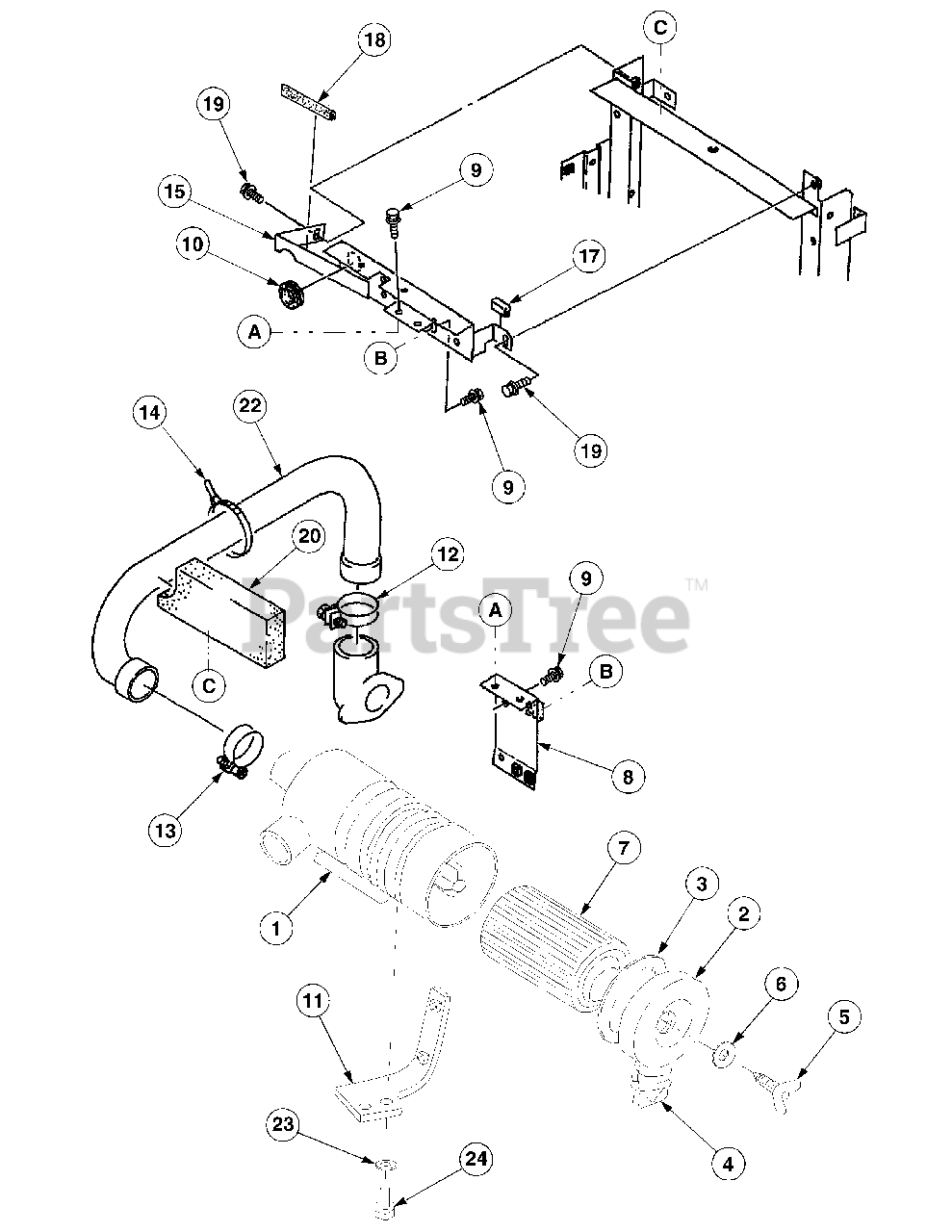

Air Cleaner SN 21848 & after Parts Diagram

  • Title

Cub Cadet MA-19680511000

Air Cleaner Assembly

Note: Replaces MA-10370511000 Air Cleaner no longer available

$269.99

$

Usually ships in 3-6 days

0

1

Cub Cadet N/A

Case Assy

$

$

Currently unavailable

2

Cub Cadet MA-35530501300

Cap

$

$

Not available

3

Cub Cadet MA-35530501400

Gasket

$

$

Not available

4

Cub Cadet MA-35460501600

Valve, Unloader

$

$

Not available

4

Cub Cadet MA-35530501600

Wing Bolt

$

$

Not available

6

Cub Cadet MA-35460501600

Seal Washer

$

$

Not available

7

Cub Cadet MA-35530501800

Element Assy

$216.99

$

Usually ships in 3-6 days

0

8

Cub Cadet MA-10350552AG1

Bracket, Cleaner

$

$

Not available

9

Cub Cadet MA-H1540108016

Bolt, w/Washer

$

$

Not available

10

Cub Cadet MA-35157619300

Grommet

$

$

Not available

11

Cub Cadet MA-19610512AG0

Plate

$

$

Not available

12

Cub Cadet MA-00501100580

Clamp, Hose

$

$

Not available

13

Cub Cadet MA-00501100630

Clamp, Hose

$

$

Not available

14

Cub Cadet MA-00511102080

Band, Wire

$

$

Not available

15

Cub Cadet MA-10370553AG0

Cover

$

$

Not available

17

Cub Cadet MA-10310519000

Band, Rubber

$

$

Not available

18

Cub Cadet MA-10311826000

Rubber

$

$

Not available

19

Cub Cadet MA-H1540108016

Bolt, w/Washer

$

$

Not available

20

Cub Cadet MA-10370515000

Cushion

$

$

Not available

22

Cub Cadet MA-10370554000

Hose, Air Cleaner

$

$

Not available

23

Cub Cadet MA-F1540108012

Bolt

$

$

Not available

24

Cub Cadet MA-03500150822

Washer

$

$

Not available
