7360 SS (590-603-100) - Cub Cadet Compact Tractor Alternator Parts Diagram

Compact Tractor

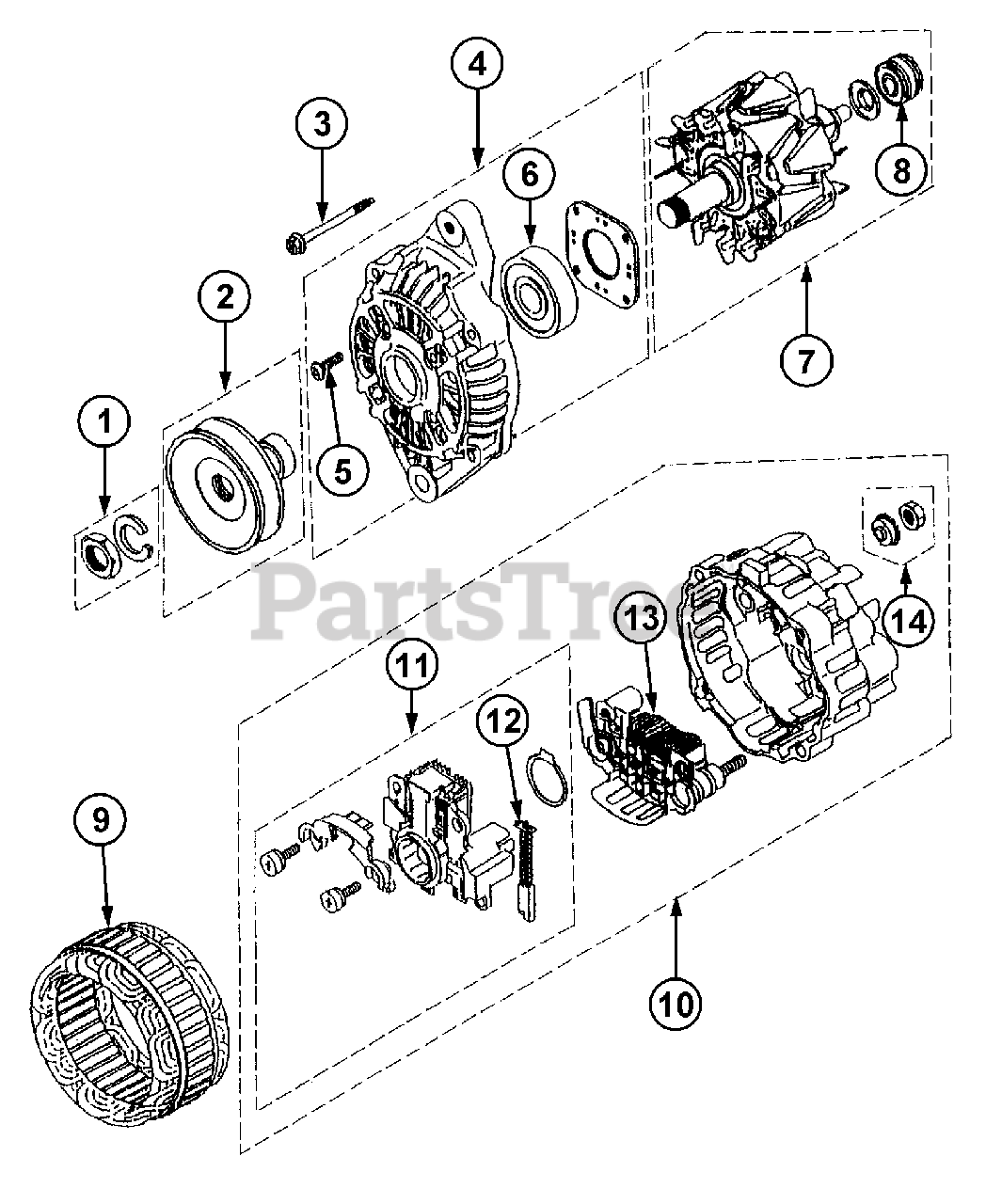

Alternator Parts Diagram

  • Title

Cub Cadet MA-31A68-00401

Alternator Assy
(Superseded to MA-31A68-00402)

Note: (Incl. item(s) 1-14)

$

$

Not available

1

MA-A981X20771

Nut Set

$

$

Not available

2

MA-A628T62170

Pulley Assy

$

$

Not available

3

Cub Cadet MA-A414X19271

Bolt Set, Thru

$

$

Not available

4

Cub Cadet MA-A640T52770

Bracket Assy, Front

$

$

Not available

5

Cub Cadet MA-A414X21271

Screw Set

$

$

Not available

6

Cub Cadet MA-S930P18870

Bearing, Front

$

$

Not available

7

Cub Cadet MA-A880T65470

Rotor Assy

$

$

Not available

8

Cub Cadet MA-S930P63670

Bearing, Rear

$

$

Not available

9

Cub Cadet MA-A383T46370

Stator Assy

$

$

Not available

10

Cub Cadet MA-A642X25570

Bracket Assy, Rear

$

$

Not available

11

Cub Cadet MA-A866X28472

Regulator Set

$

$

Not available

12

Cub Cadet MA-A647X50170

Brush Set

$

$

Not available

13

MA-A860T40670

Rectifier Assy

$

$

Not available

14

MA-A529X07871

Nut Set

$

$

Not available
