7360 SS (590-603-100) - Cub Cadet Compact Tractor Axle, MFD Front - Bracket Assembly Parts Diagram

Compact Tractor

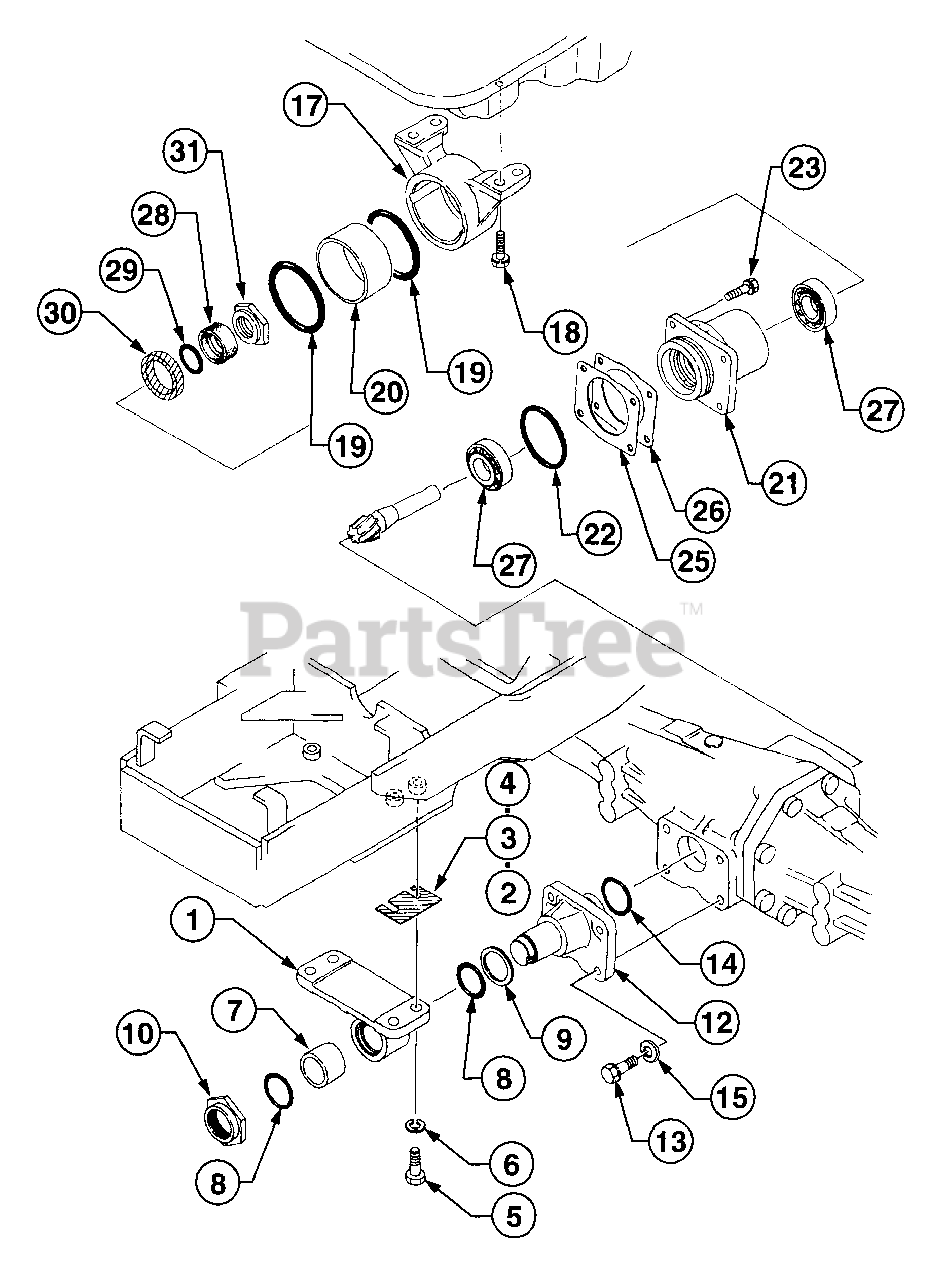

Axle, MFD Front - Bracket Assembly Parts Diagram

  • Title

1

Cub Cadet MA-10372115AG0

Bracket, Front

$

$

Not available

2

Cub Cadet MA-10302141001

Shim, t=0.4

$

$

Not available

3

Cub Cadet MA-10302142001

Shim, t=1.0

$

$

Not available

4

Cub Cadet MA-10302143001

Shim, t=3.2

$

$

Not available

5

Cub Cadet MA-A0520114050

Bolt

$

$

Not available

6

Cub Cadet MA-A3600101402

Washer

$

$

Not available

7

Cub Cadet MA-07961040300

Bushing

$

$

Not available

8

Cub Cadet MA-08300200400

O-Ring

$

$

Not available

9

Cub Cadet MA-11742127000

Liner

$

$

Not available

10

Cub Cadet MA-69482-00600

Nut

$

$

Not available

12

Cub Cadet MA-10312126AG1

Holder, Arm

$

$

Not available

13

Cub Cadet MA-F1540112035

Bolt, w/Washer

$

$

Not available

Cub Cadet MA-A0500112035

Bolt

$

$

Currently unavailable

14

Cub Cadet MA-08300200450

O-Ring

$

$

Not available

15

Cub Cadet MA-A3600101203

Washer, Spring

$

$

Not available

17

Cub Cadet MA-10312131AG0

Bracket, Rear

$

$

Not available

18

Cub Cadet MA-F1550112035

Bolt

$

$

Not available

19

Cub Cadet MA-08300200800

O-Ring

$

$

Not available

20

Cub Cadet MA-05605-08040

Bushing

$

$

Not available

21

Cub Cadet MA-11742113AG0

Case, Bearing

$

$

Not available

22

Cub Cadet MA-08300200750

O-Ring

$

$

Not available

23

Cub Cadet MA-F1550110030

Bolt

$4.49

$

In Stock, only 4 left!

0

25

Cub Cadet MA-11742128000

Shim, t=1.0

$

$

Not available

26

Cub Cadet MA-11742129000

Shim, t=0.2

$

$

Not available

27

Cub Cadet MA-07700132206

Bearing, Taper

$60.99

$

Usually ships in 3-6 days

0

28

Cub Cadet MA-69542-60601

Bushing, Seal

$

$

Not available

29

Cub Cadet MA-08300100300

O-Ring

$

$

Not available

30

Cub Cadet MA-08401045629

Seal, Oil

$

$

Not available

31

Cub Cadet MA-69526-07200

Nut

$

$

Not available
