7360 SS (590-603-100) - Cub Cadet Compact Tractor Axle, Rear - Brakes Parts Diagram

Compact Tractor

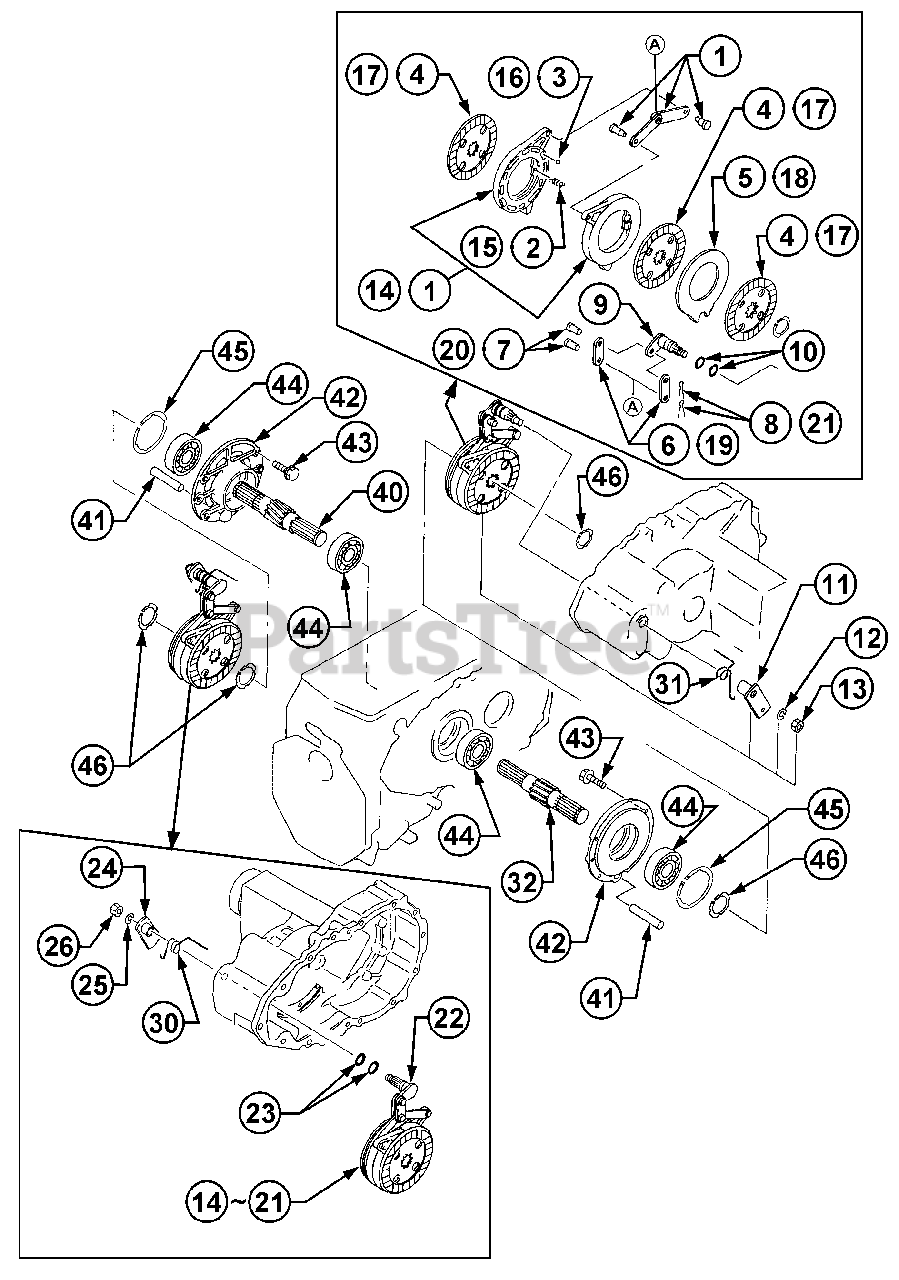

Axle, Rear - Brakes Parts Diagram

  • Title

Cub Cadet MA-10301501001

Brake Assy, L.H.

Note: (Incl. item(s) 1-13)

$

$

Not available

1

Cub Cadet MA-10301531001

Plate, Cam

$

$

Not available

2

Cub Cadet MA-10301534000

Spring

$

$

Not available

3

Cub Cadet MA-10301536000

Ball

$

$

Not available

4

Cub Cadet MA-10301537000

Disk

$

$

Not available

5

Cub Cadet MA-10301538000

Plate, Mating

$

$

Not available

6

Cub Cadet MA-10301539000

Plate

$

$

Not available

7

Cub Cadet MA-10301541000

Pin

$

$

Not available

8

Cub Cadet MA-05200130025

Pin, Split

$

$

Not available

9

Cub Cadet MA-10301542000

Lever

$

$

Not available

10

Cub Cadet MA-08300100180

O-ring

$

$

Not available

11

Cub Cadet MA-10301543000

Arm

$

$

Not available

12

Cub Cadet MA-A3600101202

Washer, Spring

$

$

Not available

13

Cub Cadet MA-A3030112002

Nut

$

$

Not available

Cub Cadet MA-10301502001

Brake Assy, R.H.

Note: (Incl. item(s) 14-26)

$

$

Not available

14

Cub Cadet MA-10301531001

Plate, Cam

$

$

Not available

15

Cub Cadet MA-10301534000

Spring

$

$

Not available

16

Cub Cadet MA-10301536000

Ball

$

$

Not available

17

Cub Cadet MA-10301537000

Disk

$

$

Not available

18

Cub Cadet MA-10301538000

Plate, Mating

$

$

Not available

19

Cub Cadet MA-10301539000

Plate

$

$

Not available

20

Cub Cadet MA-10301541000

Pin

$

$

Not available

21

Cub Cadet MA-05200130025

Pin, Split

$

$

Not available

22

Cub Cadet MA-10301542000

Lever

$

$

Not available

23

Cub Cadet MA-08300100180

O-ring

$

$

Not available

24

Cub Cadet MA-10301543000

Arm

$

$

Not available

25

Cub Cadet MA-A3600101202

Washer, Spring

$

$

Not available

26

Cub Cadet MA-A3030112002

Nut

$

$

Not available

30

Cub Cadet MA-10311531000

Spring A

$

$

Not available

31

Cub Cadet MA-10311532000

Spring B

$

$

Not available

32

Cub Cadet MA-10311533000

Shaft

$

$

Not available

40

Cub Cadet MA-10311534000

Shaft

$

$

Not available

41

Cub Cadet MA-10311517000

Pin

$

$

Not available

42

Cub Cadet MA-19611518000

Holder

$

$

Not available

43

Cub Cadet MA-F1550110030

Bolt

Note: Serial No. 21091 and Lower.

$4.49

$

In Stock, only 4 left!

0

Cub Cadet MA-F1540110030

Bolt

Note: Serial No. 21092 and Higher.

$

$

Not available

44

Cub Cadet MA-07510663080

Bearing, Ball
(Superseded to IH-ST436P)

$97.99

$

Usually ships in 3-6 days

0

45

Cub Cadet MA-07410009001

C-Ring

$

$

Not available

46

Cub Cadet MA-0740000401

C-Ring

$

$

Currently unavailable
