7360 SS (590-603-100) - Cub Cadet Compact Tractor C/B Control - Brake Parts Diagram

Compact Tractor

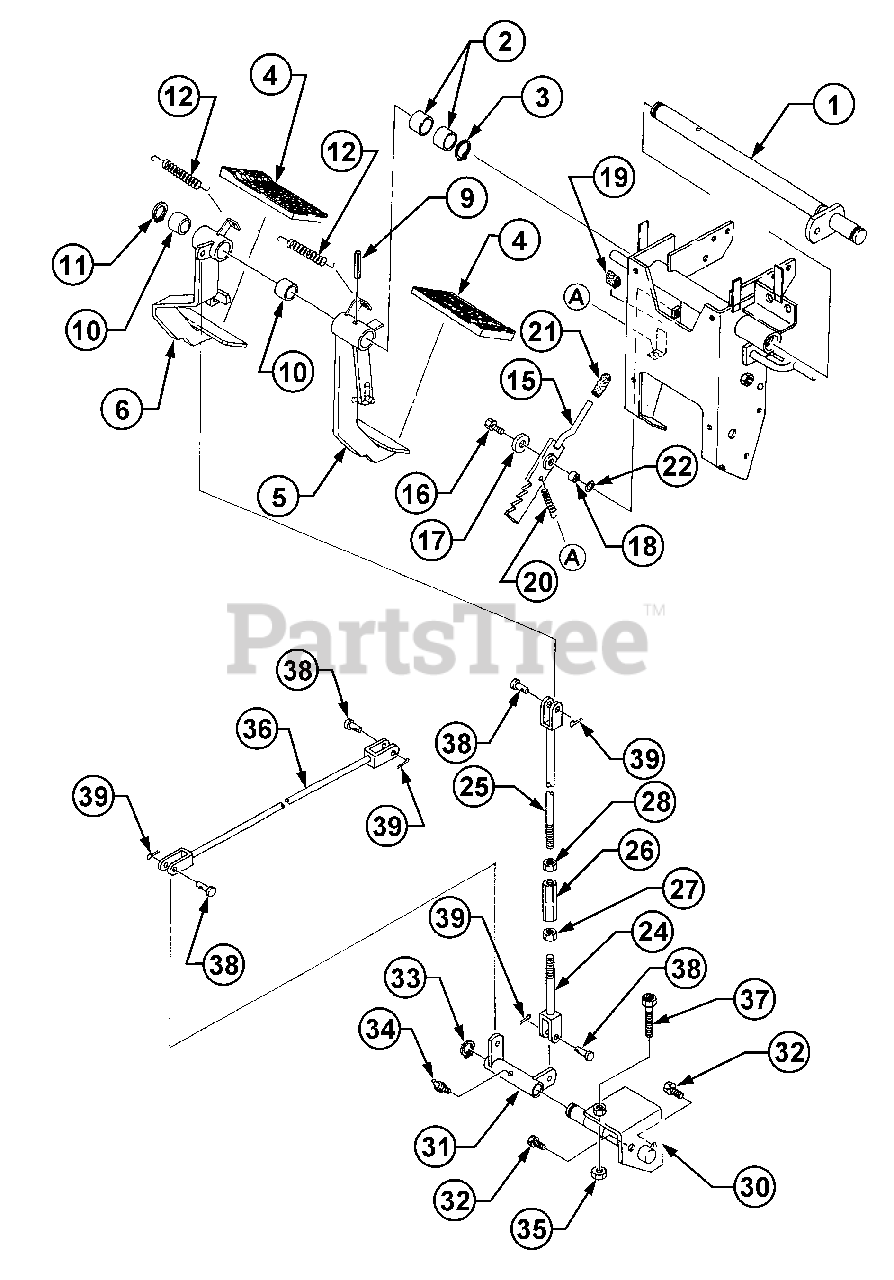

C/B Control - Brake Parts Diagram

  • Title

1

Cub Cadet MA-10351805AG0

Shaft Brake

$

$

Not available

2

Cub Cadet MA-07961025200

Bushing

$

$

Not available

3

Cub Cadet MA-07400002500

C-Ring

$

$

Not available

4

Cub Cadet MA-11931812000

Cover, Pedal

$

$

Not available

5

Cub Cadet MA-10351815AG0

Pedal Brake L.H.

$

$

Not available

6

Cub Cadet MA-10351816AG0

Pedal Brake R.H.

$

$

Not available

9

Cub Cadet MA-05500008045

Pin, Spring

$2.49

$

Usually ships in 3-6 days

0

10

Cub Cadet MA-07961025200

Bushing

$

$

Not available

11

Cub Cadet MA-07400002500

C-Ring

$

$

Not available

12

Cub Cadet MA-27918569001

Spring

$

$

Not available

15

Cub Cadet MA-10351831AG0

Lever Parking

$

$

Not available

16

Cub Cadet MA-F1540108025

Bolt, w/Washer

$

$

Not available

17

Cub Cadet MA-03500160826

Washer

$

$

Not available

18

Cub Cadet MA-67700-26000

Collar

$

$

Not available

19

Cub Cadet MA-10351834000

Rubber

$

$

Not available

20

Cub Cadet MA-11352230000

Spring

$

$

Not available

21

Cub Cadet MA-14212284000

Grip

$

$

Not available

22

Cub Cadet MA-07310101204

Liner, t=0.4

$

$

Not available

24

Cub Cadet MA-10351818000

Rod A, Brake

$

$

Not available

25

Cub Cadet MA-10351819AG0

Rod B, Brake

$

$

Not available

26

Cub Cadet MA-27870395000

Joint

$

$

Not available

27

Cub Cadet MA-A3030110002

Nut

$

$

Not available

28

Cub Cadet MA-A3032110002

Nut

$

$

Not available

30

Cub Cadet MA-10371814AG0

Shaft Link R.H.

$

$

Not available

31

Cub Cadet MA-10351826AG0

Link Brake R.H.

$

$

Not available

32

Cub Cadet MA-F1550110020

Bolt,w/Washer

$

$

Not available

33

Cub Cadet MA-07400102200

C-Ring

$3.49

$

Usually ships in 3-6 days

0

34

Cub Cadet MA-A6513100300

Nipple, Grease
(Superseded to MA-A6503100300)

$4.49

$

Usually ships in 3-6 days

0

35

Cub Cadet MA-A3010110002

Nut

$

$

Not available

36

Cub Cadet MA-10351827000

Rod C, Brake

$

$

Not available

37

Cub Cadet MA-10351828000

Bolt, Stopper

$

$

Not available

38

Cub Cadet MA-05620108025

Pin, Clevis

$

$

Not available

39

Cub Cadet MA-05200125020

Pin, Split

$

$

Not available
