7360 SS (590-603-100) - Cub Cadet Compact Tractor Draft Control Parts Diagram

Compact Tractor

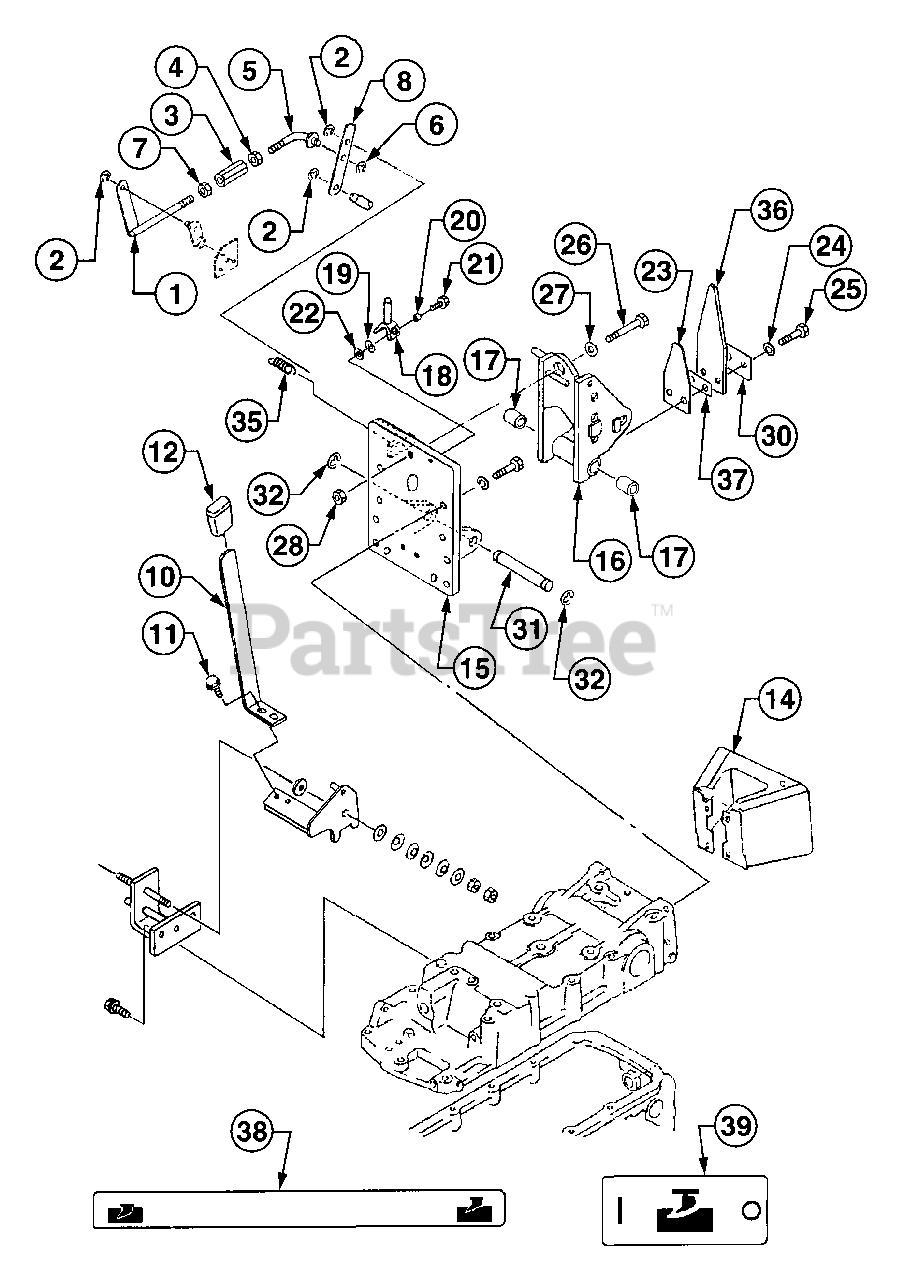

Draft Control Parts Diagram

  • Title

1

Cub Cadet MA-10312432001

Rod B

$

$

Not available

2

Cub Cadet MA-07420100600

Ring

$

$

Not available

3

Cub Cadet MA-19904867000

Joint

$

$

Not available

4

Cub Cadet MA-A3010108002

Nut

$

$

Not available

5

Cub Cadet MA-11762451000

Rod A

$

$

Not available

6

Cub Cadet MA-07420100600

Ring

$

$

Not available

7

Cub Cadet MA-A3012108002

Nut

$

$

Not available

8

Cub Cadet MA-10302435AG0

Plate

$

$

Not available

10

Cub Cadet MA-10312444AG0

Lever E

$

$

Not available

11

Cub Cadet MA-H1840108020

Bolt

$

$

Not available

12

Cub Cadet MA-11742449000

Grip

$16.99

$

Usually ships in 3-6 days

0

14

Cub Cadet MA-12189911AG0

Cover, PTO

$

$

Not available

15

Cub Cadet MA-12189907AG0

Bracket

$

$

Not available

16

Cub Cadet MA-10312448AG0

Bracket, Top Link

$

$

Not available

17

Cub Cadet MA-07961020300

Bushing

$

$

Not available

18

Cub Cadet MA-19852411AG0

Stopper

$

$

Not available

19

Cub Cadet MA-67474-00600

Washer, Wave

$

$

Not available

20

Cub Cadet MA-67700-26000

Collar

$

$

Not available

21

Cub Cadet MA-H1540108025

Bolt

$

$

Not available

22

Cub Cadet MA-07310101212

Liner

$

$

Not available

23

Cub Cadet MA-19852413AG0

Spring, Leaf

$

$

Not available

24

Cub Cadet MA-A3600101402

Washer

$

$

Not available

25

Cub Cadet MA-F1025-14050

Bolt

$

$

Not available

26

Cub Cadet MA-A0550116070

Bolt

$

$

Not available

27

Cub Cadet MA-03550161630

Washer

$

$

Not available

28

Cub Cadet MA-A3030116002

Nut

$

$

Not available

30

Cub Cadet MA-19852416AG0

Plate

$

$

Not available

31

Cub Cadet MA-10312451000

Pin

$

$

Not available

32

Cub Cadet MA-07420101500

Ring

$

$

Not available

35

Cub Cadet MA-10372455000

Spring

$

$

Not available

36

Cub Cadet MA-10312457AG0

Spring, Leaf

$

$

Not available

37

Cub Cadet MA-10312459000

Plate

$

$

Not available

38

Cub Cadet MA-19642782000

Label, Draft

$

$

Not available

39

Cub Cadet MA-19642785000

Label, Draft Lock

$

$

Not available
